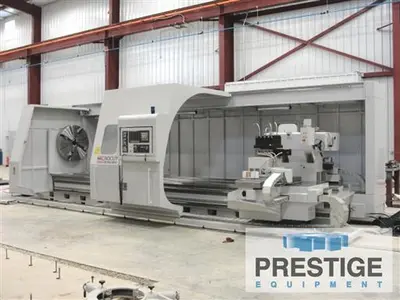

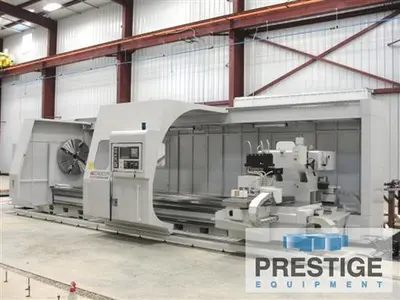

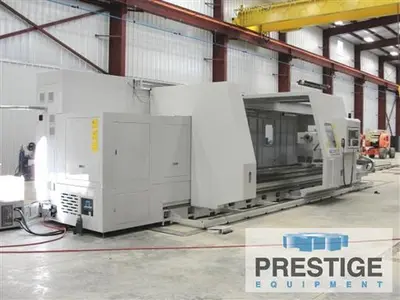

USED 2025 MICROCUT BNC 5000 X 12M

SPECIFICATIONS:
Swing Over Bed: 51.18"
Swing Over Cross Slide: 38.58"
Overall Bed Width: 51.18"
Maximum Turning Length: 472.44"
Max. Work Piece Weight w/ Tailstock: 22,000 Lbs
Spindle Speeds: 1-735 RPM
Spindle Hole Diameter: 6.02"
Spindle Nose Mount: A2-11
X-Axis Travel: 25.59"
Z-Axis Travel: 472.44"
Main Motor: 80 HP/100 HP
Quill Diameter: 9.44"
Quill Stroke: 9.05"
Quill Taper: #6 MT
X/Z Rapid Traverse: 393.70 IPM
Overall Dimensions: 647" x 134" x 106"
Machine Weight: 99,500 Lbs.

Equipped With:

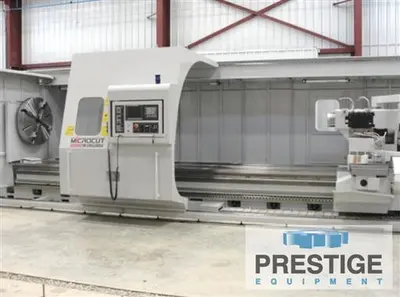

Fanuc OiTF Plus Control with 10.4" LCD & Manual Guide i

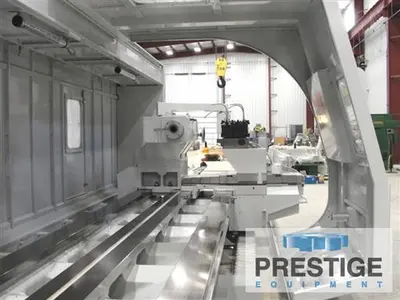

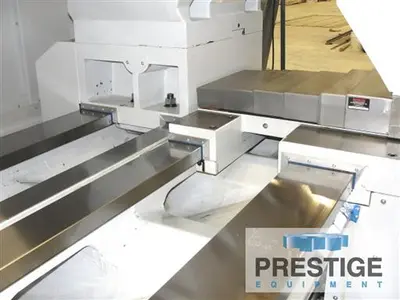

Four Wide Guide Ways in One Piece for Heavy Loading
Automatic Speed Changer
Chuck Sliding Guard with Interlock Device
Motorized Tailstock
Travelling Front Single Door Interlocked with carriage

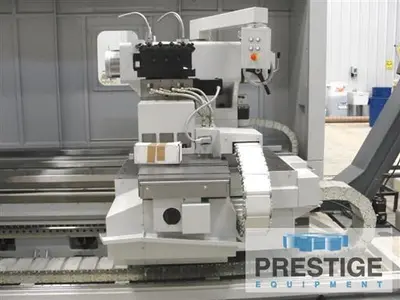

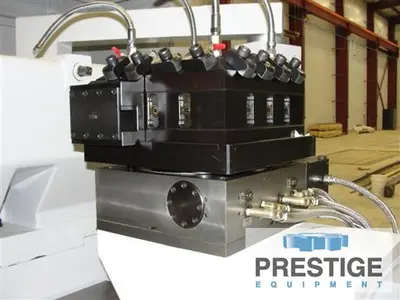

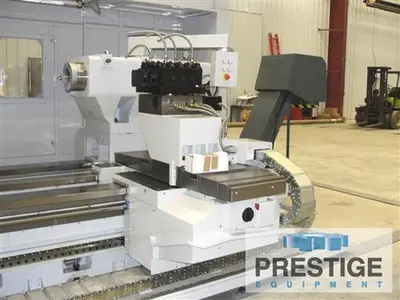

4-Position HP-350 Hydraulic Turret
Coolant System
Lubrication System
Low Voltage Circuit System
Linear Scales for Z Axis
1.96"-15.7" Steady Rest
17.96"-23.62" Steady Rest

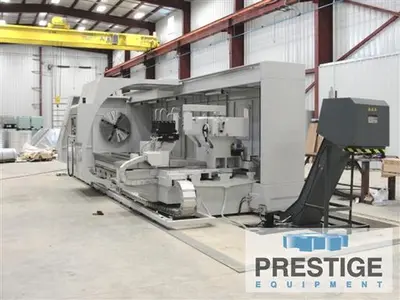

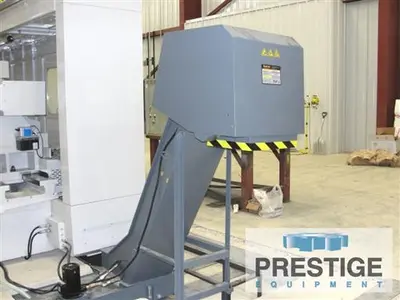

Full Length Chip Conveyor

NOTE:
Full 1-Year Parts on Machine
Full 2-Year Parts on CNC Control
**8 Month Lead Time from Order **

Features:
Fanuc OiTF Plus Control with 10.4" LCD & Manual Guide i
Four Wide Guide Ways in One Piece for Heavy Loading
Motorized Tailstock
4-Position HP-350 Hydraulic Turret
Linear Scales for Z Axis
1.96"-15.7" Steady Rest
17.96"-23.62" Steady Rest
Full Length Chip Conveyor
