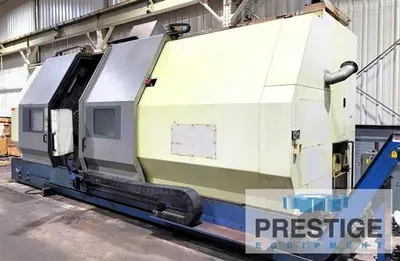

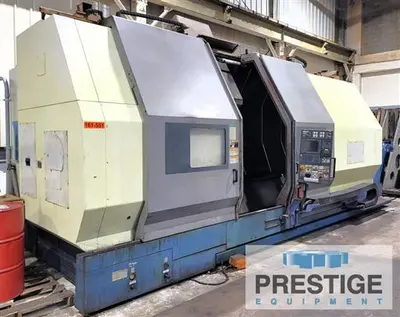

USED 2000 MORI SEIKI MT-4000B/2000
Overview
Specifications
| Swing | 37" | 939.8 mm |
|---|---|---|
| Machining Length | 81.5" | 2,070.1 mm |
| # Axis | 3 | 3 |
| Chuck Size | 23.5" | 596.9 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 1,500 RPM | 1,500 RPM |
| Turning Dia | 37" | 939.8 mm |
| Tailstock | 'Yes' | 'Yes' |
SPECIFICATION:
Max Swing Of Workpiece: 37.00"
Max Swing Over Cross Slide: 25.59"
Max Turning Dia.: 37.00"
Distance Between Centers: 103.1"
Max Turning Length: 81.5"
Spindle Speeds (2 Ranges): 15-1500 RPM
Main Motor: 50 HP / 40 HP
Y-Axis Travel: 11.8" + 5.9"
X-Axis Travel: 39.68"
Z-Axis Travel: 84.6"
B-Axis Rotation Range: +120/-105 Deg.
B-Axis Indexing Angle: 0.001 Degree
Milling Spindle Speeds: 6000 RPM
Milling Spindle Motor: 20 HP
Automatic Tool Changer: 120 ATC
Tooling Type: CAPTO C8
Equipped With:

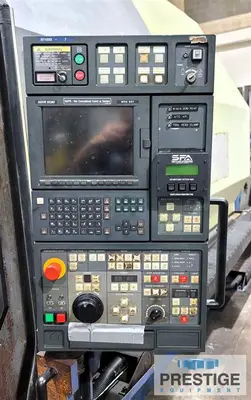

Mori Seiki MSG-501 CNC Control

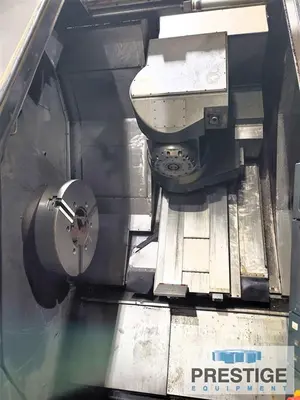

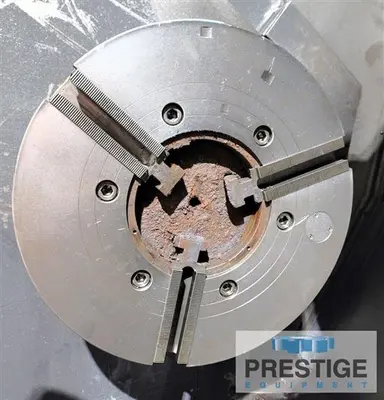

23.5" 3-Jaw Chuck

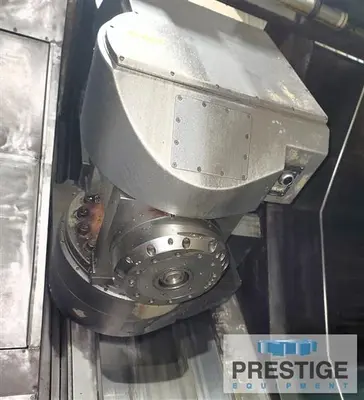

B-Axis Swivelling Milling Spindle
C-Axis Contouring Main Spindle

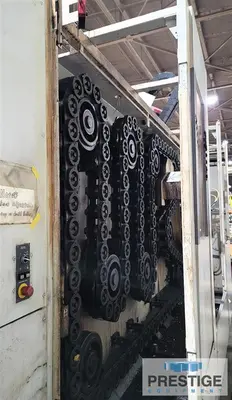

120-Position Automatic Tool Changer
Assorted Tooling
Tailstock

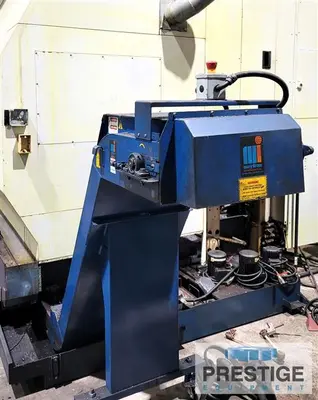

Chip Conveyor
Features:
Mori Seiki MSG-501 CNC Control
23.5" 3-Jaw Chuck
B-Axis Swivelling Milling Spindle
C-Axis Contouring Main Spindle
120-Position Automatic Tool Changer
