| Swing | 35.59" | 903.99 mm |
| Machining Length | 39.37" | 1,000 mm |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 5.12" | 130.05 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turning Dia | 22.05" | 560.07 mm |
| Tailstock | 'Yes' | 'Yes' |
CAPACITIES:
Swing Over Bed: 35.59"
Swing Over Cross Slide: 22.05"
Distance Between Centers: 39.37"
Spindle Nose: A2-11
Spindle Bore: 5.12"
Spindle Speeds: 85-2400 RPM
Mains Spindle Motore: 60 HP
Equipped With:

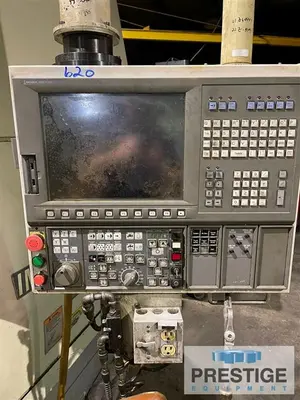

OSP-P200L CNC Control
24" Kitigawa 3-Jaw Chuck

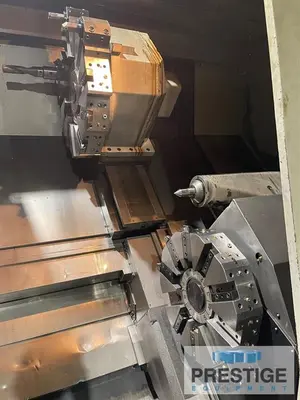

12 Position Upper Turret
10 Position Lower Turret
Hydraulic Tailstock
Chip Conveyor
HOURS:
Running Hours: 34,676
Operating Hours: 9,085
Cutting Hours: 8,446
NOTE:
Inspect In Plant Under Power
Features:
OSP-P200L CNC Control
24" Kitigawa 3-Jaw Chuck
12 Position Upper Turret
10 Position Lower Turret
Hydraulic Tailstock
