| Swing | 49.21" | 1,249.9 mm |
| Machining Length | 196.85" | 5,000 mm |
| # Axis | 2 | 2 |
| Chuck Size | 39.37" | 1,000 mm |
| Bar Capacity | 5.03" | 127.76 mm |
| Power | 54.6 hp | 40.7 kW |
| Max RPM | 630 RPM | 630 RPM |
| Live Tooling | No | No |
| Sub Spindle | No | No |
CAPACITY:
Maximum Swing Over Bedways: 49.21"
Maximum Swing Over Cross Slide: 36.61"
Distance Between Centers: 196.85"
Spindle Bore: 5.03"
Spindle Speeds: 4-630 RPM
Main Motor Power (380 Volts): 54.6 HP
Approximate Machine Dimensions: 330" x 140" x 83" H
Approximate Machine Weight: 23,100 Lbs
Equipped With:

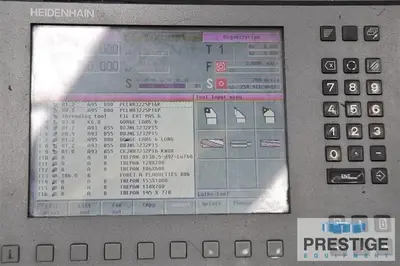

Heidenhain MANUALplus CNC Control

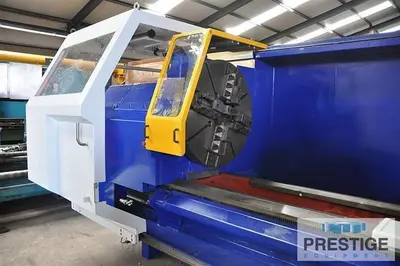

39.37" 4-Jaw Chuck

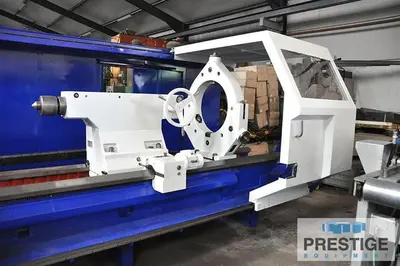

Steady Rest

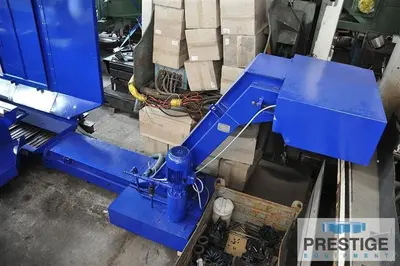

Chip Conveyor
Features:
Heidenhain MANUALplus CNC Control
39.37" 4-Jaw Chuck
Steady Rest
Chip Conveyor
