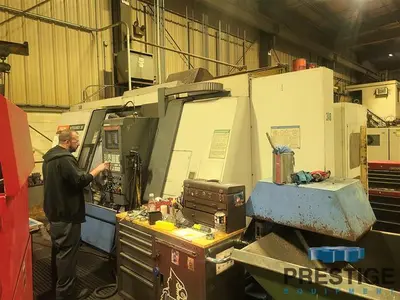

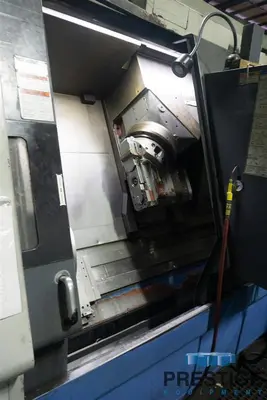

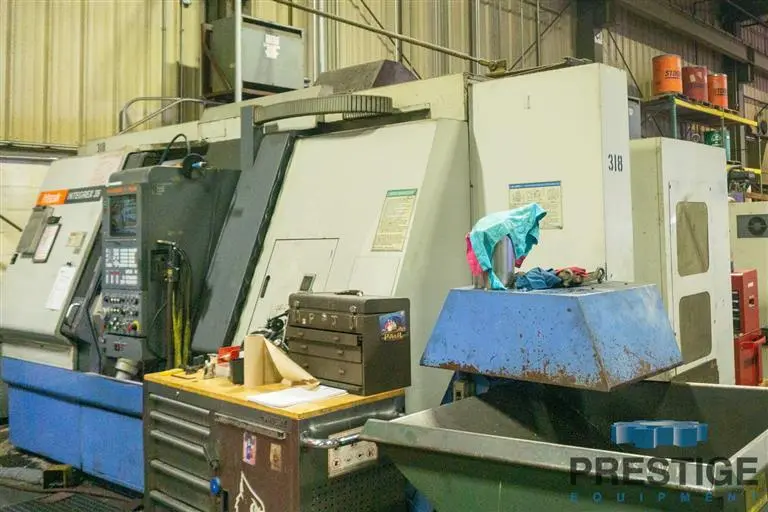

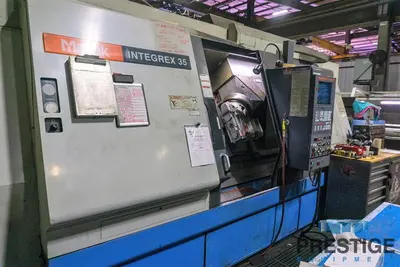

USED 1997 MAZAK INTEGREX 35
Overview
Specifications
| Swing | 22.5" | 571.5 mm |
|---|---|---|
| Machining Length | 60" | 1,524 mm |
| # Axis | 4 | 4 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3.46" | 87.884 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 22.5" | 571.5 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
CAPACITY:
Max. Swing Over Bed: 22.50"
Max. Machining Diameter: 22.50"
Swing Over Carriage: 18.50"
Max. Machining Length: 60"
Main Spindle Speeds: 35-3500 RPM
Spindle Bore Diameter: 3.46"
Spindle Nose: A2-8
Spindle Drive Motor: 40 HP/ 30 HP
C-Axis Spindle Indexing: 0.001 Degree
Rotary Tool Speeds: 15-6000 RPM
Live Spindle Motor: 10 HP
X-Axis Stroke: 17.75"
Y-Axis Stroke: 3.54"
Z-Axis Stroke: 62"
Rapid Traverse (X/Y/Z Axes): 472 IPM/ 393 IPM/ 708 IPM
Rotary Tool Shank: CAT #40
Tailstock Diameter: 3.94"
Tailstock Quill Stroke: 5.12"
Tailstock Spindle Center: MT #5
Tailstock Travel: 55.51
Equipped With:
Mazatrol T-Plus CNC Controls
12" 3-Jaw Hydraulic Chuck
20-Position Automatic Tool Changer
Coolant thru Spindle
Chip Conveyor
NOTE:
Inspect In Plant Under Power
Features:
Mazatrol T-Plus CNC Controls
Coolant Thru Spindle
20-Position Automatic Tool Changer
