NEW SYLVANIA LU400/MULTI-KIT

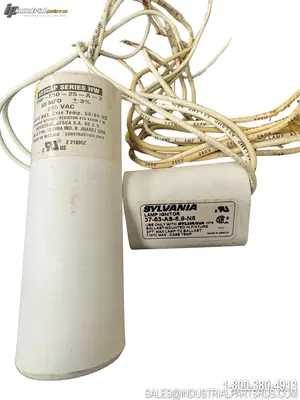

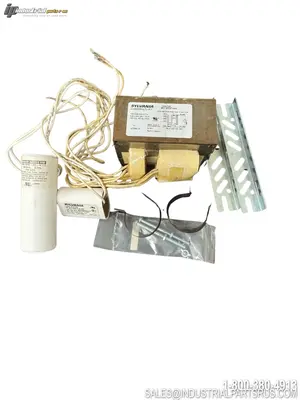

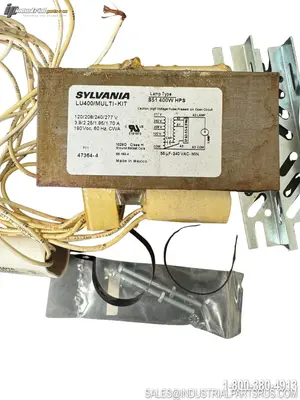

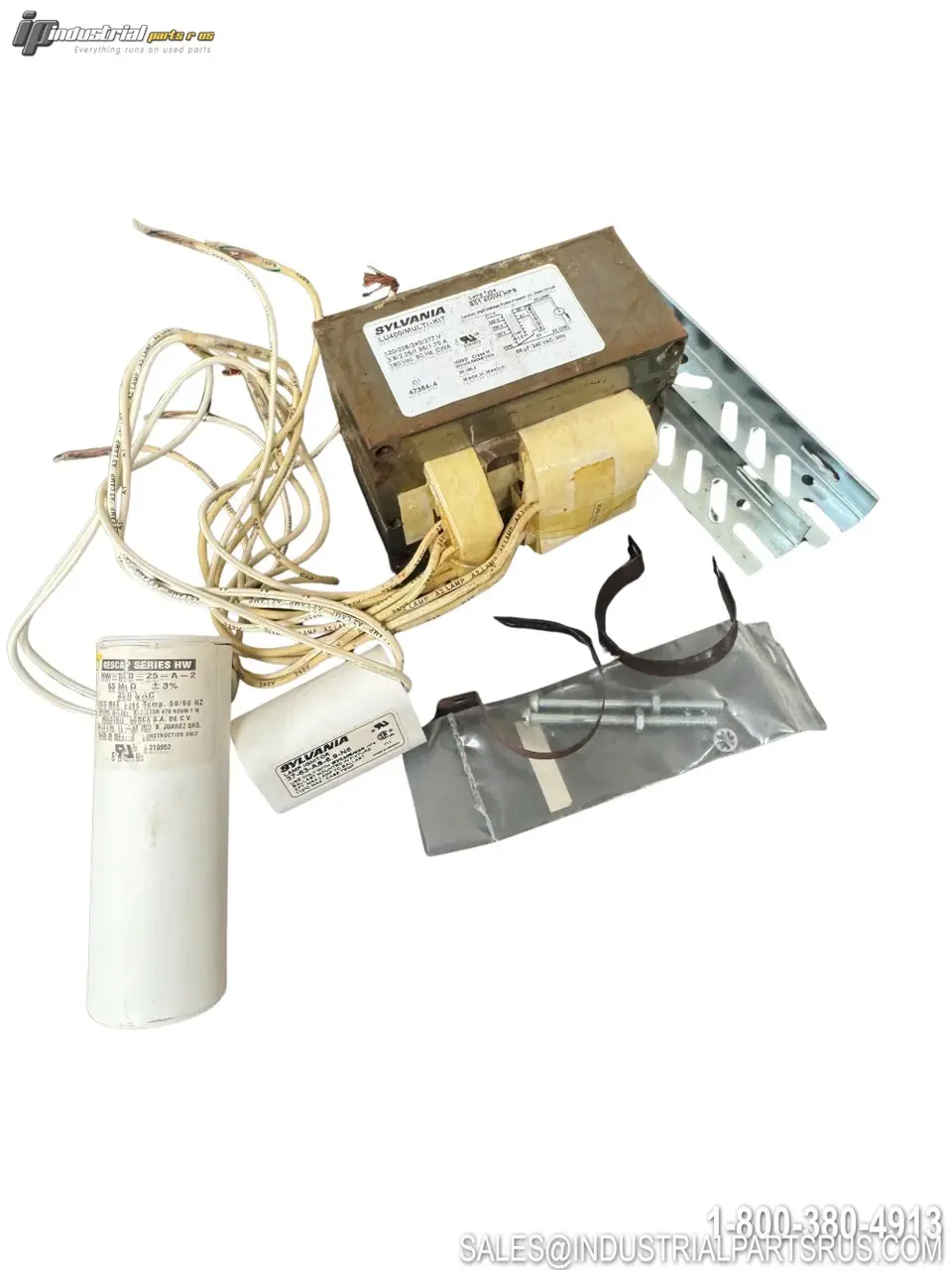

The Sylvania LU400/Multi-kit (Catalog No. 47364) is a magnetic core and coil High Pressure Sodium (HPS) ballast kit designed to operate one 400-watt S51 HPS lamp. The kit includes the core and coil ballast, a dry film capacitor, and a pulse ignitor, and supports four input voltages (120V, 208V, 240V, and 277V) via a quad-tap configuration. It features an HX-HPF (High Power Factor) circuit type and a pulse ignitor starting method, making it compatible with a wide range of commercial and industrial HID lighting fixtures.
Specification
Value
Brand
Sylvania (Osram Sylvania / Ledvance)
Model / Order Code
LU400/Multi-kit
Catalog Number
47364
Ballast Type
Magnetic Core & Coil HID Ballast Kit
Light Source / Lamp Type
High Pressure Sodium (HPS)
Wattage
400W
ANSI Code
S51
Input Voltage (Multi-Tap)
120V / 208V / 240V / 277V
Number of Taps
4-Tap (Quad Tap)
Amperage Rating
3.9A / 2.25A / 1.95A / 1.70A (120/208/240/277V)
Circuit Type
HX-HPF (High Power Factor CWA)
Starting Method
Pulse Ignitor
Frequency
60 Hz
Kit Contents
Core & Coil Ballast, Dry Film Capacitor, Pulse Ignitor
Capacitor Diameter
1.75 in
Minimum Starting Temperature
-40°F / -40°C
Dimensions (L x W x H)
4.75 in x 4.25 in x 4.00 in
Weight
9.6 lbs
Lamps Operated
1 x 400W S51 HPS Lamp
HS Tariff Code
8504.10.0000
Case Quantity
1
