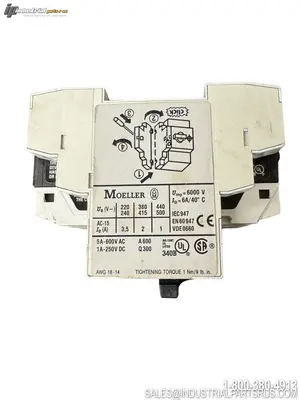

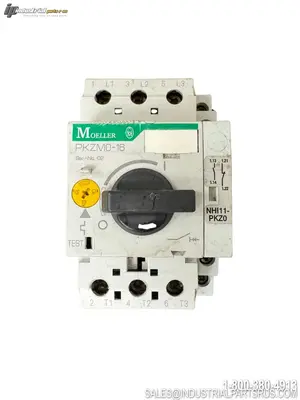

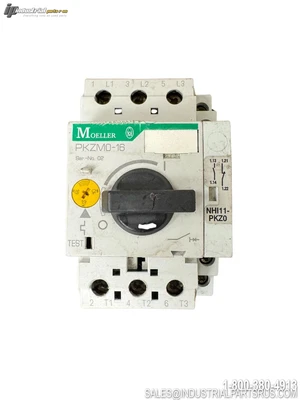

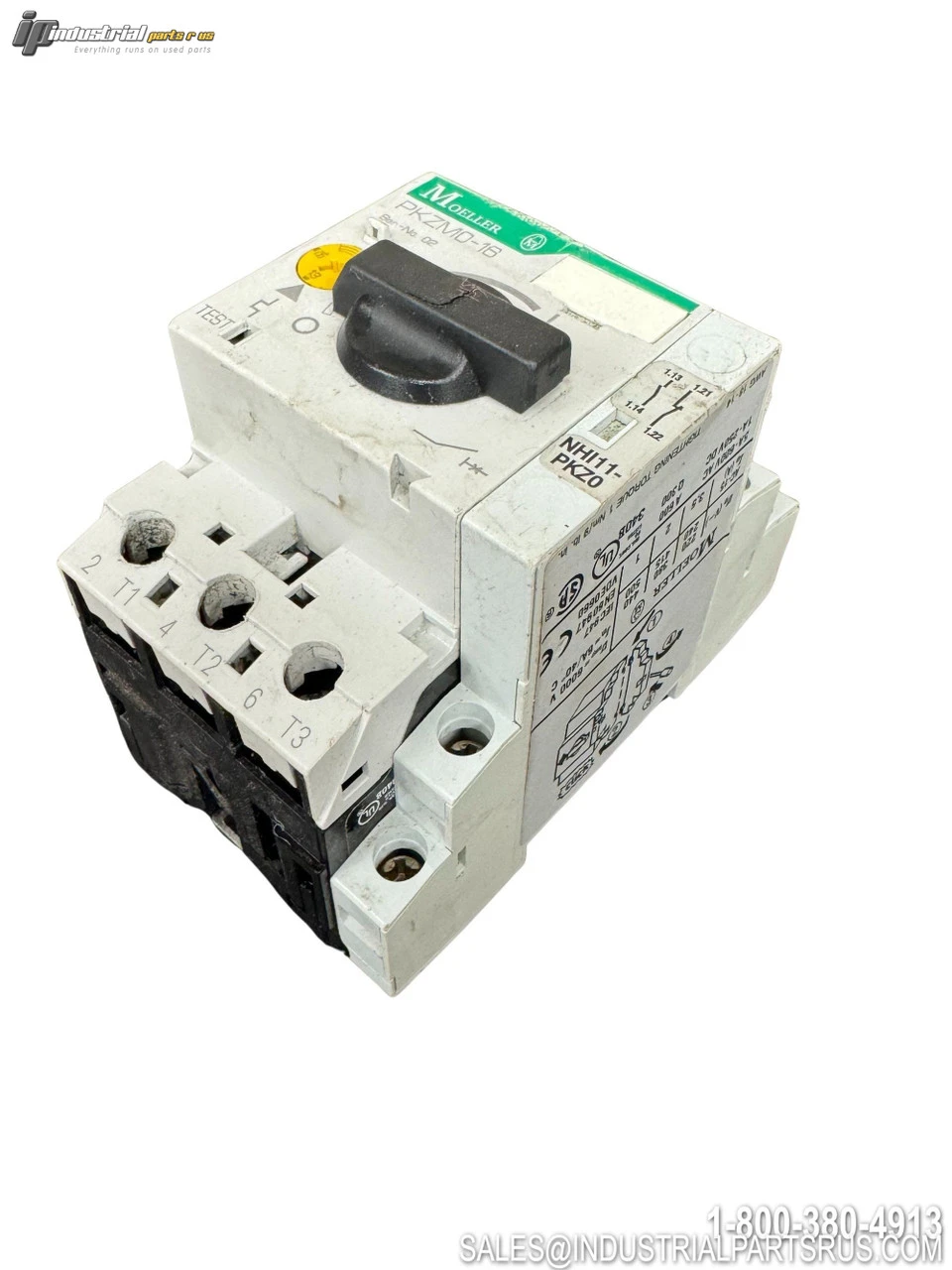

USED MOELLER PKZMO-16

The Moeller PKZMO-16 (PKZM0-16) is a three-pole thermal-magnetic motor protective circuit breaker (MPCB) from the Moeller PKZM0 series, now produced by Eaton. It provides integrated overload and short-circuit protection in a single compact unit, featuring an adjustable bimetal thermal trip range of 10–16A and a fixed magnetic trip response of 224A. The device mounts on a standard 35mm DIN rail, uses screw-clamp terminals, and is compatible with DILM frame-size B contactors for remote-control combination starter configurations.
Specification
Value
Brand
Moeller (Eaton Moeller)
Model / Part Number
PKZMO-16 (PKZM0-16)
Article Number
046938
Product Series
PKZM0
Product Type
Thermal-Magnetic Motor Protective Circuit Breaker (MPCB)
Number of Poles
3
Current Setting Range (Overload)
10 – 16 A
Magnetic Trip (Fixed)
224 A (14× Iu)
Voltage Rating (Ue)
690V AC
Rated Impulse Voltage (Uimp)
6000V
Rated Active Power (kW @ 220-240V AC)
4 kW (5 HP at 230V)
Rated Active Power (kW @ 380-415V AC)
7.5 kW (10 HP at 460V)
Short Circuit Breaking Capacity (Icu @ 230V)
50 kA
Short Circuit Breaking Capacity (Icu @ 400V)
50 kA
Short Circuit Breaking Capacity (@ 600V AC)
10 kA
Tripping Class
Class 10
Trip Type
Thermal-Magnetic (Bimetal overload + magnetic short-circuit)
Frequency
50/60 Hz
IP Rating
IP20
Mounting Type
DIN Rail (35mm)
Connection Type
Screw-clamp terminals
Wire Range
1–6 mm² / AWG 14–AWG 10 (Cu 75°C)
Tightening Torque
1.8 Nm / 16 lb-in
Max. Operating Frequency
40 operations/hour
Operating Temperature Range
-25°C to +55°C
Dimensions (H × W × D)
93 mm × 45 mm × 77 mm
Weight
0.292 kg
Color
Black/Grey
Operator Type
Rotary ON/OFF handle
Phase Loss / Imbalance Protection
Yes
Ambient Temperature Compensation
Yes
Compatible Contactor
DILM Frame Size B
Standards / Certifications
IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1-14, VDE 0660, UL 508, CE Marking, NEC 430-53, CEC Part 1 Rule 28-206
UL Listing Type
Type E Self-Protected Motor Controller
We warranty all items for 30 days from date of purchase.
