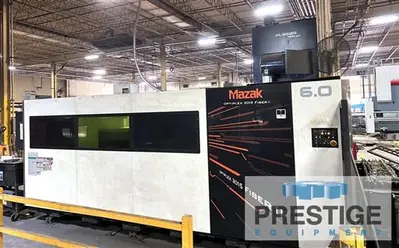

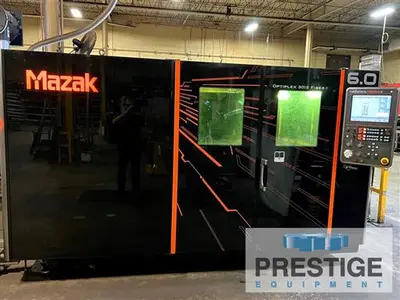

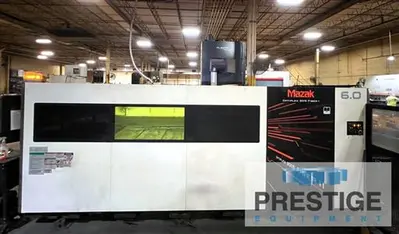

USED 2016 MAZAK OPTIPLEX 3015 FIBER III
Overview
Specifications
| Sheet-W | 60.04" | 1,525 mm |
|---|---|---|
| Sheet-L | 120.08" | 3,050 mm |
| Wattage | 6000 w | 6,000 W |
| IPM | 4724 | 4724 |
| X-Axis | 122.05" | 3,100.1 mm |
| Y-Axis | 62.8" | 1,595.1 mm |
| Z-Axis | 4.33" | 109.98 mm |
CAPACITY:
Maximum Power.......................... 6000 Watts: 6000 Watts
Maximum Sheet Size: 60.04" x 120.08"
X-Axis Travel: 122.05"
Y-Axis Travel: 62.80"
Z-Axis Travel: 4.33"
Work Table Height: 35.43"
Max. Cutting Thickness (Mild Steel): 1.00"
Max. Cutting Thickness (Stainless): 1.00"
Max. Cutting Thickness (Aluminum): .750"
Maximum Load Capacity: 2,050 Lbs.
Rapid Travels (X/Y Axis): 4,724 IPM
Installation Dimensions: 394" x 240"
Machine Unit Dimensions: 334" x 137" x 79"
Machine Weight: 33,069 Lbs.
Equipped With:

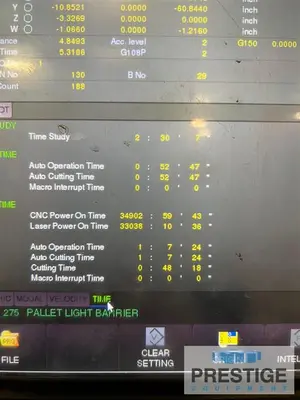

MAZATROL PREview 3 CNC Control with 19" Color LCD Touch Monitor
6 KW IPG Photonics YLS-6000 Resonator
Helical Rack and Pinion Drives on X and Y Axes
MCT-2.0 Upgraded Cutting Head
Auto Nozzle Changer and Cleaner

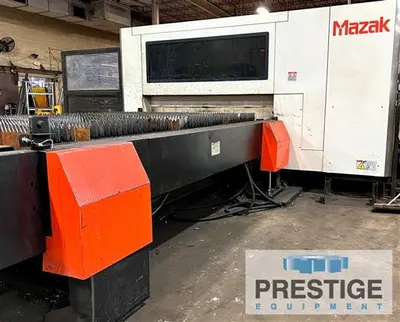

Automatic Dual Pallet Changer
Chiller
Robovent Plaser Dust Collector
NOTE:
Inspect in Plant Under Power
Features:
MAZATROL PREview 3 64 CNC Control with 19" LCD Touch Monitor
MCT-2.0 Upgraded Cutting Head
6 KW IPG Photonics YLS-6000 Resonator
Helical Rack and Pinion Drives on X and Y Axes
