| Sheet-W | 49.2" | 1,249.7 mm |
| Sheet-L | 49.2" | 1,249.7 mm |
| Wattage | 2500 w | 2,500 W |
| X-Axis | 50" | 1,270 mm |
| Y-Axis | 50" | 1,270 mm |
| Z-Axis | 16.5" | 419.1 mm |
CAPACITY:
Rated Laser Output: 2500 Watts
Maximum Work Piece Size: 49.2" x 49.2"
X-Axis Stroke: 50"
Y-Axis Stroke: 50"
Z-Axis Stroke: 16.5"
A-Axis Stroke: +/- 360 Deg.
B-Axis Stroke: +/- 135 Deg.
Equipped With:

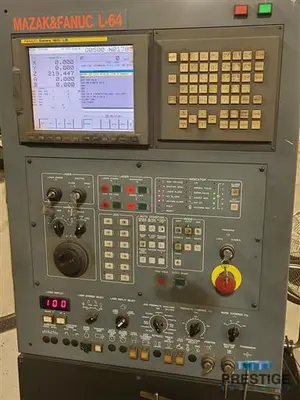

Mazak/Fanuc L64 Series CNC Control
2500 Watt Panasonic Resonator
6-Axis Non-Contact Cutting Head
Rotary Axis for Cutting Tube
Chiller
HOURS: 37,249
NOTE:
Inspect in Plant Under Power
