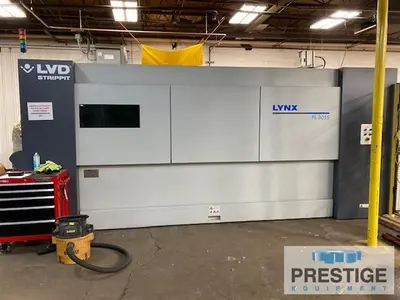

USED 2018 LVD STRIPPIT LYNX 3015

CAPACITY:
Laser Output: 2 KW
X-Axis Working Range: 120"
Y-Axis Working Range: 60"
Max. Material Thickness - Mild Steel: 1/2"
Max. Material Thickness - Stainless: 1/4"
Max. Material Thickness - Aluminum: 5/16"
Maximum Sheet Weight on Table: 1,598 Lbs.
Approximate Overall Dimensions......... 35' x 20' x 8': 35' x 20' x 8'
Approximate Weight: 27,558 Lbs.

Equipped With:

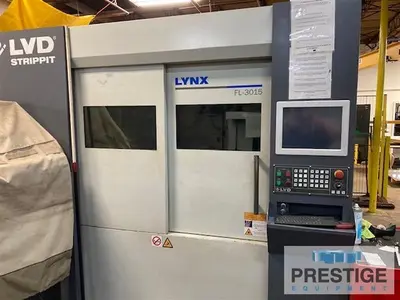

Siemens L-CNC With 15" Touch Screen
Control memory capacity: 1 GB RAM 2 X 4 GB Flash

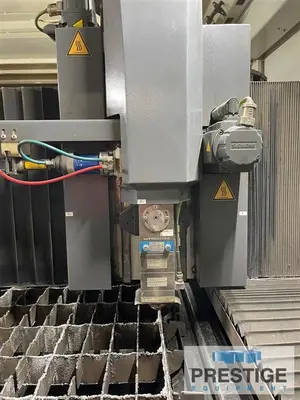

Manual focus cutting head Precitec light cutter with 200 mm lens
Manual safety door and enclosure

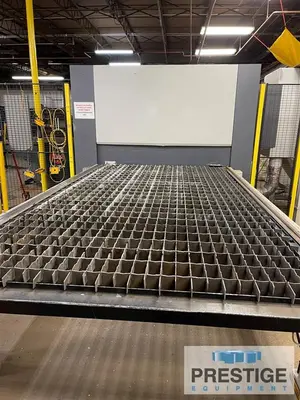

Dual Pallet Changer

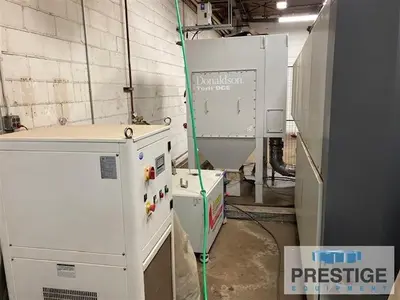

Chiller
Dust Collector
(1) 10lb Firetrace ABC Dry Chemical suppression system for Torit 2-4 unit

NOTE:
Inspect In Plant Under Power

Features:
IPG 2 KW Laser Resonator
Siemens L-CNC With 15" Touch Screen
Dust Collector
Chiller
