| Wattage | 3000000 w | 3,000,000 W |
| X-Axis | 157" | 3,987.8 mm |
| Y-Axis | 78" | 1,981.2 mm |
CAPACITY:
Laser Output: 3 KW
X-Axis Working Range: 157"
Y-Axis Working Range: 78"
Approximate Dimensions: 439" x 170" x 92"
Approximate Weight: 30,150 Lbs.
Equipped With:
Beckhoff CNC Control With 15" Touch Screen (Upgraded 2018)

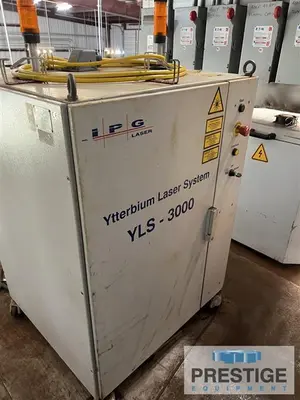

3 KW IPG YLS Resonator

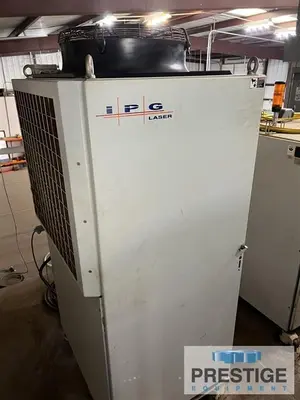

IPG Chiller Unit
Precitec HPPSL Plus Straight Cutting Head (Upgraded 2018)
125 mm Cutting Lens and Collimination Lens

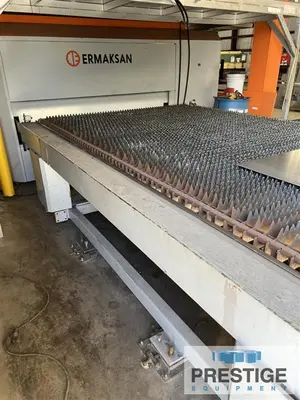

Automatic Pallet Changer
Dust Collector with New Filters
Protective Shield Covers around the machine
Working Camera Installed Inside of Machine
NOTES:
Inspect in Plant Under Power
Features:
Beckhoff CNC Control With 15" Touch Screen
3 KW IPG YLS Resonator
Precitec HPPSL Plus Straight Cutting Head
Automatic Pallet Changer
Working Camera Installed Inside of Machine
