USED 2004 IOWA PRECISION REC-TS-60, SLEAR 1

Specifications:
Manufacturer/Year: Iowa Precision / 2004
Model: Model # REC-TS-60, Slear 1
Materials: CRS, Alum., Galv.
Min./Max. Coil Width: 6 - 60"
Thickness Range: .015 - .064"
Max. Shear: 45,000 PSI
Max Yield: 45,000 PSI
Max Coil Weight: 20,000 lbs
Coil I.D. : 20 - 24" (nominal)
Max Coil O.D. : 64"
Slitting Capacity: 5 cuts of .060" and 6 cuts of .045"
Minimum Slit Width: 3"
Line Direction: Right to Left
Stacker Length: 1 - 12'
Maximum Bundle: 18" x 10,000 lb @ 12'
Mode of Operation: Front Loop
Line Speed: 20-120 fpm
Required Area: 20' x 70'
Required Power: 121 amp @ 230v, 3-phase, 60Hz FLA, recommend 160A)
Equipment List:

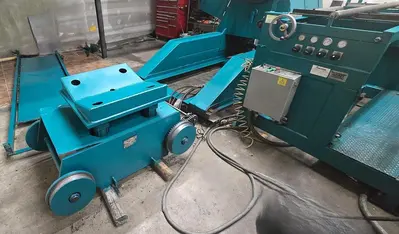

Entry Coil Car: Floor-mounted type; powered lift and traverse for loading coils onto uncoiler mandrel.

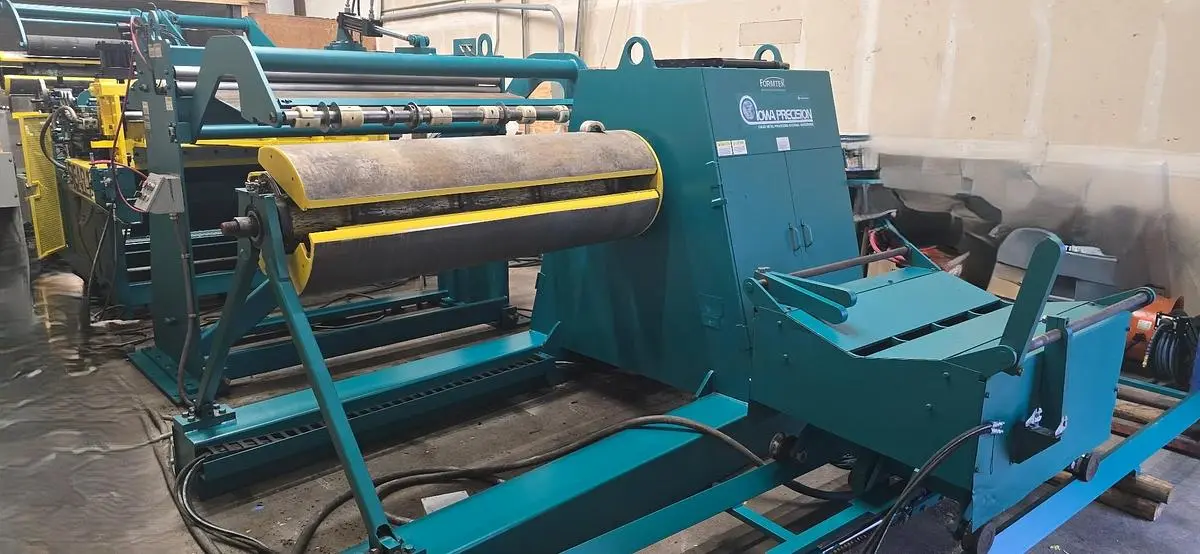

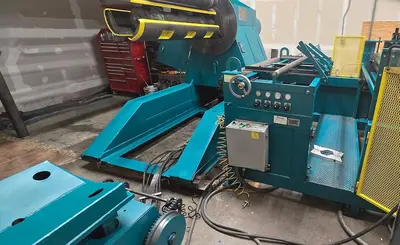

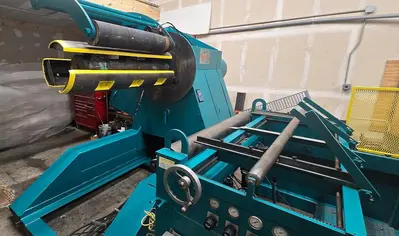

Uncoiler: Mandrel type; powered expansion; Feed-up drive; Hold-down with powered snubber; Loop control w/ dancer arm; Self-contained hyd- draulic unit.

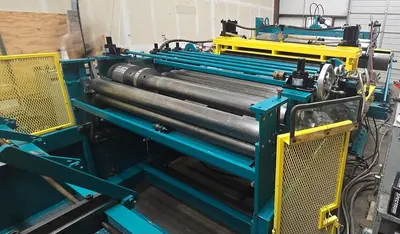

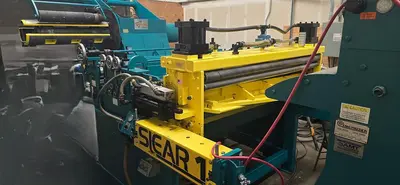

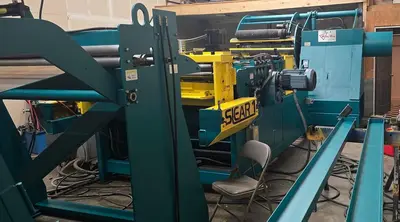

SLEAR 1 Unit: Powered pinch rolls (entry, intermediate, exit); hub-type head with 5" arbor and 15 slitter knives; 6-roll flattener (3/3); down-cut shear on traversing track with single-rake blade; spare shear blade set.
Tension Stand: Free standing, 5' width, with dual idler roll configuration, w/ pneumatic separator arms, and precision scale mounting. Pressure adjustable braking system (300-1500 PSI).
Exit Coil Car: Floor-mounted, Powered lift and traverse functions; single
or dual cylinder hydraulic actuation; Travel range approx. 80"; adjustable separator arms; automatic & manual controls.
Rewinder: Hydraulic expansion recoiler mandrel, 5' x 50" capacity, rated for 20k-22k lb coils. Self-centering mandrel expansion, oil-cooled hydraulic drive with remote console controls, adjustable tension relief, auto-rewind.
Electronics: Main operator's console with Allen-Bradley PLC and touch screen; auxiliary control stations for coil handling and tension stand; AC/DC cabinet with transformers and electrical disconnects; remote-mounted control console for system operation.
