| Table Dia | 66" | 1,676.4 mm |
| Swing | 82" | 2,082.8 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 3,600 RPM | 3,600 RPM |
CAPACITY:
Diameter Of Table: 66"
Maximum Swing: 82"
Maximum Height Under Rail: 48"
Size Of Table Magnets (6): 6" x 18"
Stroke Of Swiveling Rams: 22"
Stroke Of Swiveling Wheel Slide: 8"
Spindle Speeds: 1800 - 3600 RPM
Main Motor: 10 HP DC
Approx. Overall Dimensions: 180" W x 136" D x 135" H
Equipped With:

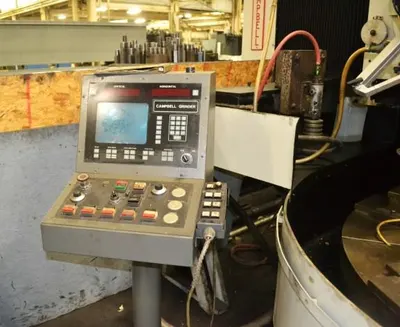

Campbell 4-Axis CNC Control

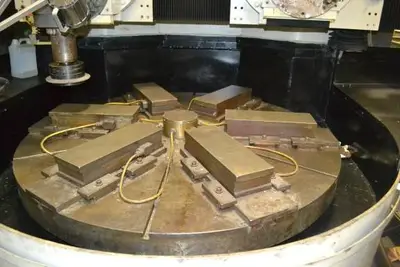

66" T-Slotted Table With (6) Magnets

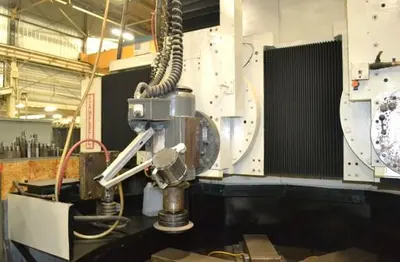

(2) Pope Grinding Spindles, 7 HP & 7.5 HP
NOTE:
Inspect In Facility, Great Retrofit Candidate!
