| Chuck Size | 42" | 1,066.8 mm |
| Horz/Vert | Vert | Vert |
| Power | 50 hp | 37.3 kW |
| Swing | 48" | 1,219.2 mm |
| Under Wheel | 18" | 457.2 mm |
| Grinding Wheel Dia. | 22" | 558.8 mm |
CAPACITIES:
Swing Inside Splash Guards: 48"
Diameter of Magnetic Chuck: 42"
Chuck Center Hole Diameter............. 2": 2"
Height Under New Wheel: 18"
Diameter of Wheel Chuck: 22"
Main Motor: 40 HP
Grinding Spindle Speed: 720 RPM
Chuck Rotation Speeds: 6 to 33 RPM
Automatic Downfeeds: .004 - 0.080 IPM
Floor Space: 142" x 100"
Machine Height: 109"
Approximate Machine Weight: 14,550 Lbs.
Equipped With:

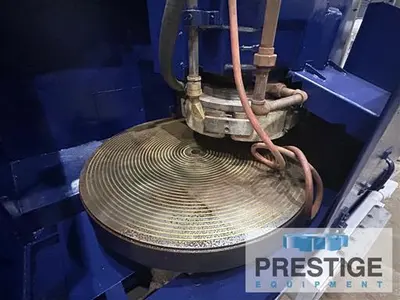

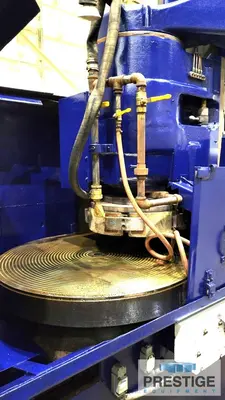

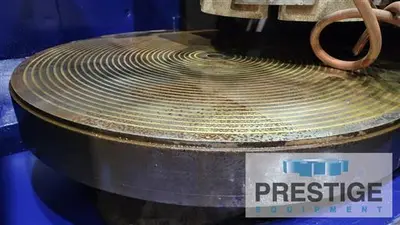

42" Magnetic Chuck
Neutrofier II Magnetic Chuck Control
22" Segmented Wheel Chuck
40 HP Main Motor
440/3/60 Electrics
Features:
42" Magnetic Chuck
Neutrofier II Magnetic Chuck Control
48" Swing Inside Guards
40 HP Main Motor
