| Table-W | 31.5" | 800.1 mm |
| Table-L | 120" | 3,048 mm |
| Horz/Vert | 'Horz' | 'Horz' |
| Power | 30 hp | 22.4 kW |
| Grinding Wheel Width | 3.9" | 99.06 mm |
| Grinding Wheel Dia. | 20" | 508 mm |
SPECIFICATIONS:
Maximum Grinding Width: 31.5"
Maximum Grinding Length: 120"
Max. Distance Under Wheel: 31.3"
Total Chuck Size (3 Sections): 31.875" x 120"
Grinding Wheel Size: 20" x 3.9" x 8"
Grinding Wheel Speed: 1200 RPM
Grinding Spindle Motor: 30 HP
Vertical Spindle Stroke: 7.87"
Vertical Spindle Swivel: 60 Degrees
Vertical Spindle Motor: 3 HP
Equipped With:

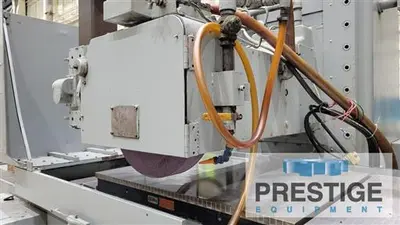

Horizontal Grinding Spindle

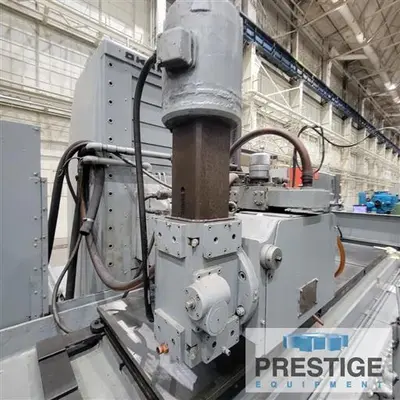

Vertical Swiveling Grinding Spindle
(3) 39.3" x 31.875" Magnetic Chucks
Automatic Incremental Downfeed
Over the Wheel Auto Dresser

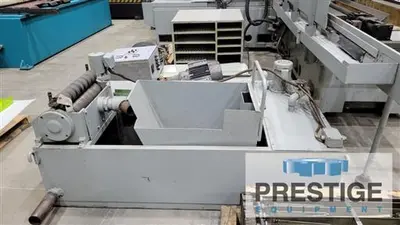

Magnetic Separator
NOTE:

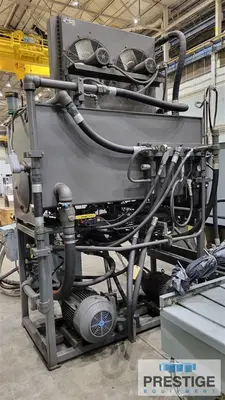

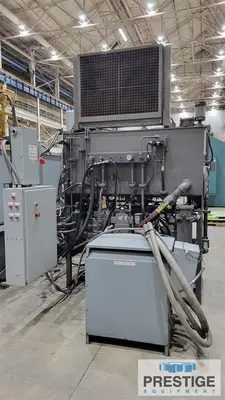

All Hydraulics Rebuilt in 2010
Features:
Horizontal Grinding Spindle
Vertical Swiveling Grinding Spindle
(3) 39.3" x 31.875" Magnetic Chucks
Wheel Dresser
Magnetic Separator
