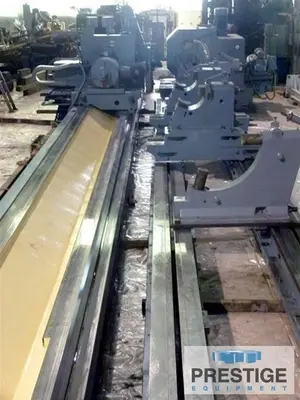

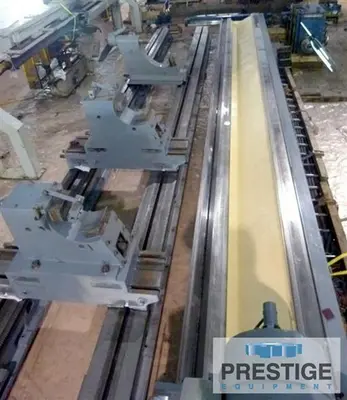

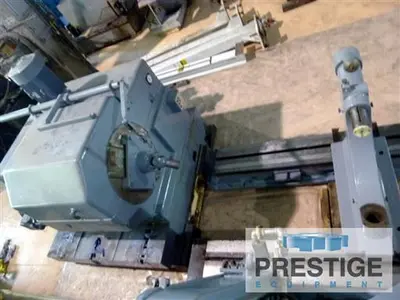

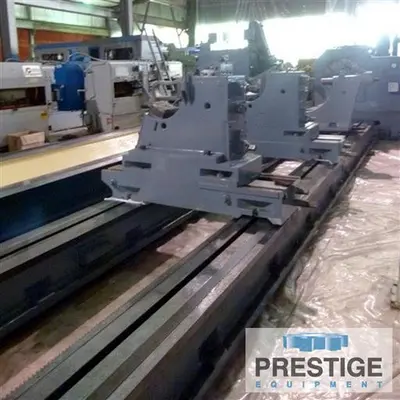

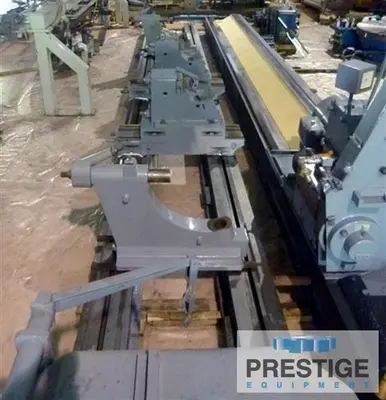

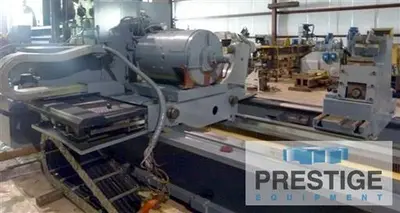

USED 1981 WALDRICH WST IV H80 X 12000

Specifications:
Maximum Swing, Altered Foundation: 98"
Maximum Swing, Standard Foundation: 78"
DISTANCE BETWEEN CENTERS: 472.40"
MAXIMUM WORKPIECE WEIGHT: 176000 lbs
WHEEL OD MAXIMUM: 32.00"
WHEEL WIDTH MAXIMUM: 4.00"
WHEEL ID: 12.00"
WHEELHEAD ANGLE: 90 DEGREES TO WORKPIECE AXIS
WHEEL SPINDLE POWER: 27 - 59/59 HP
WHEEL DRESSER: BED MOUNTED ROLL
WHEELHEAD TRAVEL: 25.60"
TABLE TRAVEL: (WHEEL HEAD TRAVEL) 488.40"
WHEEL SPINDLE SPEED: 450 - 1800 RPM Infinitely Variable
WORKHEAD POWER: 1.9 - 59/59 HP 1.4 - 44/44 Kw.
WORKHEAD SPEED: .5 - 300 RPM

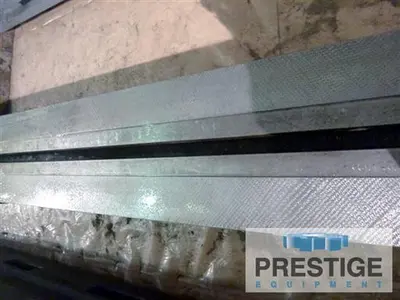

WAYS: CAST IRON FULL HYDROSTATIC
SLUDGE CONVEYOR: NONE
COOLANT: YES
FILTRATION SYSTEM: COMBINATION 2 CARTRIDGE AND FABRIC FILTER
WAY COVERS: METAL TELESCOPIC
POWER 3PHASE: 200 - 500 Volts, 50-60 Hz

Equipped With:
WALDRICH SIEGEN 4" WIDTH ROLL BELT
GRINDING ATTACHMENT, ROLL CAMBERING
CROWNING, RANGE OF TABLE SETTING FOR CAMBER
CONVEX: .0005 - .292 MM, RANGE OF TABLE SETTING
FOR CAMBER / CONVEX / AND CONCAVE .0004 - .1024
mm, RANGE OF TABLE SETTING FOR CAMBER BASED ON
RADIUS: .0039 - .1496, 2 - 2 JAW STEADY RESTS
DIAMETER RANGE 7.88 - 20"
CROSS ADJUSTMENT OF STEADY RESTS 23.6"
MULTIPLE WHEEL MOUNTS AND VARIOUS STEADY REST
SPACER PLATES FOR DIFFERENT DIAMETERS.
MACHINE DIMENSIONS (LxWxH): 732" x 219" x 91"
WEIGHT: 134000 lbs. 60800 Kg.
CONDITION: EXCELLENT
* The larger diameter capacity is possible by simply altering the foundation
height of the workpiece bed sections.

Features:
WALDRICH SIEGEN 4" WIDTH ROLL BELT
GRINDING ATTACHMENT, ROLL CAMBERING
CROWNING, RANGE OF TABLE SETTING FOR CAMBER
CONVEX: .0005 - .292 MM, RANGE OF TABLE SETTING
FOR CAMBER / CONVEX / AND CONCAVE .0004 - .1024
mm, RANGE OF TABLE SETTING FOR CAMBER BASED ON
RADIUS: .0039 - .1496, 2 - 2 JAW STEADY RESTS
DIAMETER RANGE 7.88 - 20"
CROSS ADJUSTMENT OF STEADY RESTS 23.6"
MULTIPLE WHEEL MOUNTS AND VARIOUS STEADY REST
SPACER PLATES FOR DIFFERENT DIAMETERS.
