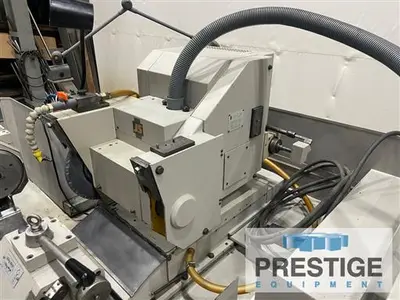

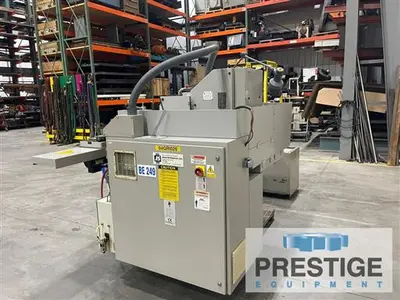

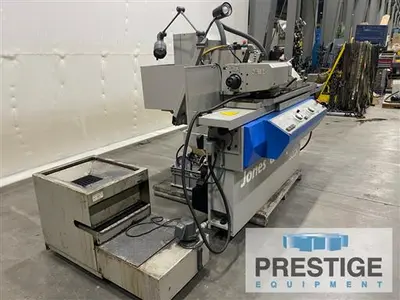

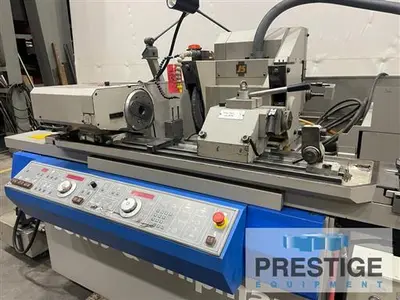

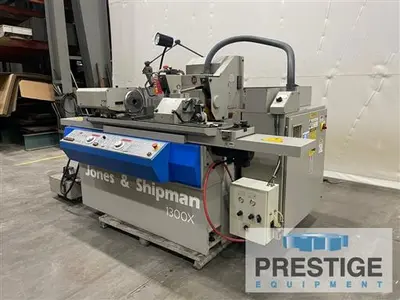

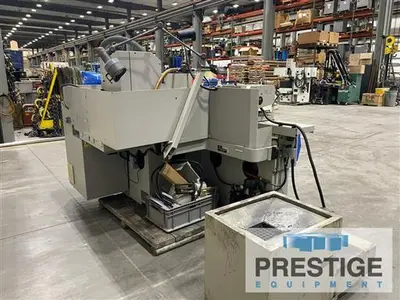

USED 1998 JONES & SHIPMAN 1300X

CAPACITY:
Max. Diameter Ground with 14" Wheel: 12"
Max. Diameter Ground with 12" Wheel: 14"
Total Infeed: 9.6"
Max. Grinding Length Between Centers: 27"
Maximum Work Weight Between Centers.... 220 LBS: 220 LBS
Wheelhead Swivel: 190/45 Deg
External Grinding Wheel Size, Left: 14" x 2" x 5"
External Grinding Wheel Size, Right: 12" x 1" x 5"
External Wheelhead Motor: 5.5 HP
Internal Wheel Size: 0.75"-1.5"
Internal Wheel Speeds: 16500, 24000, 10500 RPM
Internal Wheel Motor: 3 HP
Max. Traverse Speed: 197 IPM
Table Swivel, Clockwise: 16 Degrees
Table Swivel, Counter-Clockwise: 18 Degrees
Workhead Speed Range: 1-660 RPM

Equipped With:

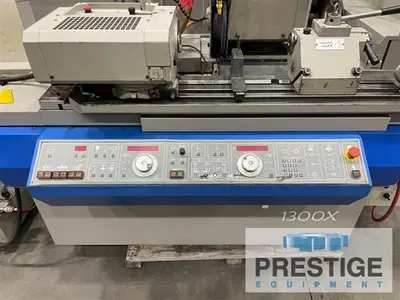

Microprocessor Control
ID Grinding Spindle
Taper Grinding
Tailstock
Steady Rest
Coolant

LOCATION:
Under Power In Michigan

Features:
Microprocessor Control
ID Grinding Spindle
Dual Grinding Wheels
Taper Grinding
Tailstock
Steady Rest
Coolant
