USED 2024 OZ MACHINE GARNET MIMI

2024 OZ Machine GARNET Mini 3-axis NC compact profile machining center designed for automated milling, drilling, slotting, lock, handle and hinge preparation on aluminum and PVC profiles with three independent high-speed spindles and 10″ touchscreen control.
Manufacturer OZ Machine / Özçelik Machinery
Model GARNET Mini
Year 2024
Machine Type 3-Axis NC Compact Profile Machining Center
Primary Materials Aluminum and PVC / vinyl profiles
Axes 3 Axis
X-Axis Machining Travel 350 mm / 13.78″
Y-Axis Machining Travel 150 mm / 5.91″
Z-Axis Machining Travel 120 mm / 4.72″
X-Axis Positioning Speed 30 m/min
Y-Axis Positioning Speed 30 m/min
Z-Axis Positioning Speed 30 m/min

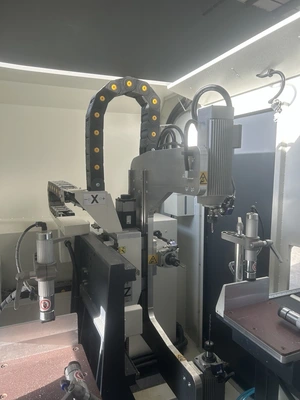

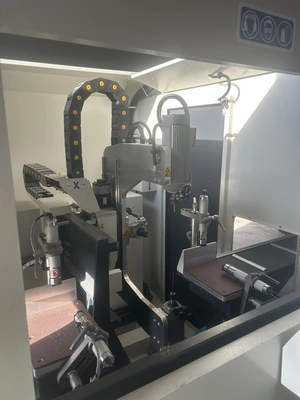

Spindles 3 independent spindle motors
Spindle Arrangement Top, bottom and side profile machining
Maximum Spindle Speed 18,000 RPM
Spindle Power Up to 3 kW
Tool Holder ER20
Maximum Tool Diameter Approx. 13 mm
Control 10″ HMI touchscreen
Programming Parametric profile-machining programs
Data Transfer USB
Profile Positioning Right & left profile gauges
Positioning Aid Laser marking
Clamping 4 pneumatic clamps – 2 top / 2 front
Cooling System Automatic machining/tool cooling
Air Pressure 6–8 bar
Air Consumption 40 L/min
Machine Voltage 400V, 3 Phase
Frequency 50–60 Hz
Maximum Rated Power 12 kW per current manufacturer literature
Approx. Net Weight 800 kg / 1,764 lb
Approx. Gross Weight 1,000 kg / 2,205 lb
Approx. Dimensions 2,900 × 2,115 × 2,045 mm
