USED 2024 OZ MACHINE APEX IA & POLAR V
Overview
Specs
Late-model OZ Machine aluminum profile fabrication package featuring an APEX I-A automatic hydraulic corner crimping machine with rising miter and a POLAR V automatic hydro-pneumatic end milling machine for precision processing of aluminum and PVC window, door, storefront and curtain-wall profiles.
Manufacturer OZ Machine / Özçelik Machinery
Model APEX I-A
Year 2024
Machine Type Automatic Hydraulic Aluminum Corner Crimping Machine
Application Corner crimping / joining aluminum profiles
Operating System Hydraulic
Centering System Automatic profile centering with rising/retractable miter
Controls PLC controlled
Crimping Blade Adjustment Adjustable according to profile
Profile Capability Wide and high aluminum profiles
Motor Power 2.2 kW / approx. 3 HP
Motor Speed 1,400 RPM
Electrical 220V AC, 3 Phase, PE
Frequency 50–60 Hz
Current – Your Machine 10.5 A
Hydraulic Oil Pressure 120–150 bar
Air Pressure 6–8 bar
Dimensions – Your Machine Plate 2,065 × 1,420 × 1,300 mm
Approx. Dimensions 81.3″ × 55.9″ × 51.2″
Weight – Your Machine Plate 444 kg / approx. 979 lb
Standard Crimping Sets 1/4″ and 3/16″ sets

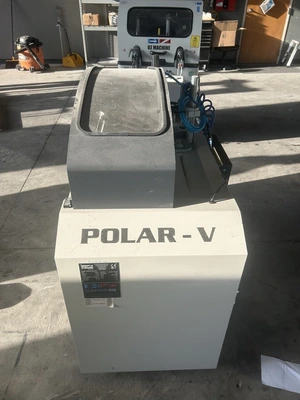

Model POLAR V
Machine Type Automatic End Milling Machine
Application End milling aluminum and PVC/vinyl profiles
Typical Use Mullion & transom profile preparation
Motion System Hydro-pneumatic
Clamping Pneumatic vertical & horizontal
Motor Power 2.2 kW / approx. 3 HP
Spindle Speed 3,000 RPM
Electrical – Your Machine 220V AC, 3 Phase, PE
Frequency 50–60 Hz
Current – Your Machine 8.5 A
Air Consumption – Your Machine 22 L/min
Maximum Cutter Diameter Approx. 10-5/8″
Maximum Profile Width Approx. 10-13/16″ / 275 mm
Maximum Profile Height Approx. 7-1/16″ / 180 mm
Angle Capability Adjustable end milling angles using graded miter
Safety Enclosed cover with safety sensor
Profile Support Conveyor/profile support
Cooling System Equipped / standard depending on configuration
Blade Adapter Yes
Blade Holding Station Yes
Dimensions – Your Machine Plate 1,350 × 1,400 × 1,210 mm
Approx. Dimensions 53.1″ × 55.1″ × 47.6″
Weight – Your Machine Plate 180 kg / approx. 397 lb
