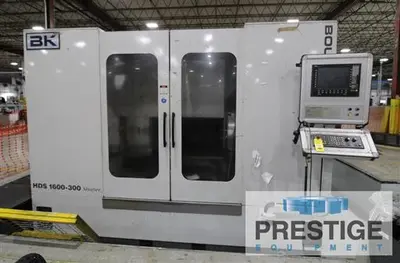

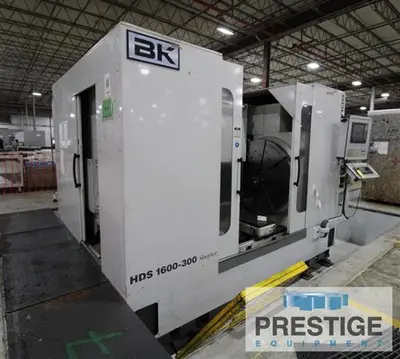

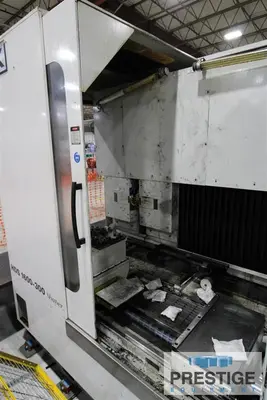

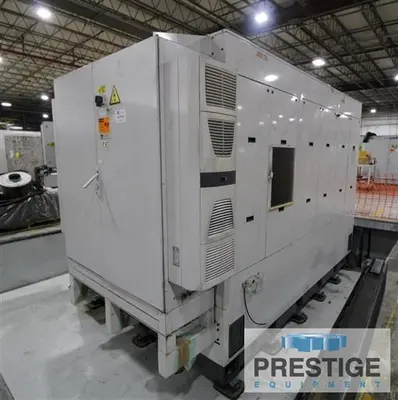

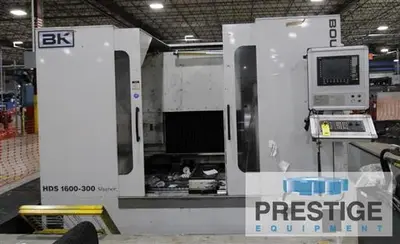

USED 2012 BOURN & KOCH HDS1600-300

CAPACITY:
Nominal Pitch Diameter, External: 62.99"
Maximum Face Width, w/ Both Heads: 23.62"
Maximum Face Width, Single Face: 11.81"
Maximum Diametral Pitch, Spur: 2 DP
Maximum Diametral Pitch, Helical: 2 DP
Minimum Gear Pitch: 8 DP
Maximum Helix Angle: 40 Degrees

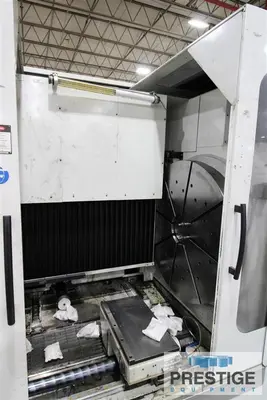

Worktable Diameter: 44.09"
Worktable Bore: 9.975"
Work Spindle Speeds: 1-25 RPM
X-Axis Travel: 34"
Z-Axis Travel: 13"
Cutter Spindle Stroking Range: 12-150 SPM
Cutter Spindle Diameter: 4.72"
Cutter Pitch Diameter, Max: 8.26"
Cutter Pitch Diameter, Min: 5.9"
Cutter Fit, Max: 3.54"
Cutter Fit, Min: 2.755"
Minimum Center Distance: 4.0"
Overall Dimensions: 191" L x 144" W x 132" H
Machine Weight: 120,000 Lbs.

Equipped With:

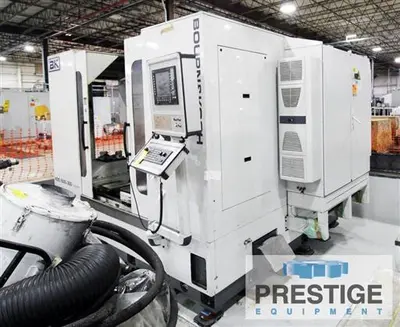

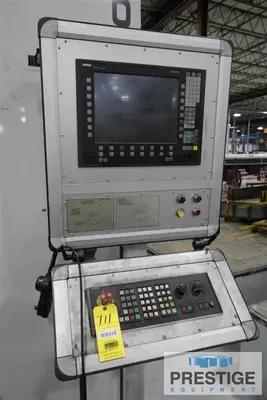

Siemens 9-Axis CNC Control
Inch/Metric Operation
CNC Crowning and Taper For External Gears
Lubrication System
Coolant System

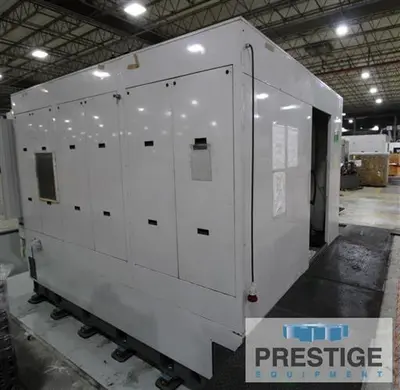

Full Enclosure

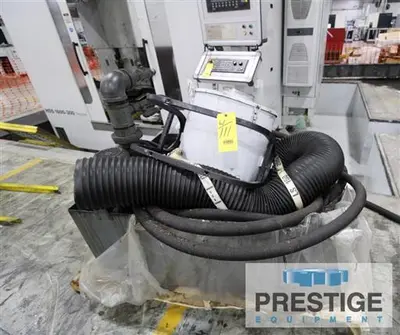

Mist Collector

Features:
Siemens 9-Axis CNC Control
Inch/Metric Operation
Chip Conveyor
CNC Crowning and Taper For External Gears
Mist Collector
