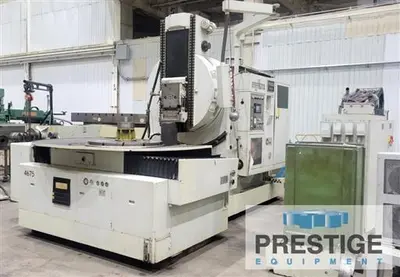

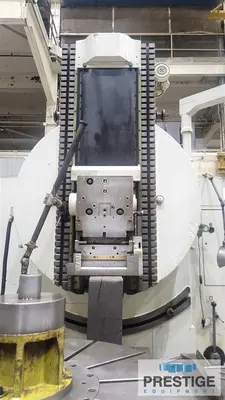

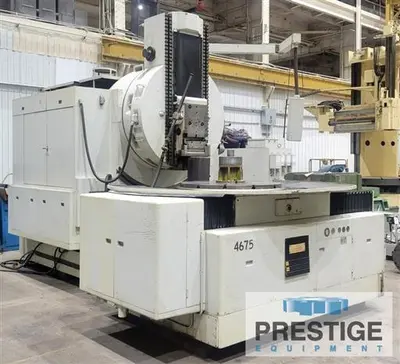

USED 1974 MAAG SH250

SPECIFICATIONS:
Max. Tip Circle Dia. (Spur Gear): 98.4"
Min. Tip Circle Dia. (Spur Gear): 7.9"
Module Min Pitch w/ Rack-Type Cutter: .0875 DP (30)
Module Max Pitch w/ Rack-Type Cutter: 12.7 DP (2)
Module Max w/ Single-Tooth Cutter: .5 DP (50)
Min./ Max. Number of Teeth: 12/1000
Helix Angle: Infinite
Max. Face Width (Spur Gear): 26"
Max. Table Load: 33000 lbs.
Max. Ram Stroke: 27"
Min. Ram Stroke: 2.75"
Diameter of Work Table Bore: 16.5"
Work Table Bore Length: 47.2"
Machine Footprint (L X W): 235" x 169"
Machine Height: 131"
Machine Weight: 84,000 lbs.

Equipped With:

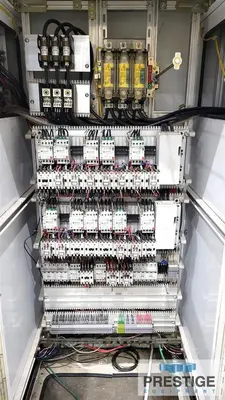

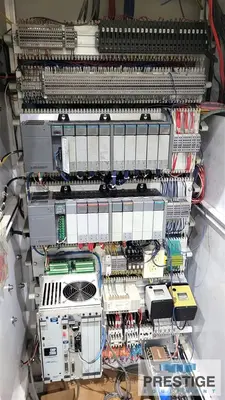

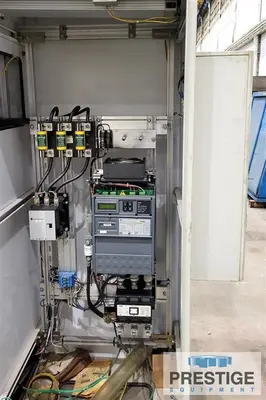

Allen Bradley PLC Retrofit in 1999

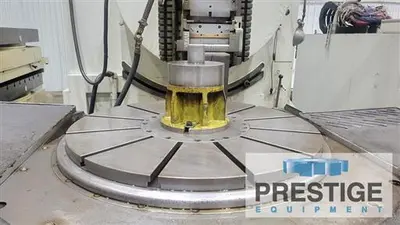

44" Dia. Built In Rotary Table

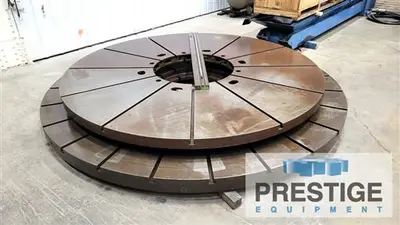

95" Dia. Additional Table/ Sub Plate
112"Dia. Additional Table / Sub Plate

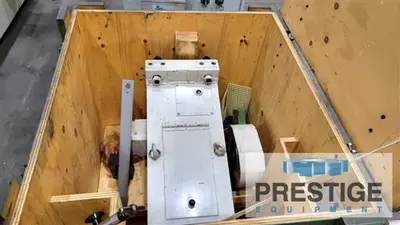

JVE Internal Attachment
Cutting Coolant System

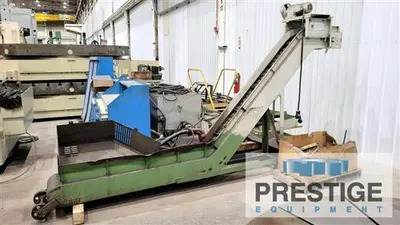

Chip Conveyor
Set of Change Gears

NOTE:
Inspect In Our Philadelphia PA Warehouse

Features:
Allen Bradley PLC Retrofit in 1999
44" Dia. Built In Rotary Table
95" Dia. Additional Table/ Sub Plate
112"Dia. Additional Table / Sub Plate
JVE Internal Attachment
Cutting Coolant System
Chip Conveyor
Set of Change Gears
