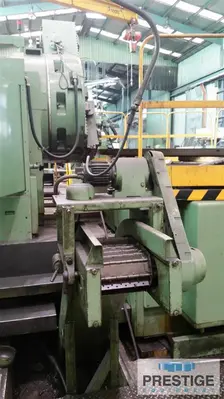

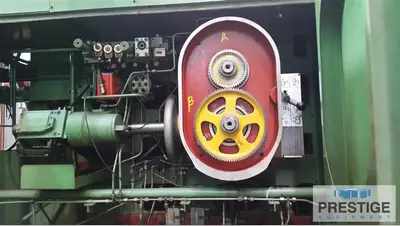

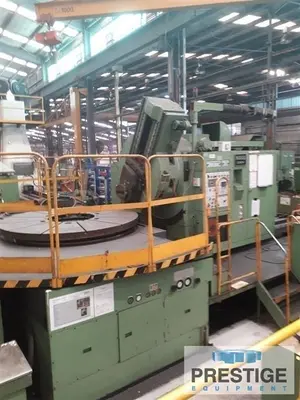

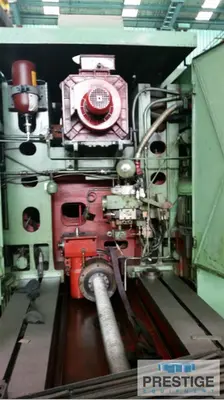

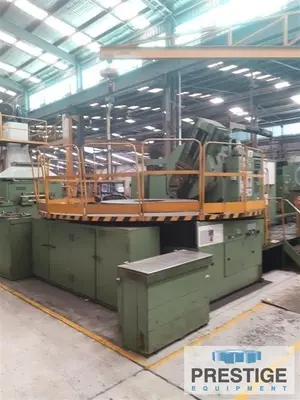

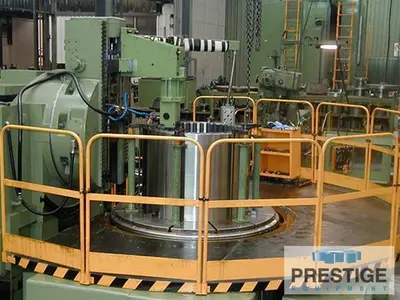

USED MAAG SH450

SPECIFICATIONS:
C-Axis: 360 Degrees
Y-Axis: 360 Degrees
A-Axis: Unlimited Helix
X-Axis: 89.37"
Z-Axis: 27.55"
Diameter of Work Table Bore: 23.62"
Table Dimensions: 68.89"
Table Hole Diameter: 23.62" x 51.18"
Maximum Workpiece Diameter: 199.29"
Maximum Workpiece Height: 66.41"
Power Max: 71 kW
Maximum Tip Circle Diameter: 178.74"
Minimum Tip Circle Diameter: 20.78"
Net Weight: 50 Ton
:

Equipped With:

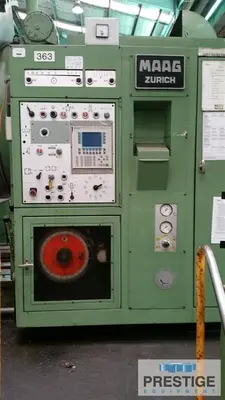

Siemens CNC Control, Drives, & PLC
Full 2-Axis CNC Control and Programming With Simple Tooling
Crowning Done With Longitudinal Correction Device
Tip And Root Relief Possible

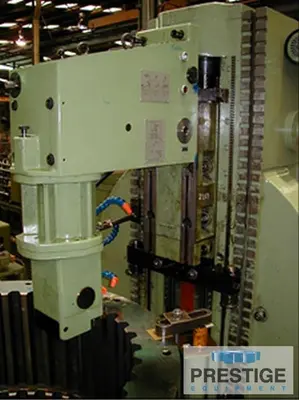

Internal gears and spline done with JVA attatchment.

TYPES OF GEARS:
Highly Accurate Spur, Helical, Double Helical Gears, Spline Shafts
and Coupling Done By Generation

Features:
Siemens 2-Axis CNC Control
Siemens Drives & PLC
Crowning Via Longitudinal Correction Device
Tip & Root Relief
JVA Attachment For Internal Gears And Splines
