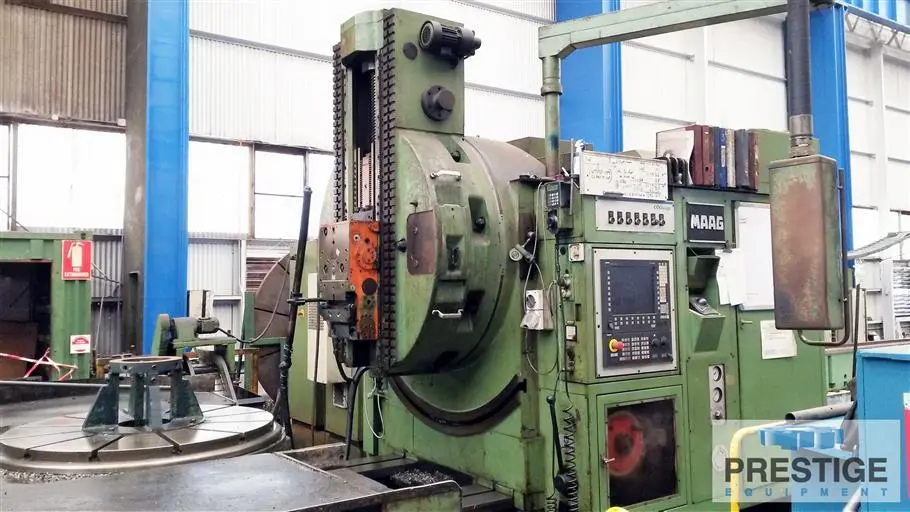

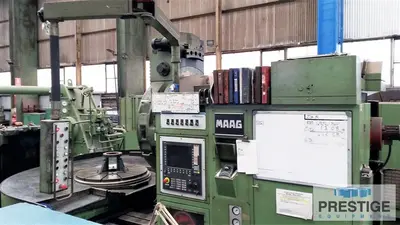

USED MAAG SH250/300

SPECIFICATIONS:
Max. Tip Circle Dia. (Spur Gear): 121.25"
Min. Tip Circle Dia. (Spur Gear): 7.9"
Module Min Pitch w/ Rack-Type Cutter: .0875 DP (30)
Module Max Pitch w/ Rack-Type Cutter: 12.7 DP (2)
Module Max w/ Single-Tooth Cutter: .5 DP (50)
Min./ Max. Number of Teeth: 12/1000
Helix Angle: Infinite
Max. Face Width (Spur Gear): 26"
Max. Table Load: 33000 lbs.
Max. Ram Stroke: 27"
Min. Ram Stroke: 2.75"
Diameter of Work Table Bore: 16.5"
Work Table Bore Length: 47.2"
Machine Footprint (L X W): 235" x 169"
Machine Height: 131"
Machine Weight: 84,000 lbs.

Equipped With:
Siemens 840D CNC Control (Retrofit 2013)
94" Additional Table
JVE Internal Attachment
Crowning
Assorted Tooling
Cutters
Cutting Coolant System
Chip Conveyor

NOTE:
Inspect In Plant Under Power

Features:
Siemens 840D CNC Control (Retrofit 2013)
JVE Internal Attachment
Cutting Coolant System
Chip Conveyor
