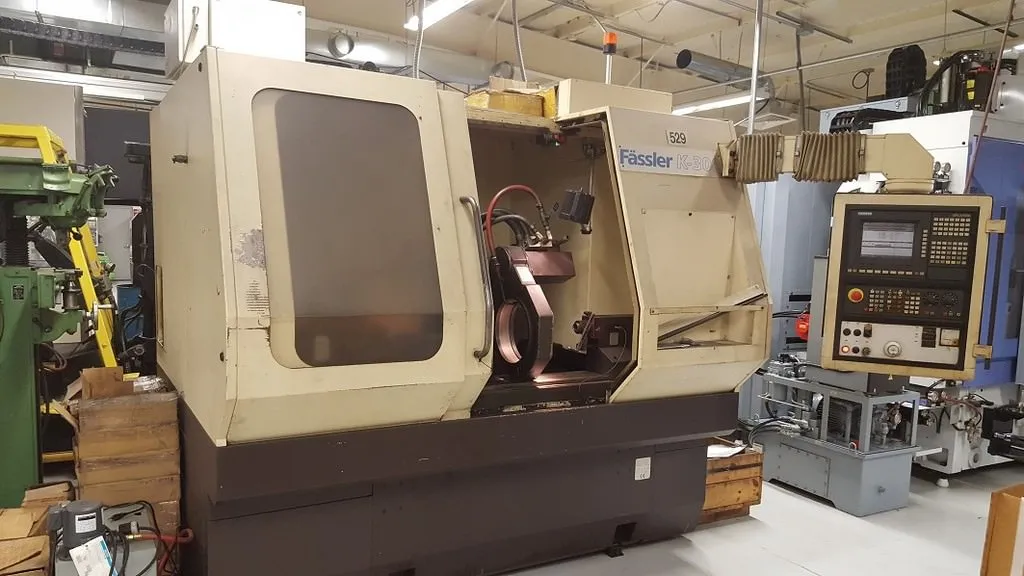

USED 1998 FASSLER K300
Overview
Specs
CAPACITY:
Workpiece Diameter (Minimum): .19"
Workpiece Diameter (Max.): 7.08"
Max Workpiece Length: 39.37"
Gear Teet Width (Max.): 4.72"
Module Range: .011"-.236"
Pressure Angle (Alpha) Max /Min: 40 Degree/14 Degree
Helix Angle (Beta) Max. (Left or Right): 30 Degree
WORKPIECE WEIGHTS:
Externally Toothed Between Centers: 44 Lbs.
Externally Toothed Cantilevered: 44 Lbs.
Internally Toothed (incl. clamping chuck): 110 Lbs.
HONING STONE MEASUREMENTS:
External Diameter (Max.): 11.81"
Honing Stone Widths: 24/30/40/50/60 mm.
Internal Diameter (Min.): 8.66"
Equipped With:

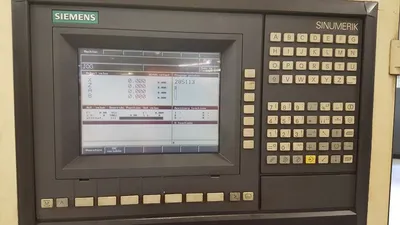

Siemens Sinumerik 840C CNC Controls
Pendant Control
Oil Mist Collection
