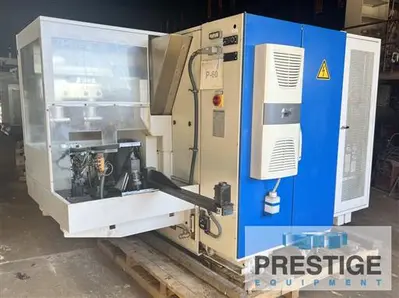

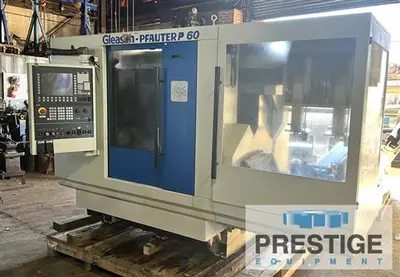

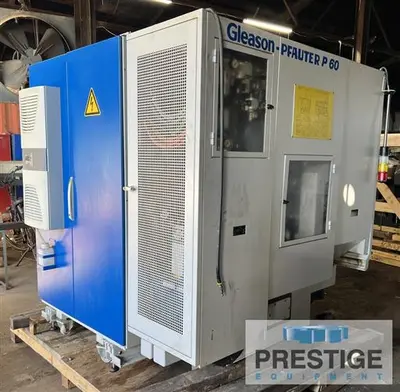

USED 2008 GLEASON-PFAUTER P60

SPECIFICATIONS:
Max part cutting diameter: 2.36"
Wheel diameter max: 65 mm
Wheel width: 140 mm
Modul max: 3 mm
Clamping length: 320 mm
Swivel angel max: +45°/-115°
X-Way: 80 mm
Y-Way: 100 mm
Z-Way: 220 mm
Milling speed infinitely variable: 300-5000 U/min
Workpiece spindle variable: 0-3000 U/min
Total power requirement: 12 kW
Machine weight ca.: 4.8 ton
Space requirements ca.: 3.3 × 3.3 × 2.1 m
power: 400 volt 50/60 cycle
load: 10 KvA

Equipped With:

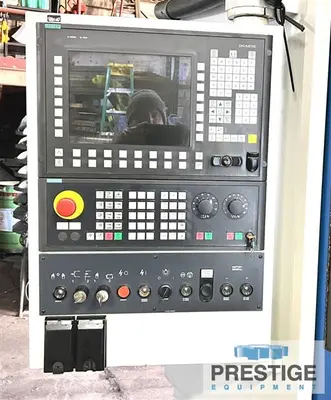

Siemens 840D CNC Control
conveyor style In and Out loading system w/ gantry load & unload
Programmable Tailstock & Center
Full Enclosure
Chip Conveyor
Misc. Tooling
Books and manuals

NOTE:
Special autoload cnc gear hobber with conveyor
Hard skiving (Re-hobbing) capabilities

Features:
Siemens Sinumeric 840D CNC CONTROLS
Gantry Autoloader & Unloader
Skiving Capability (Hard Re-Hobbing)
Crowning, Lead Modification
Full Enclosure
Coolant and Filtration System
Chip Conveyor
