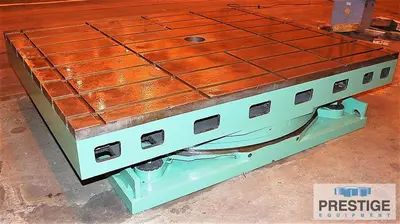

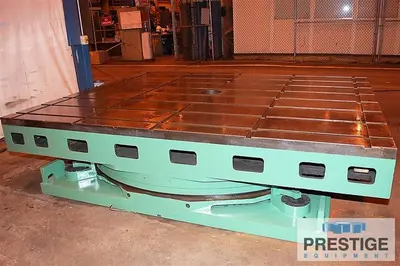

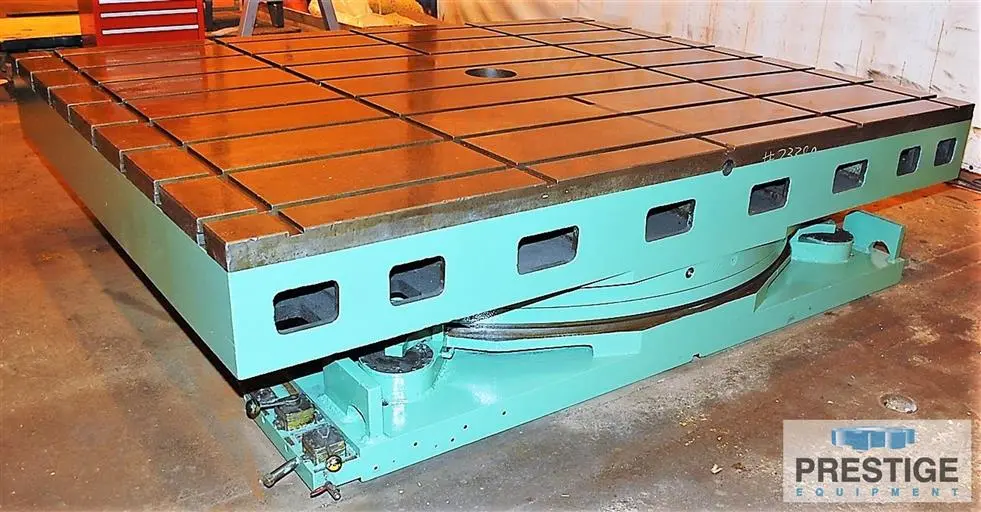

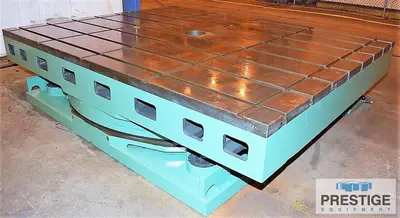

USED GIDDINGS & LEWIS FIXTURE TABLE

SPECIFICATIONS:
T-Slotted Table Surface: 96" X 120"
Table Height Overall: 28"
Number Of T-Slots: 8
Width Of T-Slots, Top: 1.25"
Width Of T-Slots, Bottom: 2.25"
Depth Of T-Slots, Overall: 2.5"
Distance Between T-Slot Centers: 12"
Center Keyway Width: 1 1/4"
Cross Key Slots: 5
Center Bore Diameter: 8"
Weight Capacity: 75,000 LBS
Shot Pin Locations (degrees): 90,180,270,360
Table Base Dimensions: 120" x 96"
Table Weight: 39,000 lbs

Equipped With:
Air Clamp
(4) Positive Stop, Shot Pins
360 Degree Scale with 1/2 Degree Increments
Fixture Locating Keyway
Centerbore In Table Platen
NOTE: Not Operable
