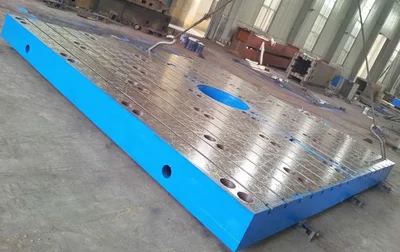

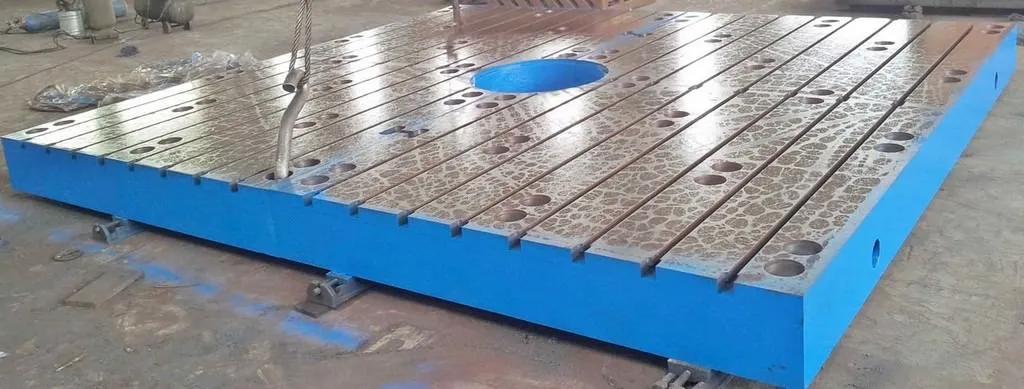

USED NEW T-SLOTTED

SPECIFICATIONS:
Length: 86.61"
Width: 157.48"
Total Pad Size: 173.22" x 157.48"
Thickness: 11.81"

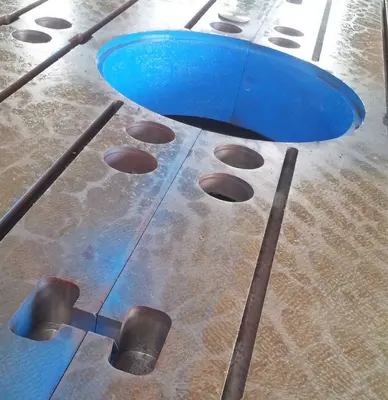

Number of T-Slots, Per Plate: 8
Distance Between T-Slots: 9.8"

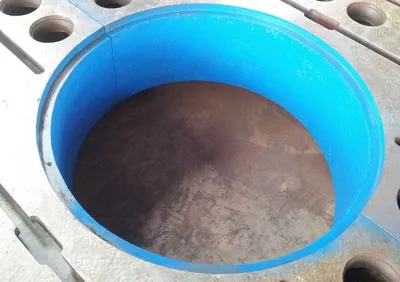

Dia. of Hole in Center of Plates: 30"
Type of Material: Cast Iron
Table Weight: 16,300 lbs each

Equipped With:
Leveler/ Anchors
Center Hole

MATERIAL:
Heat Treament: Annealling
Surface Accuracy: DIN876/III

SURFACE TREATMENT:
Side Skirt Painted & Anti-Rust Primer Paint on Bottom

NOTES:
Plates Will Be Built For Order
Delivery 5-Months From Order
Cost Is For The Two Plate Pad
