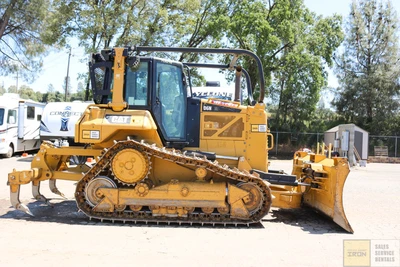

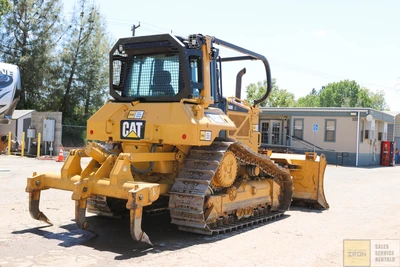

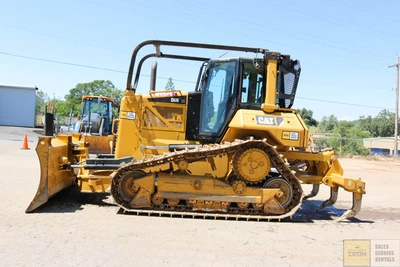

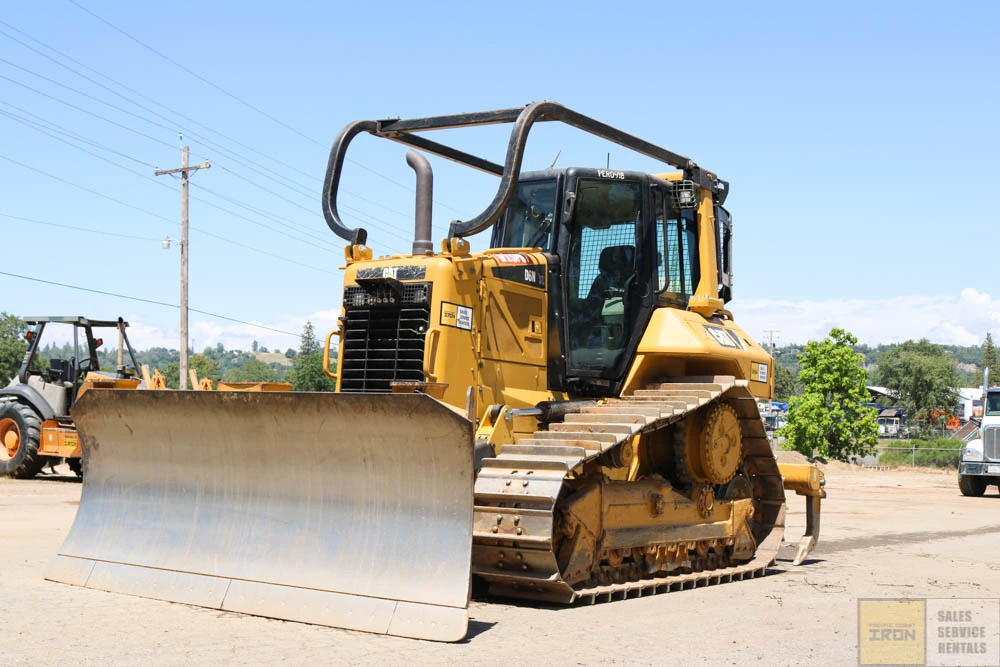

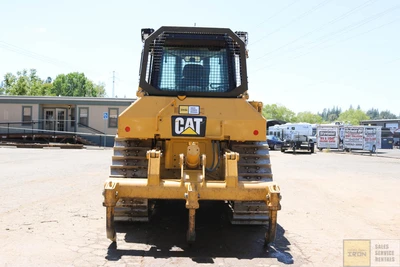

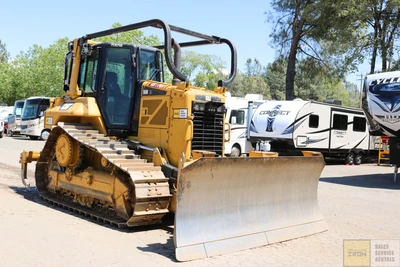

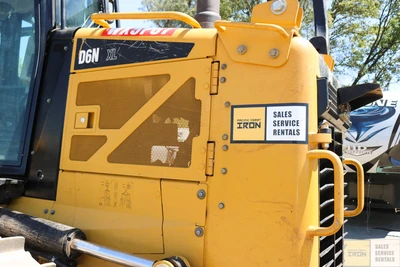

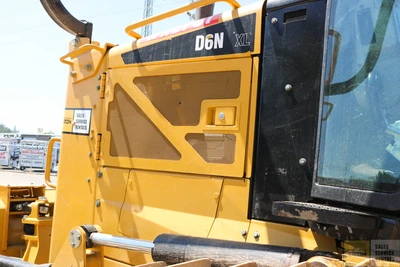

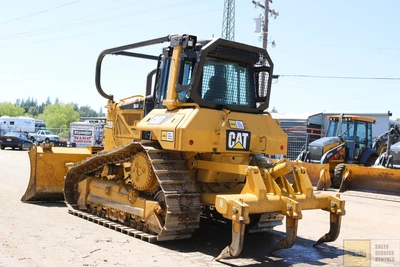

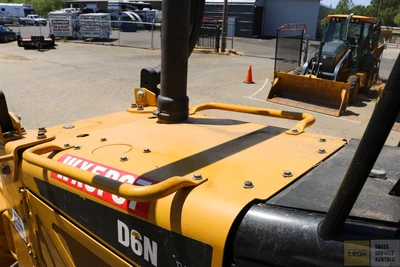

USED 2015 CATERPILLAR D6NXL

[Dimensions]
B. Width Over Tracks: 8.2 ft in
C. Height to Top of Cab: 10.2 ft in
D. Length of Track on Ground: 8.5 ft in
E. Ground Clearance: 1.3 ft in
F. Length w/o Blade: 12.3 ft in
[Undercarriage]
G. Track Gauge: 6.2 ft in
H. Standard Shoe Size: 24 in

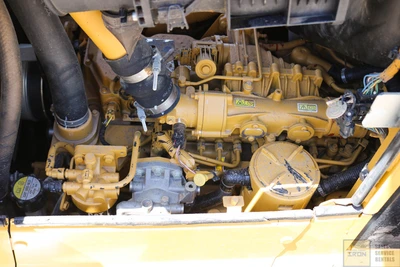

[Engine]
Make: Caterpillar
Model: C6.6 ACERT
Net Power: 145 hp
Power Measured @: 2200 rpm
Displacement: 439.4 cu in
Number of Cylinders: 6
[Operational]
Operating Weight: 36610 lb
Fuel Capacity: 79 gal
Cooling System Fluid Capacity: 9.2 gal
Hydraulic Fluid Capacity: 7.8 gal
Final Drives Fluid Capacity: 1.8 gal
Operating Voltage: 12 V
Alternator Supplied Amperage: 70 amps
[Transmission]
Type: powershift
Number of Forward Gears: 3
Number of Reverse Gears: 3
Max Speed – Forward: 6.3 mph
Max Speed – Reverse: 7.5 mph

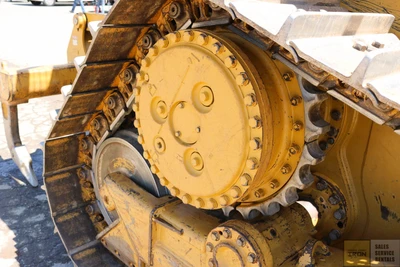

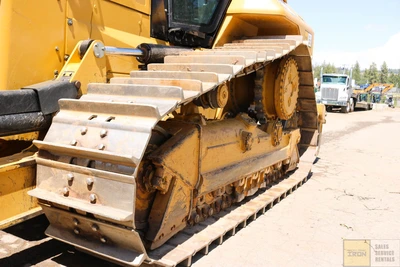

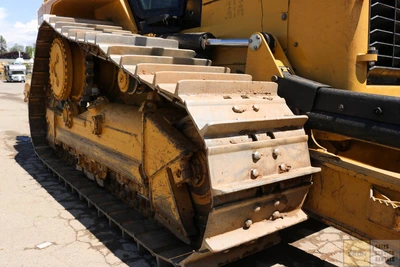

[Undercarriage]
Ground Pressure: 7.5 psi
Ground Contact Area: 4882 in2
Standard Shoe Size: 24 in
Number of Shoes per Side: 40
Number of Track Rollers per Side: 7
Track Gauge: 6.2 ft in

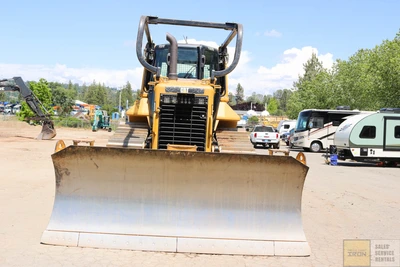

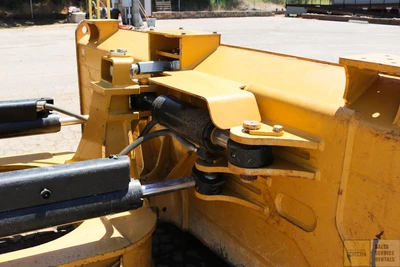

[Standard Blade]
Width: 10.7 ft in
Height: 49 in
Capacity: 4.2 yd3
Cutting Depth: 20.5 in
[Dimensions]
Length w/o Blade: 12.3 ft in
Width Over Tracks: 8.2 ft in
Height to Top of Cab: 10.2 ft in
Length of Track on Ground: 8.5 ft in
Ground Clearance: 1.3 ft in
