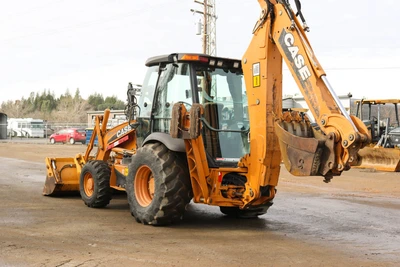

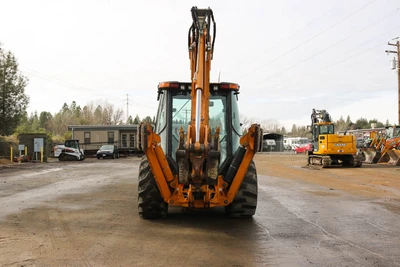

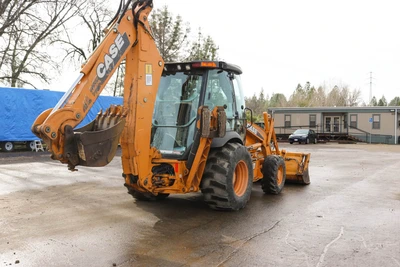

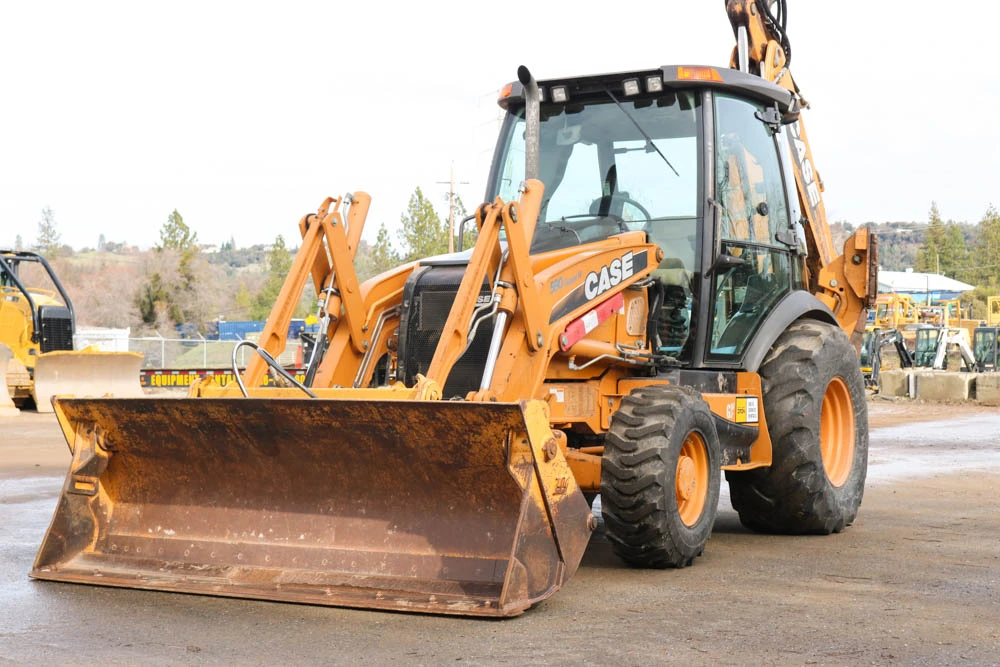

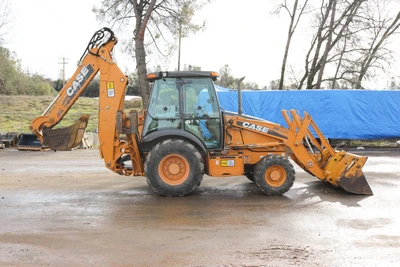

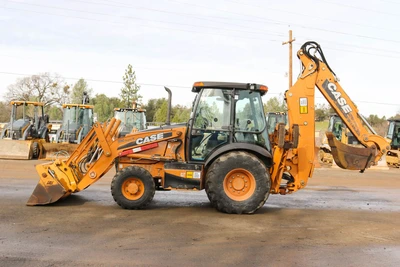

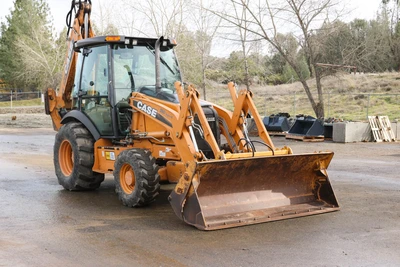

USED 2012 CASE 590

Backhoe
J Load Height – Std: 13.13 ft in
K Reach From Swivel – Std: 19.62 ft in
L Dig Depth – Std: 15.49 ft in
M Reach at Load Height – Std: 5.12 ft in
Dimensions
A Transport Length: 23.79 ft in
B Transport Width: 7.75 ft in
C Transport Height: 11.62 ft in
D Wheelbase: 6.99 ft in
E Ground Clearance: 1.19 ft in

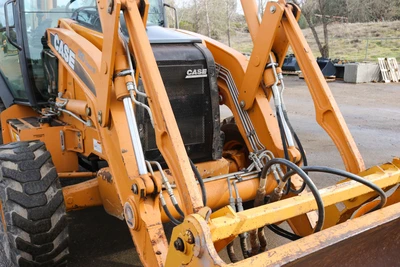

Loader
G Clearance at Max Dump Height: 8.93 ft in
H Reach at Max Dump Height: 2.44 ft in
I Dig Depth: 6.19 in

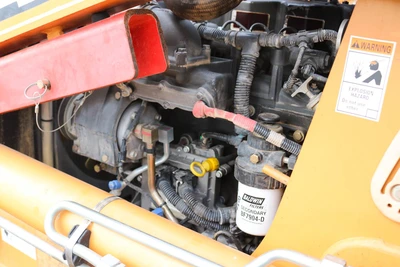

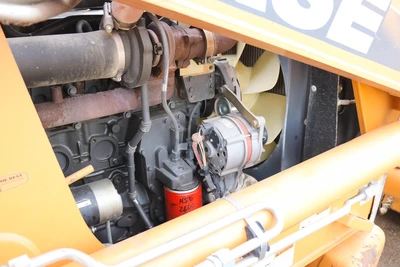

Engine
Emissions Certification: Tier 4 Final
Fuel: Diesel
Fan: 9 blade viscous suction, Ratio – 1.4:1
Radiator Core type: Square wave
Fuel tank: 34.9 gal
Number of Cylinders: 4
Max speed: 23 mph
Engine Make: CASE
Engine Model: FPT F5BFL413A
Net Power: 108 hp
Gross Power: 110 hp
Power Measured @: 2200 rpm
Battery: 850 cold-cranking amps
Torque Measured @: 1400 rpm
Net Torque Rise: 45 %
Net Max Torque: 339 lb ft
Aspiration: Turbocharged
Bore: 3.9 in
Stroke: 4.4 in
Displacement: 207.5 cu in
Capacities
Front axle: 524.9 cu in
Engine oil with filter: 2.2 gal
Fuel Tank: 34.9 gal
Diesel exhaust fluid (DEF) tank: 3.6 gal
Cooling system: 4.8 gal
Rear Axle: 3.6 gal
Operational
Backhoe Flow- gallons: 43 gal/min
Operating Weight 4wd: 20458 lb
Fuel Capacity: 42.1 gal
Hydraulic System Fluid Capacity: 34.9 gal
Oil System Fluid Capacity: 3.6 gal
Cooling System Fluid Capacity: 4.8 gal
Transmission Fluid Capacity: 5.2 gal
Front Axle Fluid Capacity: 2.3 gal
Rear Axle Fluid Capacity: 3.6 gal
Turning Radius: 12.5 ft in
Tire Size Front – 2wd / 4wd: 14×17.5
Rear Tires Size 2wd/4wd: 21Lx24
Operating Voltage: 12 V
Alternator Supplied Amperage: 120 amps
Performance
Dipper stick digging force: 10575.3 lb
Loader Bucket Heaped Capacity: 1.3 yd3
Boom Lift – Maximum Reach – Retracted Dipper: 3688.4 lb
Dipper stick Lift Capacity: 6651.4 lb
Arm breakout force, SAE: 11442.8 lb
Transmission
Transmission Type: Powershift
Number of Forward Gears: 4
Number of Reverse Gears: 3
Max Speed – Forward: 24.2 mph
Max Speed Reverse: 15.9 mph

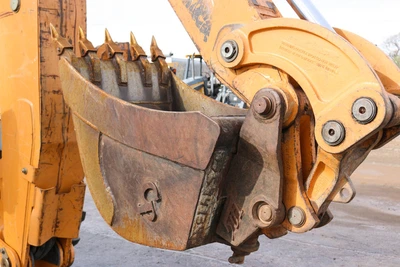

Backhoe
Dig Depth – Std: 15.5 ft in
Dig Depth – Ext: 19.5 ft in
Reach From Swivel – Std: 19.7 ft in
Reach From Swivel – Ext: 23.6 ft in
Load Height – Std: 13.2 ft in
Load Height – Ext: 15.8 ft in
Reach at Load Height – Std: 5.2 ft in
Reach at Load Height – Ext: 8.2 ft in

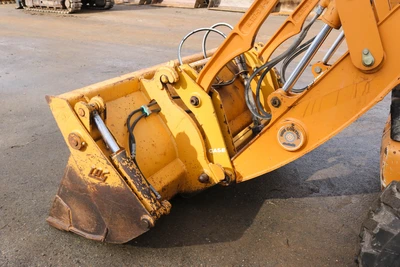

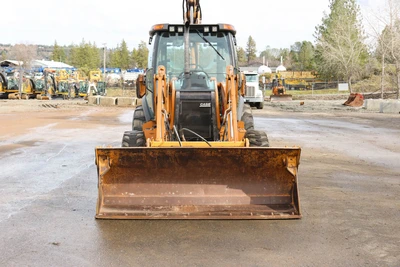

Loader
Bucket Capacity: 1.3 yd3
Bucket Width: 93 in
Lift Capacity at Full Height: 8203.5 lb
Clearance at Max Dump Height: 9 ft in
Reach at Max Dump Height: 2.5 ft in
Dig Depth: 6.2 in

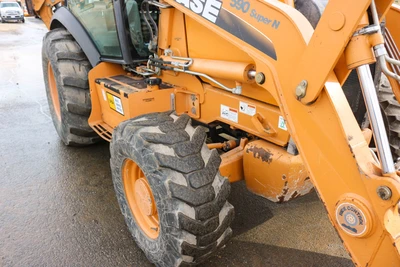

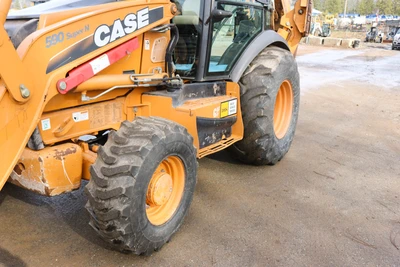

Tires
Front: 14.0L x 17.5 (4WD)
Rear: 21.0L x 24.0 (4WD)
Hydraulic
Pump Type: Variable Displacement Axial Piston
Pump Flow Capacity: 43 gal/min
Relief Valve Pressure: 3450 psi
Brakes
Service brake: Wet Multi Disc
Dimensions
Turning Radius: 12.5 ft in
Transport Length: 23.8 ft in
Transport Width: 7.8 ft in
Transport Height: 11.7 ft in
Height to Top of Suspended Cab: 8.9 ft in
Wheelbase: 7 ft in
Ground Clearance: 1.2 ft in
Operating Weight: 21250 lbs (9639) kg (4WD)
