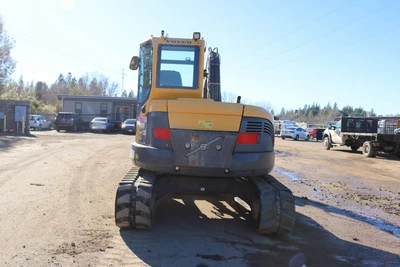

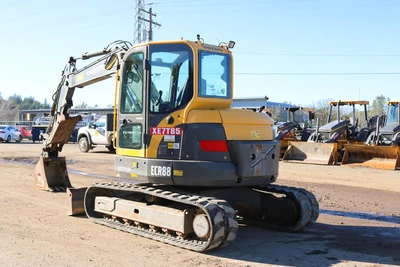

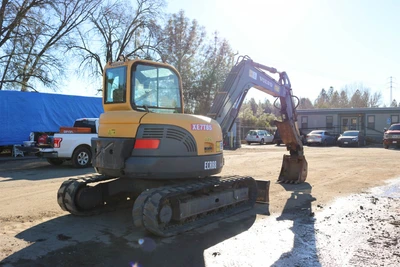

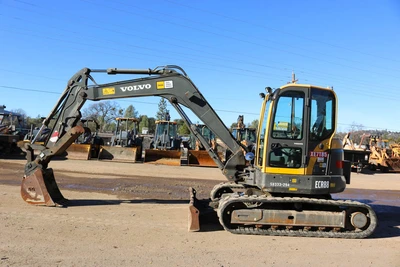

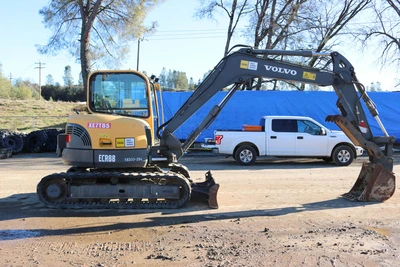

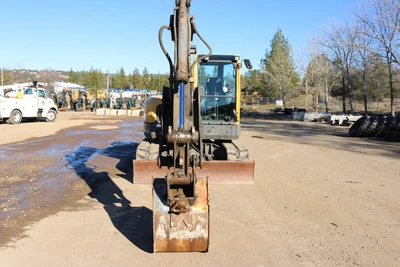

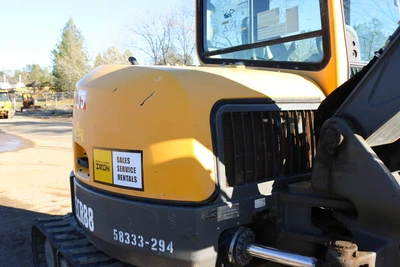

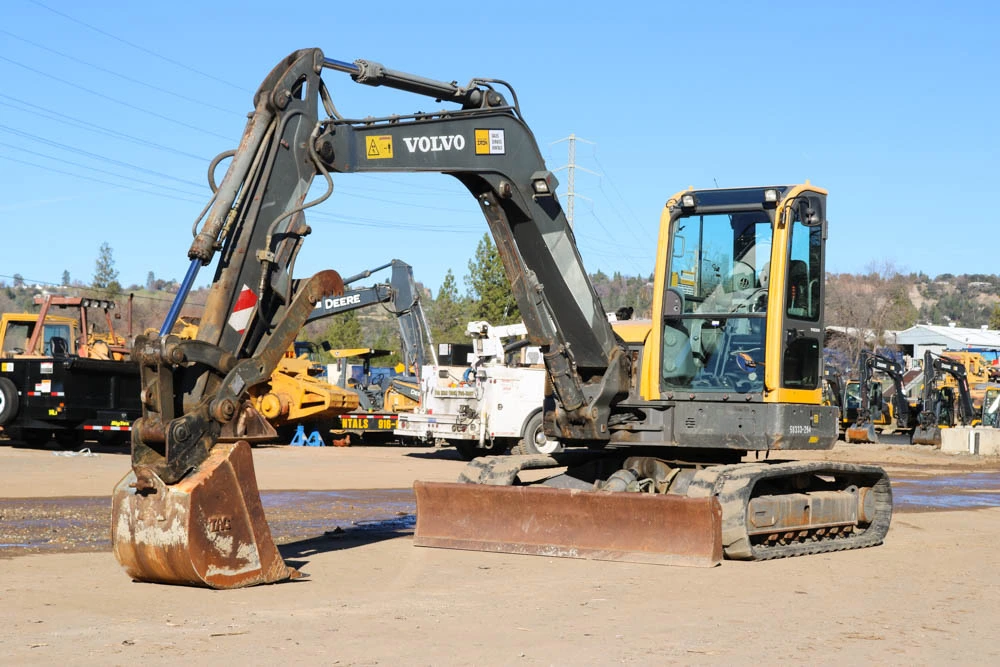

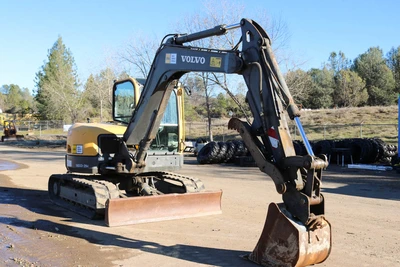

USED 2013 VOLVO ECR88

Boom/Stick Option (HEX) 1
A Shipping Length of Unit: 21.04 ft in
C Shipping Height of Unit: 8.8 ft in
I Max Cutting Height: 22.12 ft in
J Max Loading Height: 15.95 ft in
K Max Reach Along Ground: 22.51 ft in
L Max Vertical Wall Digging Depth: 9.49 ft in
M Max Digging Depth: 13.69 ft in
Boom/Stick Option (HEX) 2
A Shipping Length of Unit: 21.04 ft in
C Shipping Height of Unit: 8.8 ft in
I Max Cutting Height: 22.97 ft in
J Max Loading Height: 16.8 ft in
K Max Reach Along Ground: 23.76 ft in
L Max Vertical Wall Digging Depth: 10.7 ft in
M Max Digging Depth: 15 ft in
Dimensions
B Width to Outside of Tracks: 7.55 ft in
D Length of Track on Ground: 7.22 ft in
E Ground Clearance: 1.28 ft in
G Height to Top of Cab: 8.8 ft in
H Tail Swing Radius: 3.97 ft in

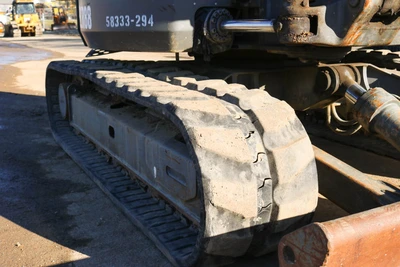

Undercarriage
F Track Gauge: 6.07 ft in
N Shoe Size: 17.72 in

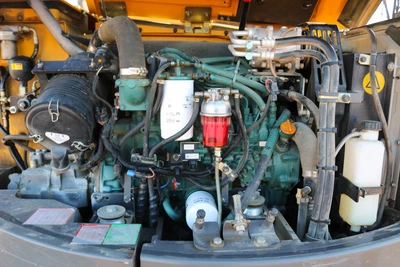

Engine
Number of Cylinders: 4
Engine Make: 2244
Engine Model: D3.4
Gross Power: 59 hp
Net Power: 56.8 hp
Power Measured @: 2100 rpm
Displacement: 202.5 cu in
Max Torque: 173.3 lb ft
Torque Measured @: 1400 rpm
Aspiration: Natural
Operational
Operating Weight: 18040 lb
Fuel Capacity: 29.1 gal
Cooling System Fluid Capacity: 1.9 gal
Hydraulic System Fluid Capacity: 37 gal
Engine Oil Capacity: 3.1 gal
Operating Voltage: 12 V
Alternator Supplied Amperage: 55 amps
Hydraulic System Relief Valve Pressure: 4354 psi
Hydraulic Pump Flow Capacity: 46 gal/min
Swing Mechanism
Swing Speed: 9.5 rpm

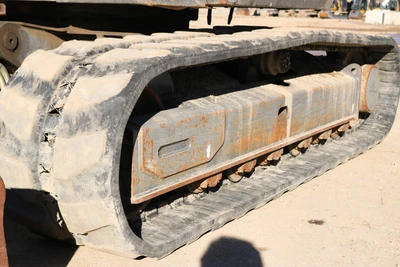

Undercarriage
Shoe Size: 17.8 in
Number of Carrier Rollers per Side: 1
Number of Track Rollers per Side: 6
Ground Pressure: 5.1 psi
Max Travel Speed: 3.2 mph
Track Gauge: 6.1 ft in

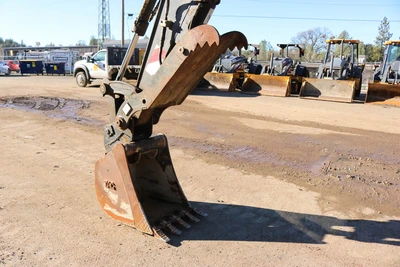

Buckets
Reference Bucket Capacity: 0.3 yd3
Minimum Bucket Capacity: 0.2 yd3
Maximum Bucket Capacity: 0.4 yd3
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1: Boom 11’7.8″ (3550mm)/Stick 5’6.9″ (1700mm)
Shipping Height of Unit: 8.8 ft in
Shipping Length of Unit: 21.1 ft in
Max Digging Depth: 13.7 ft in
Max Reach Along Ground: 22.6 ft in
Max Cutting Height: 22.2 ft in
Max Loading Height: 16 ft in
Max Vertical Wall Digging Depth: 9.5 ft in
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2: Boom 11’7.8″ (3550mm)/Stick 6’10.7″ (2100mm)
Shipping Height of Unit: 8.8 ft in
Shipping Length of Unit: 21.1 ft in
Max Digging Depth: 15 ft in
Max Reach Along Ground: 23.8 ft in
Max Cutting Height: 23 ft in
Max Loading Height: 16.8 ft in
Max Vertical Wall Digging Depth: 10.7 ft in
Dimensions
Width to Outside of Tracks: 7.6 ft in
Height to Top of Cab: 8.8 ft in
Ground Clearance: 1.3 ft in
Removal Counterweight Clearance: 2.5 ft in
Tail Swing Radius: 4 ft in
Length of Track on Ground: 7.3 ft in
