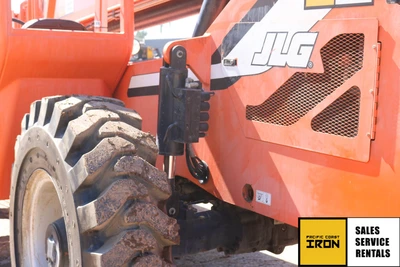

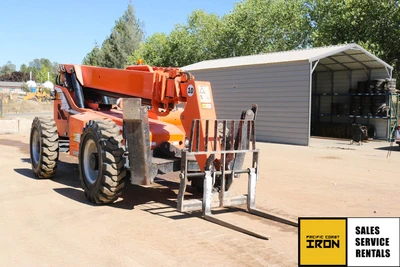

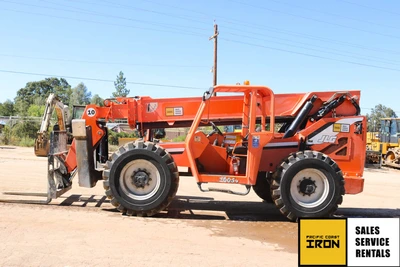

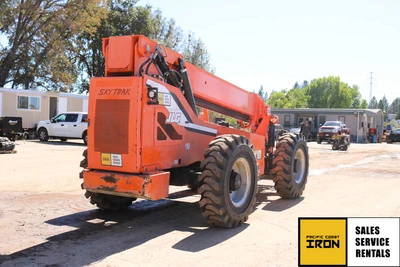

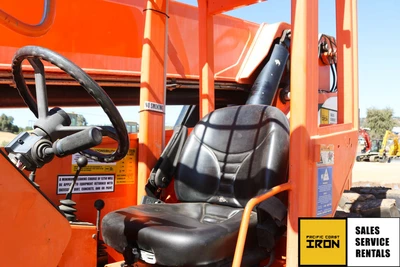

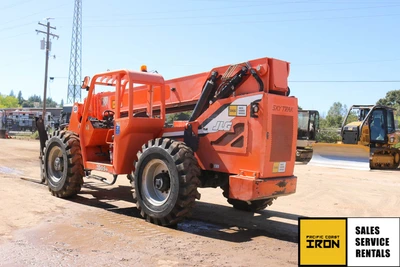

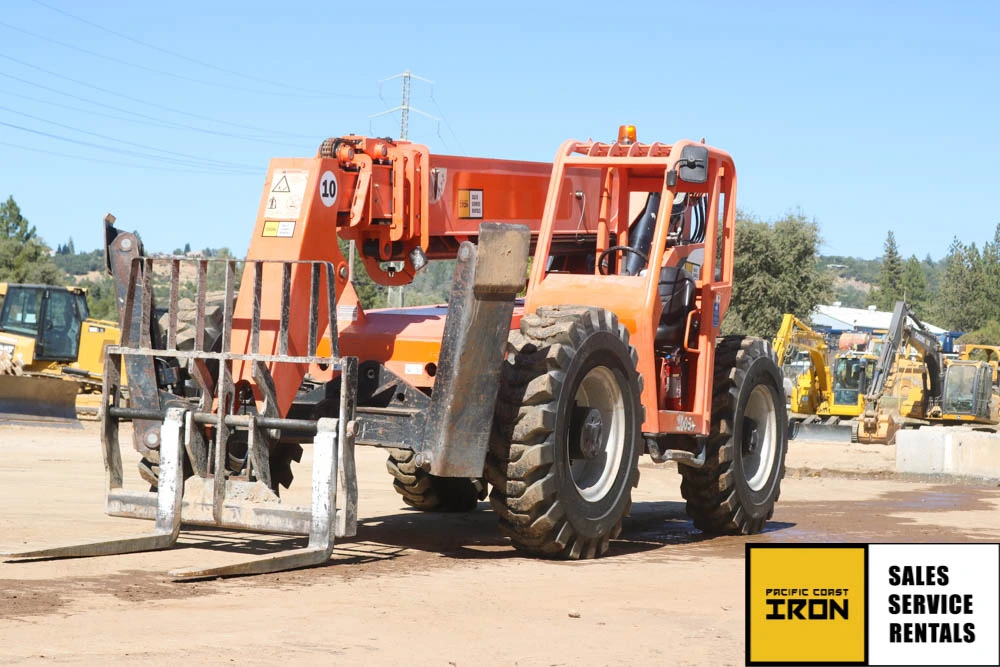

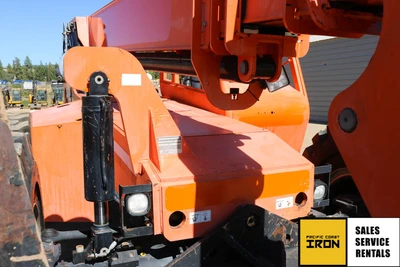

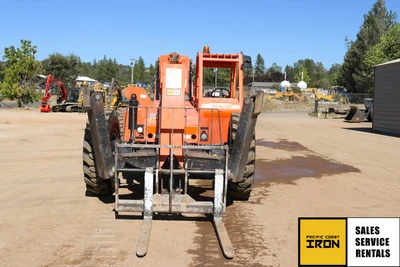

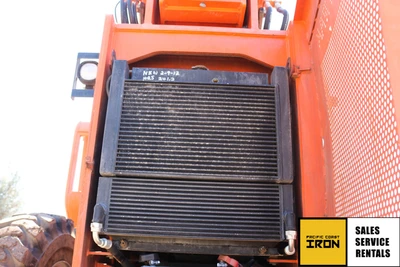

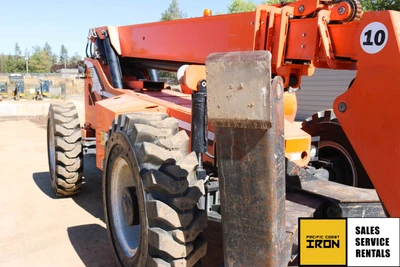

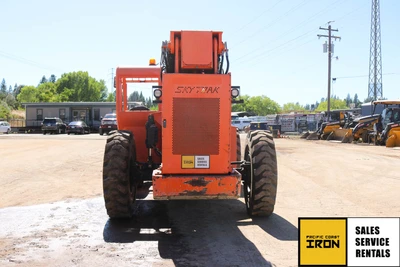

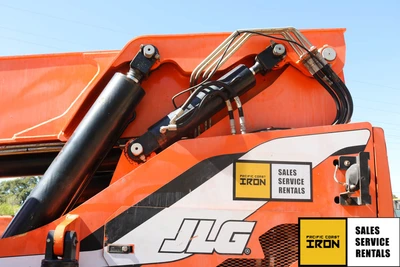

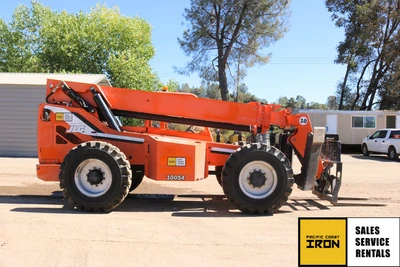

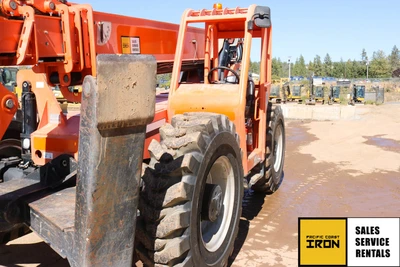

USED 2012 SKYTRAK 10054

[Performance]
Drawbar Pull: 24500 lb / 11113.01 kg
Frame Leveling: 10 Degrees
Outriggers Up Lift Capacity Full Height: 4000 lb / 1814.37 kg
Outriggers Up Lift Capacity Full Reach: 1400 lb / 635.03 kg
Load Center: 2 ft / 0.61 m
Maximum Lift Capacity: 10000 lb / 4535.92 kg
Outriggers Up Max Lift Height: 53 ft 2 in. / 16.21 m
Outriggers Up Max Forward Reach: 38 ft 9 in. / 11.81 m
Lift Capacity at Full Height: 4000 lb / 1814.37 kg
Lift Capacity at Max Reach: 3000 lb / 1360.78 kg
Maximum Reach: 38 ft 9 in. / 11.81 m
Maximum Lift Height: 53 ft 2 in. / 16.21 m
Outriggers or Stabilizers: Yes
Outside Turning Radius: 13 ft 9 in. / 4.19 m
Speed – Maximum Lift: 16.4 sec.
Speed – Maximum Lower: 14.7 sec.
Speed – Maximum Telescope In: 15.9 sec.
Speed – Maximum Telescope Out: 17.6 sec.
Speed – Maximum Travel: 20 mph / 32.19 km/h
[Dimensional Data]
Ground Clearance: 1 ft 6 in. / 0.46 m
Machine Height: 8 ft 4 in. / 2.54 m
Machine Length: 21 ft / 6.4 m
Machine Width: 8 ft 6 in. / 2.59 m
Tire Size: 400/75-28
Wheelbase: 10 ft / 3.04 m

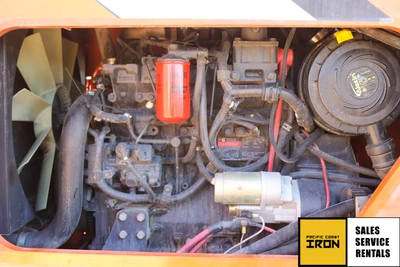

[Power Source]
Capacity – Fuel Tank: 35 gal. / 132.49 L
Engine Horsepower: 110 hp / 82.06 kW
Engine Manufacturer: Cummins
Engine Model: QSF3.8L Tier 4 Final
Maximum Engine RPM: 1500 rpm
[General]
Axle-Front: High Bias, Limited Slip
Axle-Rear: Oscillating
Function Pump Type: Var Load Sensing Piston
Operating Vehicle Weight: 28200 lb / 12791.30 kg
Service Brake Type: Wet Multi-Disc
Transmission – Nr Forward Gears Standard: 4
Transmission – Nr Reverse Gears: 3
Transmission Type: Powershift
