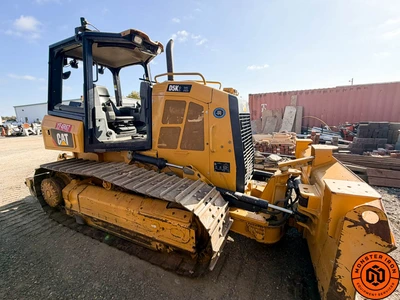

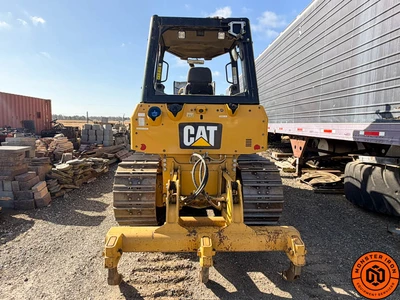

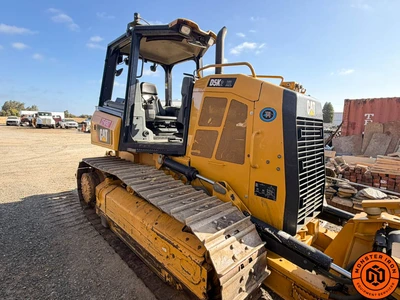

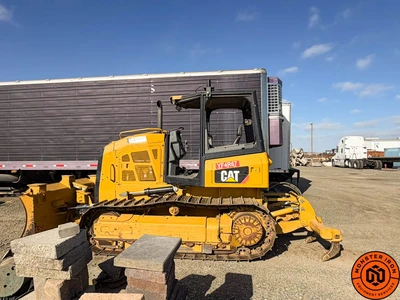

USED 2019 CATERPILLAR D5K2XL

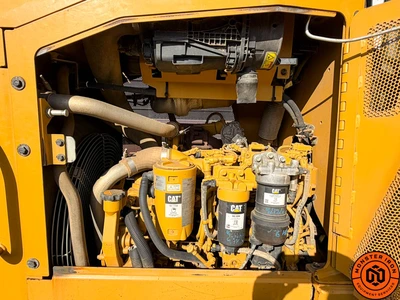

[Engine]
Engine Model: Cat C4.4 ACERT
Rated Net Power @ 2,200 rpm: 77.6 kW / 104 hp
Rated Net Power @ 2,200 rpm: 77.6 kW / 104 hp
Bore: 105 mm / 4.13 in
Stroke: 127 mm / 5 in
Displacement: 4.4 L / 269 in³
[Weights]
Operating Weight – XL: 9,214 kg / 20,313 lb
Operating Weight – LGP: 9,522 kg / 20,992 lb
Operating Weight – LGP, 762 mm / 30 in shoes: 9,726 kg / 21,442 lb
[Transmission and Travel]
Drive Pumps: 1
Track Motors: 2
Relief Valve Settings: 48,500 kPa / 7,033 psi
Maximum Travel Speed – Forward: 9 km/h / 5.6 mph
Maximum Travel Speed – Reverse: 10 km/h / 6.2 mph
Transmission Type: Dual path, closed-loop hydrostatic transmission

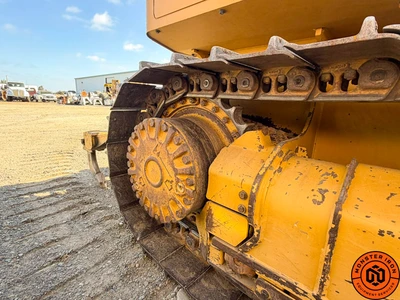

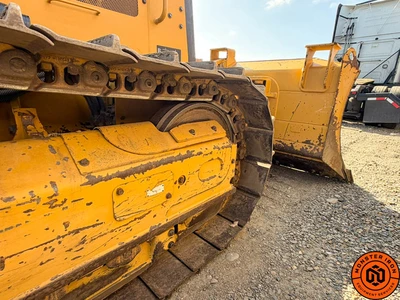

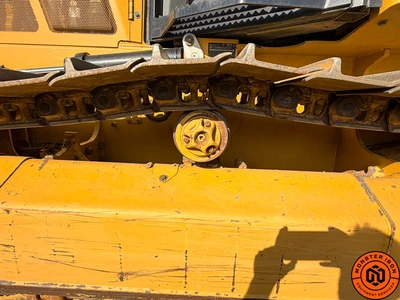

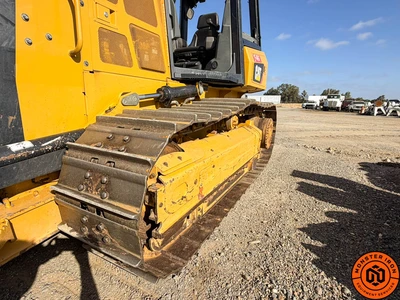

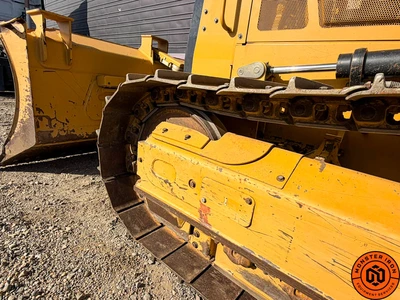

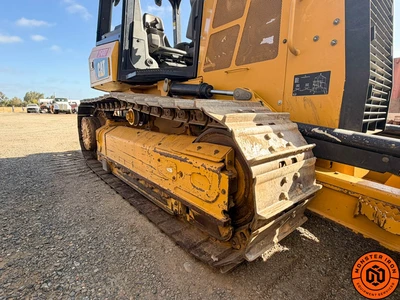

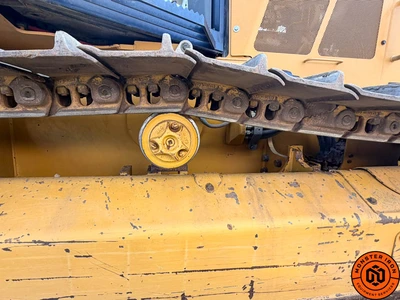

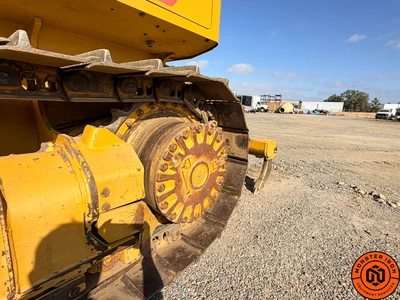

[Undercarriage]
Number of Rollers – Each Side: 7
SALT Undercarriage Shoes – Each Side: 40
SystemOne Undercarriage Shoes – Each Side: 36
Shoe Width – XL: 510 mm / 20 in
Shoe Width – LGP: 660 mm / 26 in
Shoe Width – LGP, 762 mm / 30 in: 762 mm / 30 in
Length of Track on Ground: 2,310 mm / 91 in
Track Gauge – XL: 1,600 mm / 63 in
Track Gauge – LGP: 1,750 mm / 69 in
Track Gauge – LGP, 762 mm / 30 in: 1,860 mm / 73.2 in
Ground Contact Area – XL: 23,562 cm² / 3,652 in²
Ground Contact Area – LGP: 30,492 cm² / 4,726 in²
Ground Contact Area – LGP, 762 mm / 30 in: 35,574 cm² / 5,514 in²
Ground Pressure – XL: 38.6 kPa / 5.6 psi
Ground Pressure – LGP: 31.1 kPa / 4.5 psi
Ground Pressure – LGP, 762 mm / 30 in: 27.1 kPa / 3.93 psi
[Service Refill Capacities]
Fuel Tank: 195 L / 51.5 gal
Crankcase and Filter: 11 L / 2.91 gal
Final Drives – XL, Each Side: 10 L / 2.6 gal
Final Drives – LGP, Each Side: 10 L / 2.6 gal
Cooling System: 22.4 L / 5.92 gal
Transmission / Hydraulic Tank: 59.5 L / 15.7 gal
Diesel Exhaust Fluid Tank: 19 L / 4.9 gal
[Hydraulic Controls]
Pump Output: 68.0 L/min / 17.7 gal/min
Relief Valve Settings: 20,600 kPa / 2,988 psi
Standard Hydraulics: 3 valve, load sensing hydraulics
Optional Hydraulics: 4 valve for ripper or winch

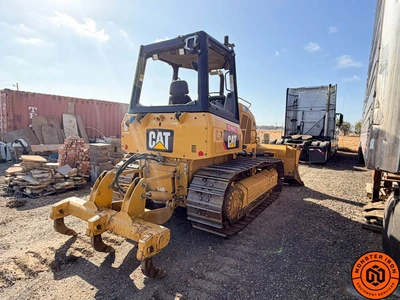

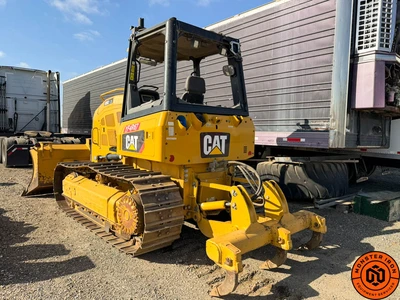

[Ripper]
Type: Parallelogram
Number of Shanks: 3
Maximum Digging Depth: 337.5 mm / 13.3 in
Maximum Reach at Ground Line: 555 mm / 21.9 in
Maximum Ground Clearance Under Tip: 448 mm / 17.6 in
Overall Width: 1,710 mm / 67.3 in
Height: 165 mm / 6.5 in
Weight: 554 kg / 1,222 lb
[Winch]
Weight: 610 kg / 1,345 lb
Winch Drive: Hydrostatic
Control: Hydraulic
Speed: Variable
Winch Length: 705 mm / 27.76 in
Overall Width: 741 mm / 29.2 in
Drum Diameter: 254 mm / 10 in
Drum Width: 274 mm / 10.8 in
Throat Clearance: 171.5 mm / 6.75 in
Recommended Rope Diameter: 16 mm / 0.63 in
Optional Rope Diameter: 19 mm / 0.75 in
Drum Capacity – Recommended Cable: 113 m / 371 ft
Drum Capacity – Optional Cable: 78 m / 256 ft
Maximum Line Pull – Bare Drum: 18,144 kg / 40,000 lb
Maximum Line Pull – Full Drum: 11,340 kg / 25,000 lb
Maximum Line Speed – Bare Drum: 40 m/min / 131 ft/min
Maximum Line Speed – Full Drum: 63 m/min / 207 ft/min

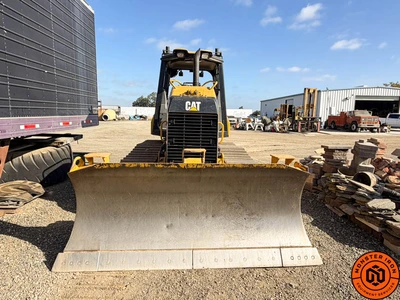

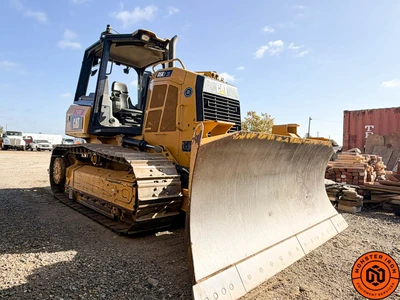

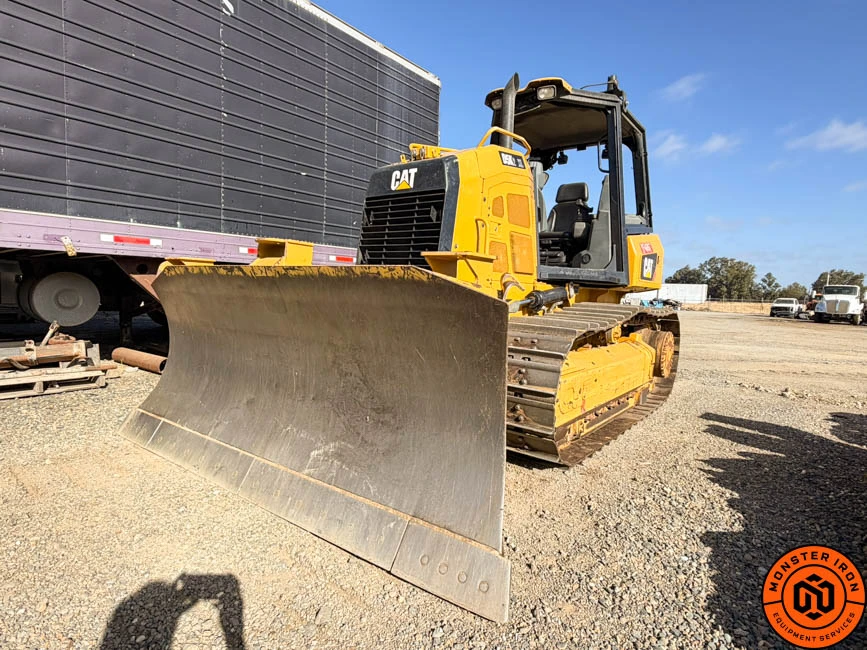

[XL Dimensions and VPAT Blade]
Track Gauge: 1,600 mm / 63 in
Width of Tractor – Standard Shoes, No Blade: 2,110 mm / 83.1 in
Overall Length with Blade: 4,309 mm / 170.1 in
Length of Basic Tractor without Blade: 3,265 mm / 128.5 in
Tractor Height: 2,769 mm / 109 in
Ground Clearance: 332 mm / 13 in
Blade Width: 2,782 mm / 109.5 in
Blade Height: 1,073 mm / 42.2 in
Blade Lift Height: 767 mm / 30.2 in
Digging Depth: 586 mm / 23.1 in
Blade Cutting Edge Angle: 52° to 58°
Maximum Tilt: 402 mm / 15.8 in
Maximum Angle: 25° either side
Blade Width at Maximum Angle: 2,636 mm / 103.8 in
Blade Capacity: 2.19 m³ / 2.86 yd³

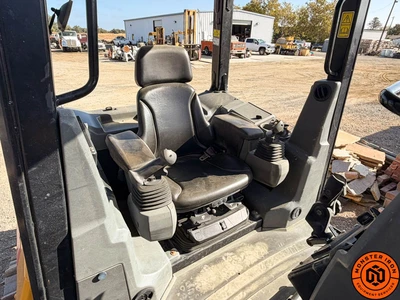

[Cab and Standards]
Sound Level: 77 dB(A)
Sound Level: 78 dB(A)
ROPS: SAE J397-OCT95, SAE J1040-May94, ISO 3471-94, ISO 3164:2008
FOPS: SAE J231-JAN81, ISO 3449:2005 Level III
[Selected Optional Equipment]
Cab Options: Cab with air conditioning; polycarbonate windows and air conditioning
Seat Options: Heated seat, heated controls, heated and ventilated seat options
Radio: AM/FM, Bluetooth
Sound Suppression: Available
SystemOne Track Options: 510 mm XL, 660 mm LGP and 762 mm LGP
Blades: VPAT XL, VPAT LGP and VPAT Intermediate
Rear Attachments: Drawbar, winch mounting, parallelogram ripper with three shanks and teeth
Machine Control: AccuGrade ready with Cat Grade Control Slope Assist; Power Pitch blade control
