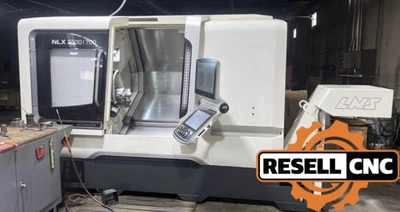

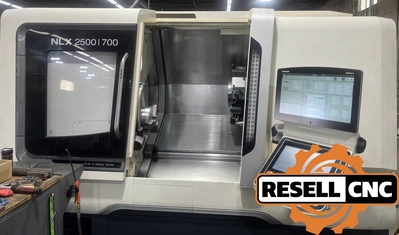

USED 2014 DMG Mori NLX2500/700MC

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false

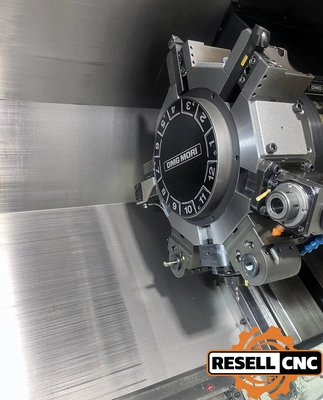

Additional Machine Specs: 12-Station BMT (Built-in Motor Turret)

ER32 Live Tooling Collets

Bar Capacity: 3.1
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor

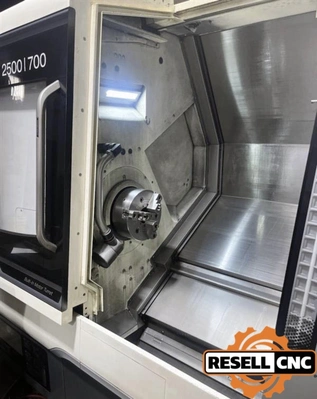

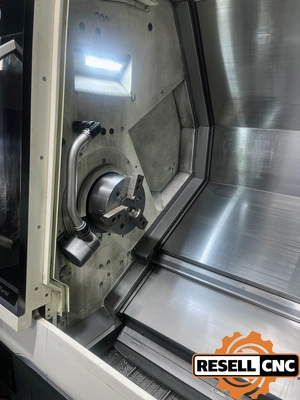

Chuck Description: 3-Jaw Hydraulic
Chuck Size: 10.0
Chuck Type: Hydraulic

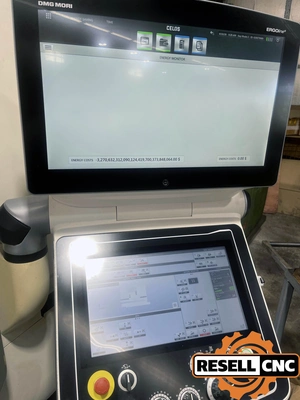

Control Make Model: MAPPS IV
Distance Between Centers: 27.56
Live Milling Hp: 7.4
Live Milling Max Rpm: 6000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: All Available Tooling, Tool Presetter
Max Cutting Turning Diameter: 14.4
Max Swing Over Bed: 14.4
Max Turning Cutting Length: 27.76
Programmable Tailstock: true
Rapid Traverse: 1181

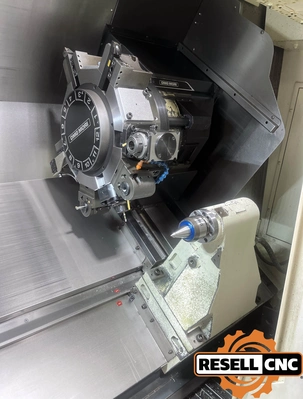

Single Turret: true
Single Turret Live Tooling: true
Spindle Bore: 3.15
Spindle Motor: 25
Spindle Nose: A2-8
Spindle Speed: 4500.0
Sub Spindle: false

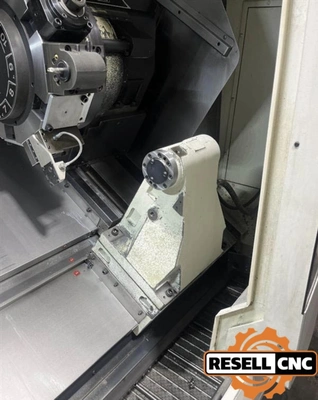

Tailstock: true
Tool Positions: 12.0
Total Spindles: 1
Turret Max Rpm: 6000
Twin Turret: false
X Travel: 10.24
Y Axis: false
