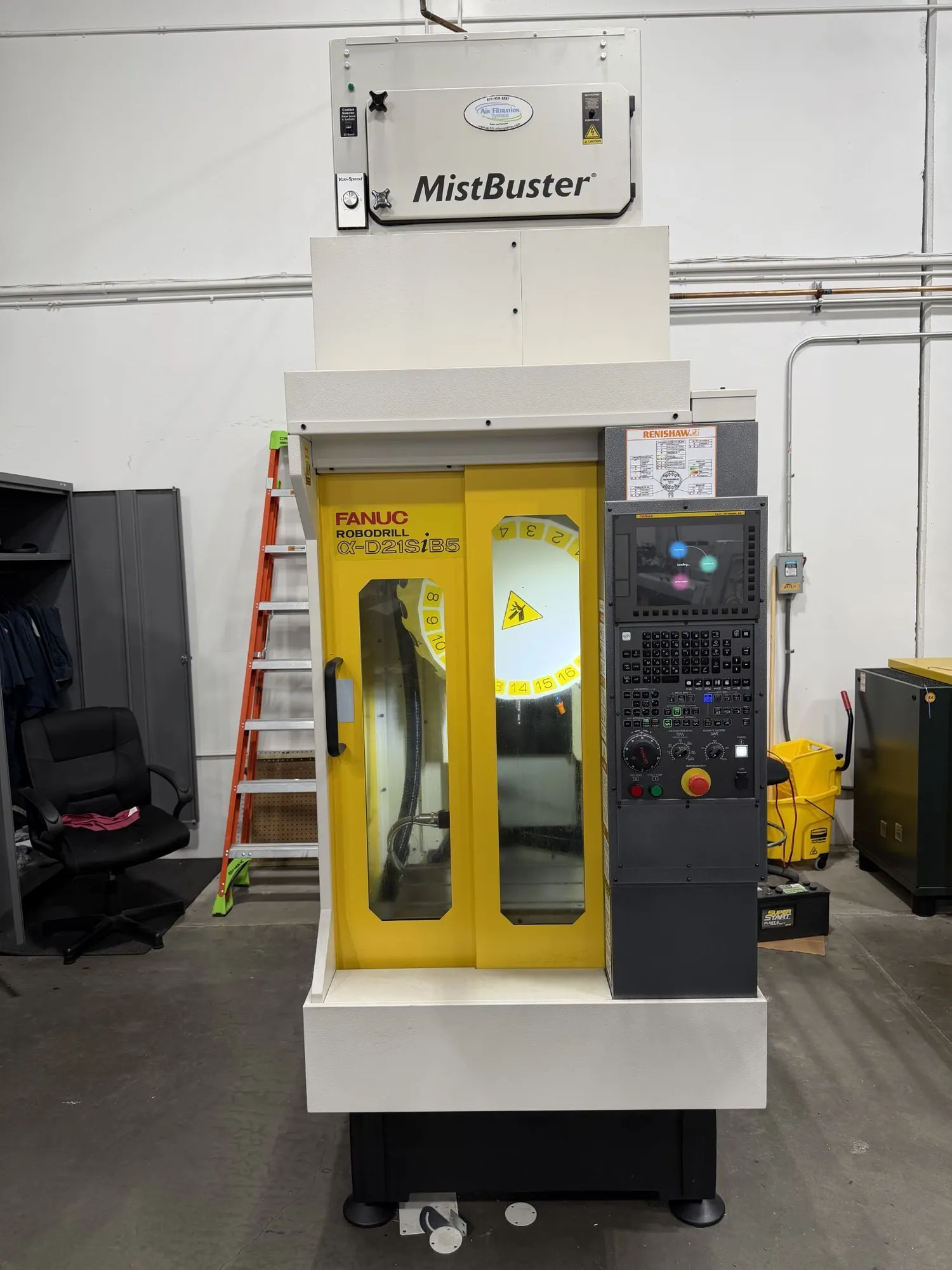

USED 2021 FANUC Robodrill Alpha D21SIB5
Overview
Fanuc Robodrill Alpha D21SIB6 Drilling and Tapping Machine, New in 2021
Like New! Installed in 2024 - Never Used
Specs
General Specifications:
X-Axis Travel: 300 mm (11.8")
Z-Axis Travel: 330 mm (13")
Table Size: 500 x 300 mm (19.7" x 11.8")
Max Table Load: 100 kg (220 lb)
Spindle Speed: 10,000 RPM (24,000 RPM optional)
Spindle Motor Power: 11 kW (15 hp) standard
Spindle Taper: BBT30 / HSK-E32
Tool Change Time: 0.7 sec (tool-to-tool), 1.3 sec (chip-to-chip)
Rapid Traverse Rate: 54 m/min (2,125 ipm)
Positioning Accuracy: ±0.003 mm (±0.00012")
Repeatability: ±0.002 mm (±0.00008")
Tool Capacity: 21
Machine Dimensions: 68.9" x 63"
Machine Weight: 7,716 lbs
Equipped With
Fanuc 31i-B5 Plus CNC Control
Renishaw Probe Kit
4th Axis Wired
Mist Buster Mist Collector
All Available Tooling and Manuals
