| X-Axis | 12.6" | 320.04 mm |
| Y-Axis | 9.8" | 248.92 mm |
| Z-Axis | 6.49" | 164.85 mm |
| Auto Threading (Yes/No) | No | No |
| Submerged (Yes/No) | No | No |
| Control | CNC | CNC |
SPECIFICATION:
X-Axis Travel: 12.6"
Y-Axis Travel: 9.8"
Z-Axis Travel: 6.49"
U/V Travel: 1.25" x 1.25"
Taper Capability: 15 Deg @ 4.0"
Workpiece Dimensions: 33.8" x 29.9" x 6.3"
Max. Workpiece Weight: 770 Lbs.
Table Dimensions: 22.5" x 18.8"
Wire Spool Size: 22 Lbs
Table Rapid Feed: 51.18 IPM
Wire Diameter Range: .004" - .012"
Approx. Dimensions: 57" x 77" x 80"
Approx. Weight: 4,210 Lbs
Equipped With:

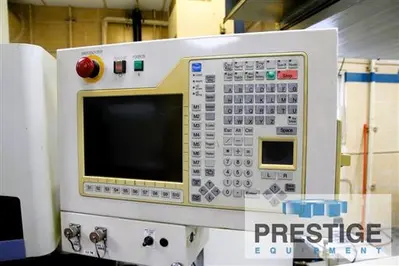

Mitsubishi RAS-1 CNC Control S/N 0233
Hand Pendant Controller

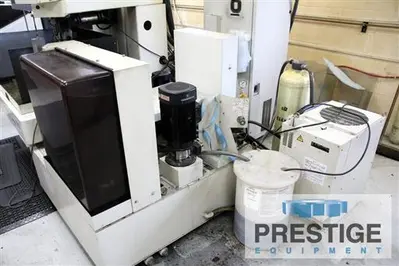

Mitsubishi TR90D Dielectric Fluid Reservoir

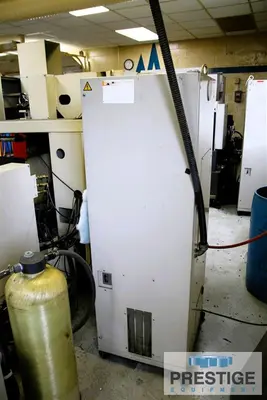

Unit Cooler
15 KVA Transformer
LOCATION:
Under Power In Midwest CNC Machining Facility
Features:
Mitsubishi RAS-1 CNC Control
Hand Pendant Controller
Dielectric Fluid Reservoir
Cooler
Transformer
