API Schmidt-Bretten SIGMA 90V SAV Plate Heat Exchanger USED
Overview
This listing is for a USED API Schmidt-Bretten SIGMA 90V SAV plate heat exchanger. The gasketed plate configuration transfers heat between two separate process-fluid circuits through a compressed plate pack, allowing service access through the movable frame plate. Both pressure chambers are rated for allowable operating pressure from 0.7 to 1 bar and temperatures up to 120°C.
Specs

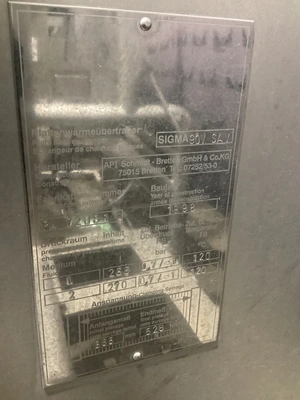

IDENTIFICATION
Manufacturer: API Schmidt-Bretten GmbH & Co. KG
Product Family: SIGMA
Model / Type: SIGMA 90V SAV
Serial Number: PA 72081
Product Type: Plate heat exchanger
Condition: USED
YOM: 1998
HEAT EXCHANGER CONFIGURATION
Heat Exchanger Type: Gasketed plate
Heat Transfer Method: Indirect plate-to-plate
Process Circuits: 2
Pressure Chambers: 2
Plate Pack: Removable / compressible
Frame Configuration: Fixed and movable pressure plates
PRESSURE CHAMBER 1
Chamber Volume: 266 L
Allowable Operating Pressure: 0.7 to 1 bar
Allowable Operating Temperature: 120°C
Process Medium: Not specified
PRESSURE CHAMBER 2
Chamber Volume: 270 L
Allowable Operating Pressure: 0.7 to 1 bar
Allowable Operating Temperature: 120°C
Process Medium: Not specified

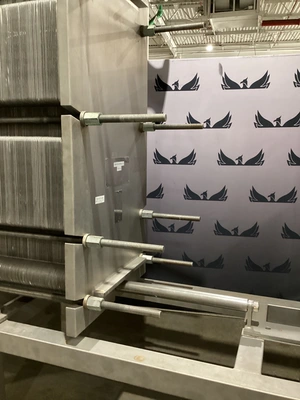

PLATE PACK / CLAMPING
Initial Clamping Dimension: 565 mm
Final Clamping Dimension: 528 mm
Clamping Method: Threaded tie-bolt compression

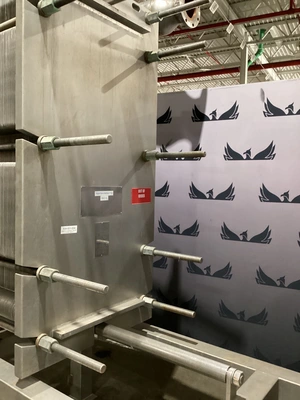

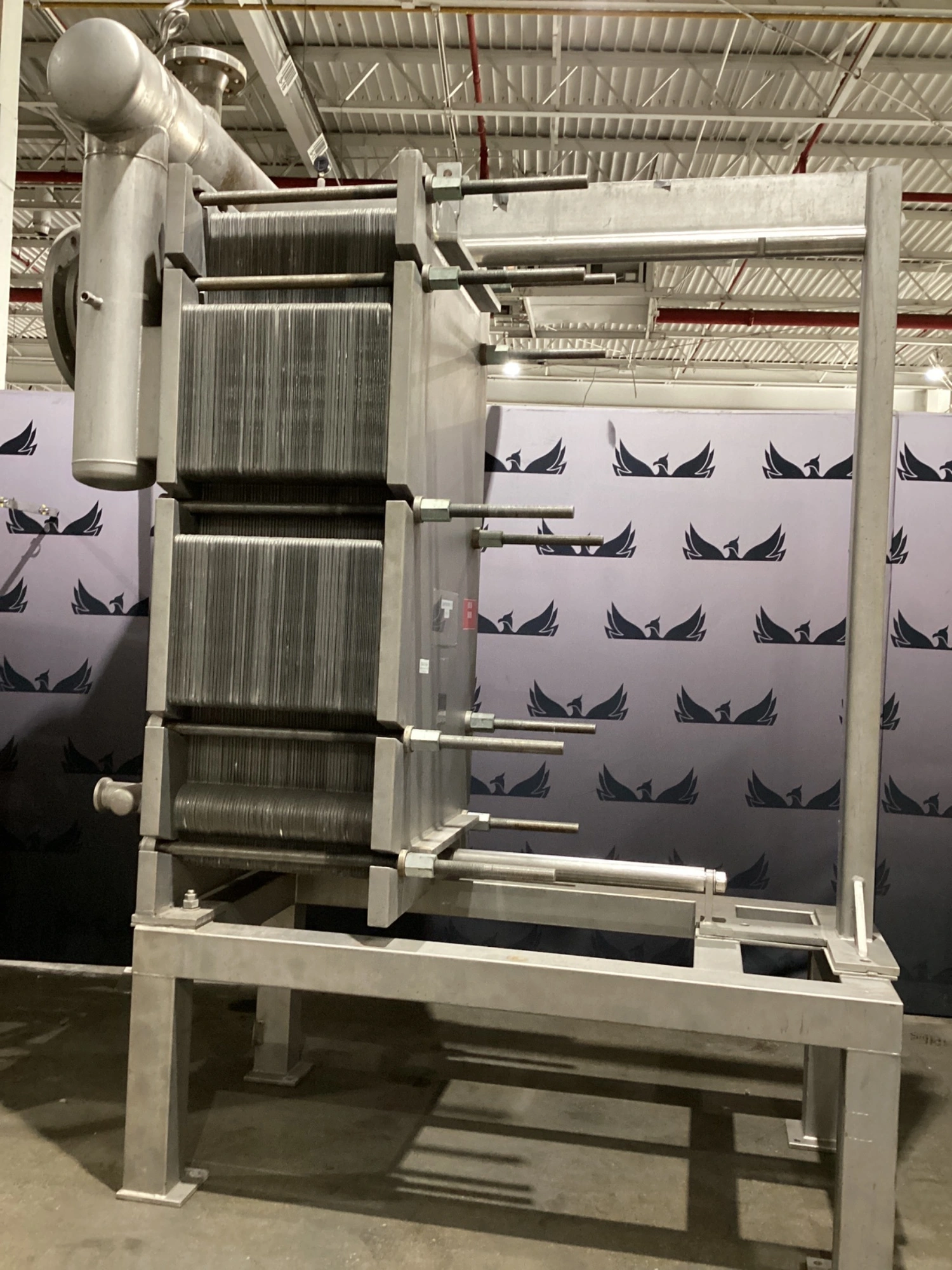

FRAME / INSTALLATION
Frame Construction: Floor-standing
Support Configuration: Integrated base frame
Plate-Pack Support: Horizontal carrier structure
Clamping Hardware: Threaded tie rods and nuts
Installation: Fixed floor installation
