USED 2022 FICEP Energy 3202GDX
Overview

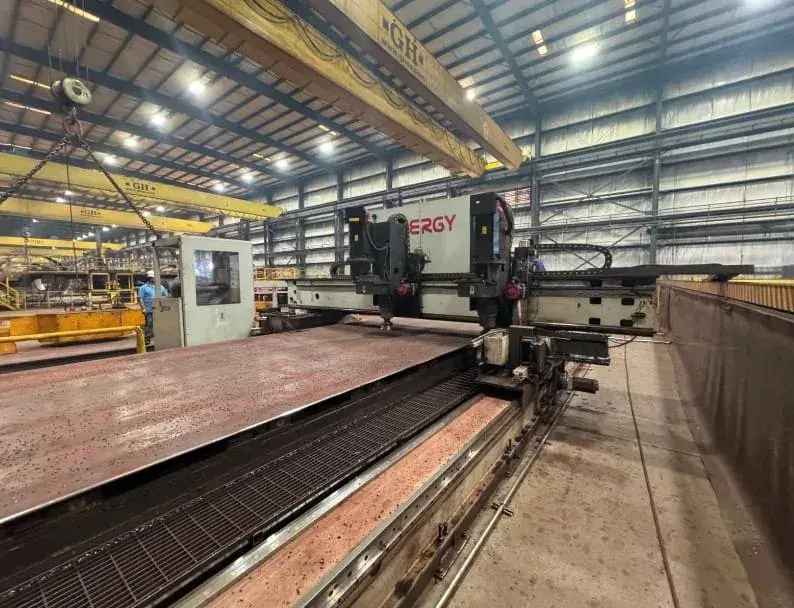

2022 FICEP Energy 3202GDX Beam Line, pre-owned and professionally maintained. Ideal for industrial applications, this machine offers advanced features and reliable performance for efficient beam processing. Excellent choice for robust production needs.
Specs
2022 FICEP Energy 3202GDX Beam/Drill Lines #8391
SPECIFICATIONS :
Plate Thickness: 10 - 140 mm
Spindle Drill Feed Rate: 40 - 1000 mm/min
Plate Width: 100 - 3200 mm
Spindle Fast Approach/Return Speed: 20 m/min
Plate Max Length: 28000 mm
C-Frame Max Longitudinal Speed: 30 m/min
Max Diameter of Milling Tools: 300 mm
Mill Heads Cross Positioning Speed: 30 m/min
Max Drilling Thickness: 140 mm
Machine Weight: 25000 Kg
Spindle Drive Performance (S1): 40 kW
Power Requirement: 400V - 50Hz - 3 Ph
Spindle Rotation Speed: 5000 RPM
EQUIPPED WITH :
1 Spindle Per Vertical Drill Head
Ficep Pegaso Control
2 Vertical Milling/Drilling Heads
ISO 50 Big Plus Toolholder
3D Graphics
On Board Distribution System
Automatic Device to Detect Piece Plate Orientation
Tool Change Systems with 3 Positions
Drilling Programming
Windows 10 Operative System
