USED 2016 DUGARD 200HT
Overview

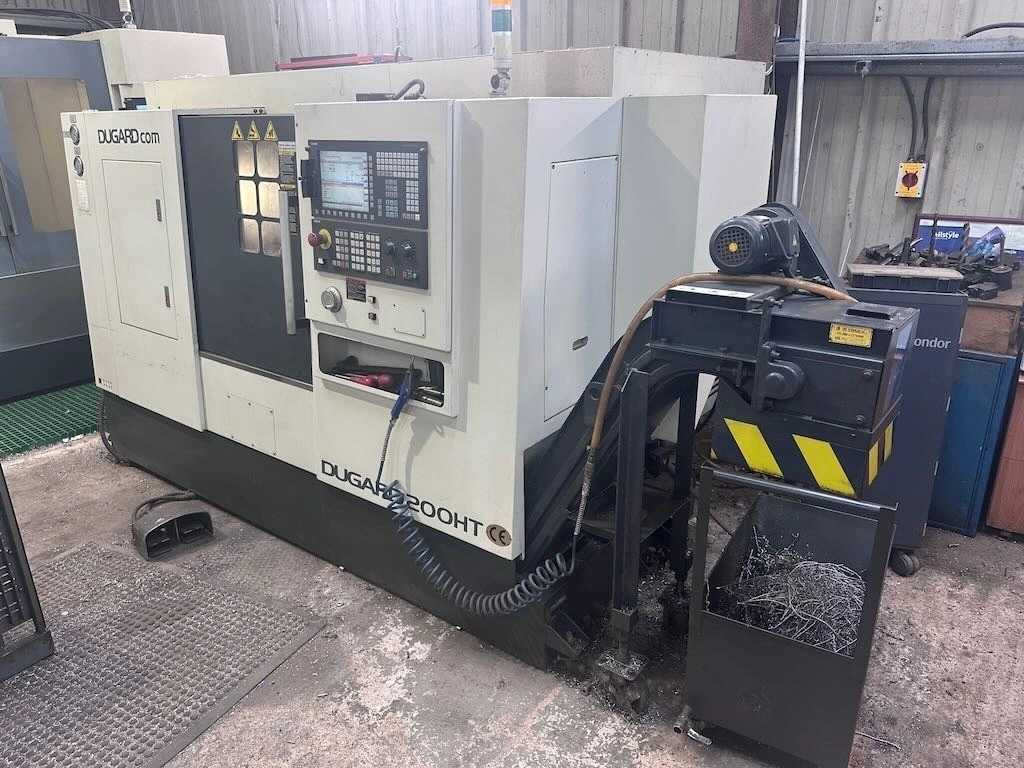

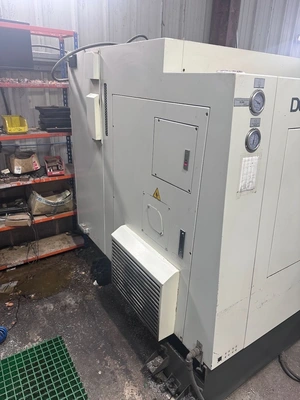

2016 Dugard 200HT CNC slant-bed turning centre fitted with Siemens SINUMERIK 828D CNC control, 12-station turret, hydraulic tailstock and swarf conveyor.
The machine offers a maximum turning diameter of 300 mm, a maximum turning length of 479 mm, and a generous 65 mm bar capacity, along with a 15 kW spindle capable of speeds up to 4,500 rpm.
This machine is particularly well equipped, with a collet chuck and an extensive range of collets, an additional 3-jaw power chuck, and a useful selection of turret tooling and toolholders.
Specs
Specification:
Year: 2016

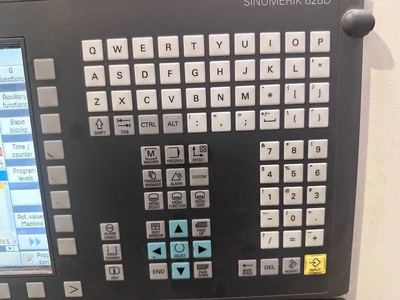

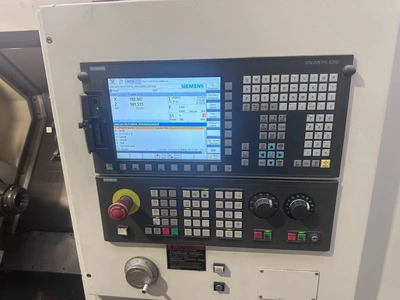

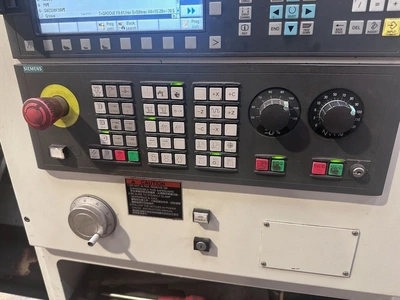

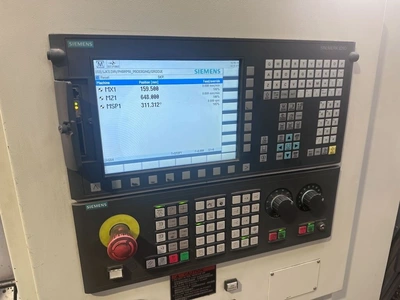

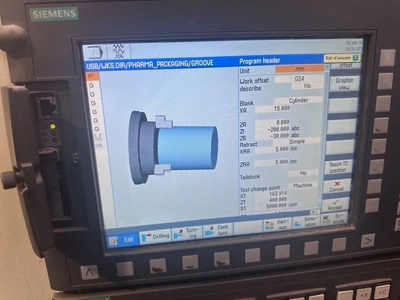

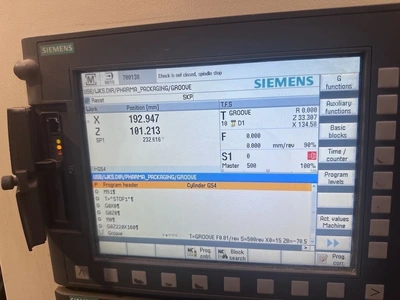

Siemens SINUMERIK 828D CNC
Maximum swing: 470 mm
Maximum turning diameter: 300 mm
Maximum turning length: 479 mm
Distance between centres: approx. 620 mm
X-axis travel: 176 mm
Z-axis travel: 520 mm
ASA A2-6 spindle
Maximum spindle speed: 4,500 rpm
Spindle power: 15 kW
Maximum bar capacity: 65 mm

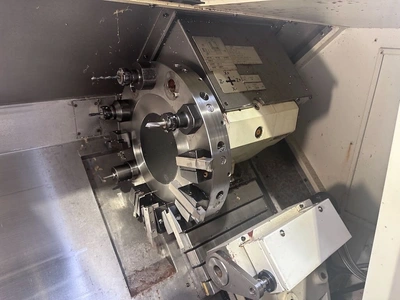

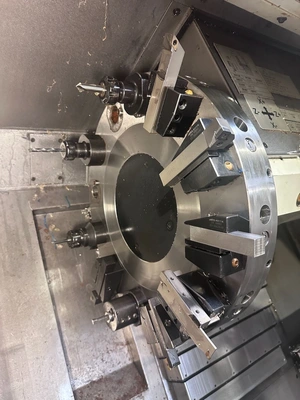

12-station turret
25 × 25 mm tool capacity
Ø40 mm boring-bar capacity
X/Z rapid traverse: 30/30 m/min

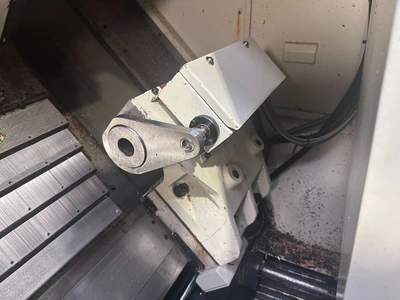

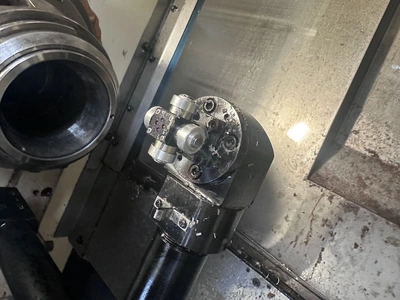

MT4 hydraulic tailstock
Tailstock body travel: 450 mm
Tailstock quill travel: 100 mm
Swarf conveyor and collection bin
Coolant system
Collet chuck
Selection of collets

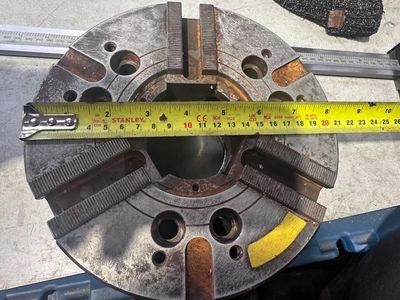

Additional 3-jaw power chuck
Selection of turret tooling
415 V
Machine weight: 3,850 kg

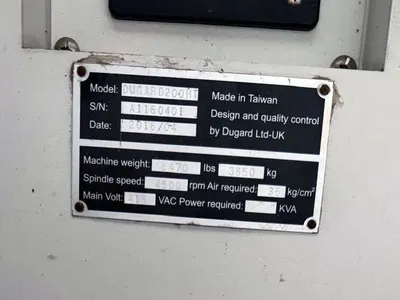

Serial No. A1160401
Manufacture date: April 2016
Equipped With
hydraulic tailstock

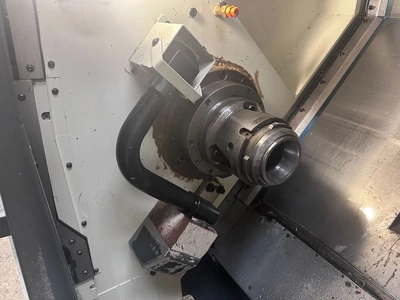

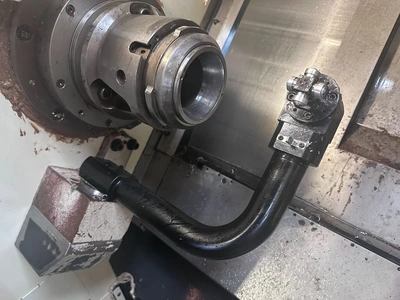

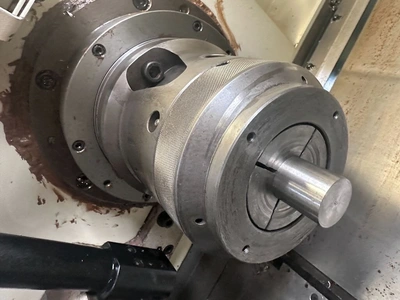

collet chuck currently fitted to the main spindle

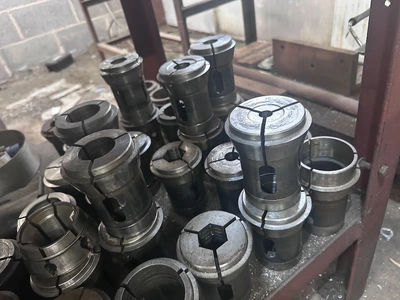

a good selection of matching collets
additional 3-jaw power chuck
considerable quantity of turret tooling/toolholders
boring-bar holders
axial drilling holders
ER-type collet/tool holders

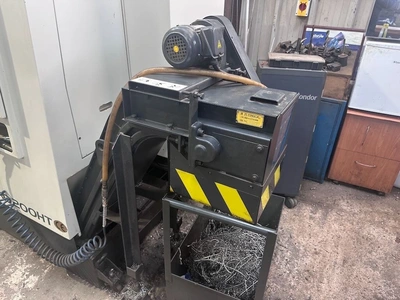

swarf/chip conveyor and collection bin
coolant system
foot pedal chuck operation
fully enclosed guarding
