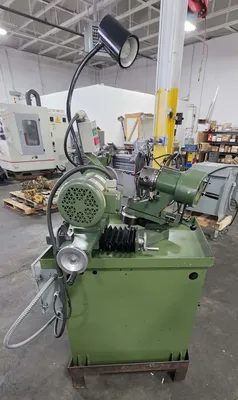

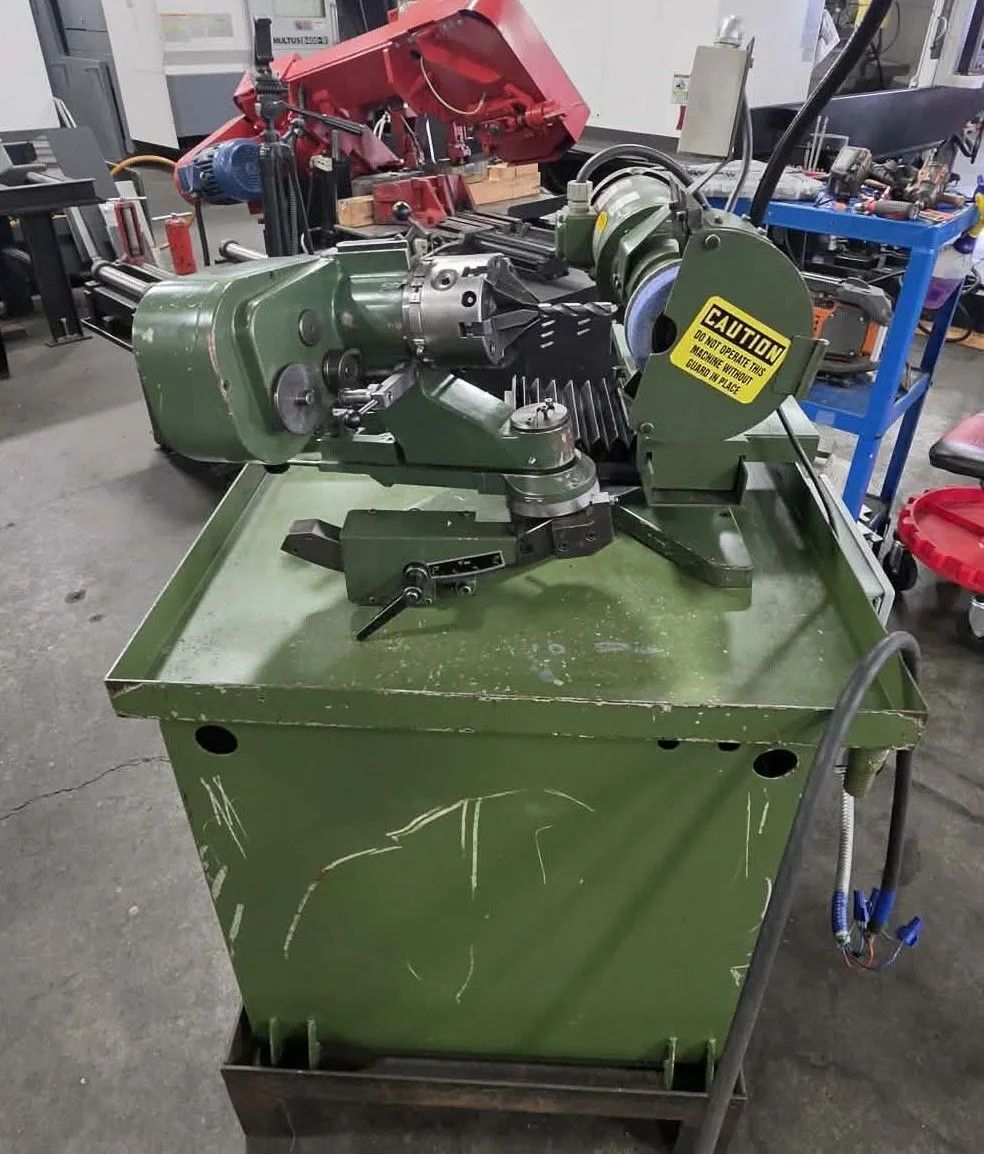

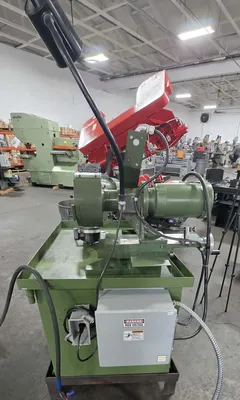

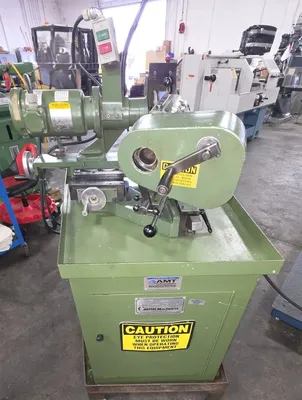

USED 2003 RUSH 132C

The Rush Model 132C is a versatile, accurate, and rugged drill and tool grinder designed for rapid setup and high performance.

Key Specifications & Capacities
Drill/Tool Diameter Range: 0.080″ (2 mm) to 1.25″ (32 mm)
Flute Capacity: Grinds tools with 1, 2, 3, 4, 5, 6, 7, 8, or 10 flutes
Tool Shanks: Straight shanks from 0.080″ (2 mm) to 1.25″ (32 mm);
Morse taper shanks up to #4
Maximum Drill Length: 14″ (356 mm); up to 22″ (559 mm) with the optional spindle extension (P/N SP32)
Motor Power: 0.5 hp
Maximum RPM: 3,450 RPM

Core Features
Point Splitting & Web Thinning: Built-in capability for fast grinding of High-Speed Steel (HSS) or carbide drill points.

Application Versatility: Easily handles step drills, taps, reamers, countersinks, and end mill ends with minimal setup adjustments.

Quick-Change Workhead: The standard workhead can be exchanged in under a minute with an optional air-bearing attachment for grinding end mill outer diameters (ODs).

Precision Construction: Includes adjustable tapered gibs on ways, graduated handwheels in thousandths of an inch or metric increments, and a sealed ball-bearing spindle assembly designed to minimize runout.
