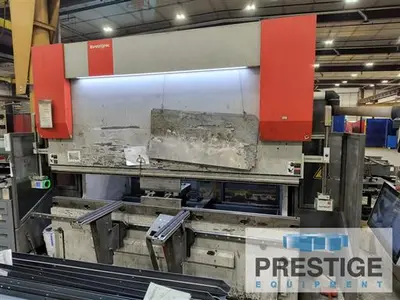

USED 2014 BYSTRONIC XPERT 150/3100
Overview
Specifications
| Tonnage | 165 T | 149.686 t |
|---|---|---|
| Type | HYD | HYD |
| Overall Length | 10.17' | 3.1 m |
| Between Housings | 9' | 2.7 m |
| Stroke | 12.4" | 314.96 mm |
| # Axis | 9 | 9 |
CAPACITY:
Maximum Tonnage Capacity: 165 Ton
Overall Working Length: ........... 122.04"
Distance Between Housings: 108"
Open Height: 19.7"
Throat Depth: 15.8"
Stroke Length: 12.40"
Speed - Approach: 7.48 IPS
Speed - Working: 0.78 IPS
Speed - Return: 7.87 IPS
Main Motor (480/3/60).................. 30 HP: 30 HP
Approx. Dimensions, L x W, H: 153.2" x 74.8" x 104.7"
Approx. Shipping Weight: 24,500 Lbs
Equipped With:

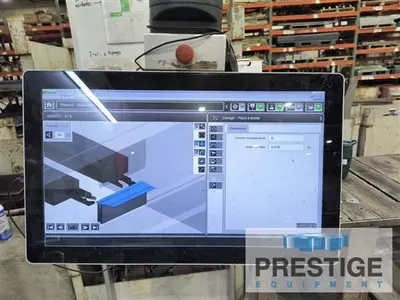

Bystronic 9-Axis CNC Control
Programmable Ram Depth (Y1,Y2)

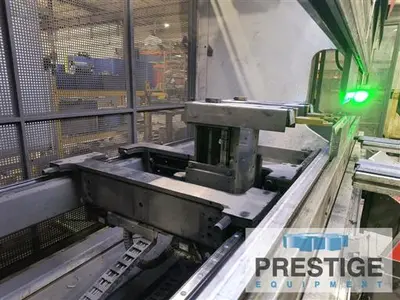

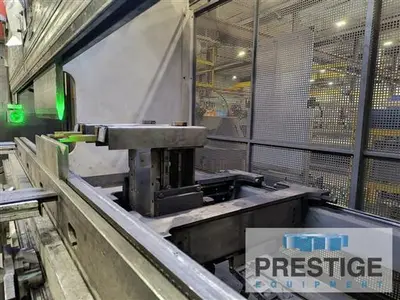

6-Axis CNC Back Gauge (X,X1,R,R1,Z1,Z2)
CNC Crowning
Bystronic RF-A Hydraulic Upper Clamping
Wila Manual Lower Clamping
Front Support Arms
Electric Foot Switch Control
Fast Bend Safety System With Automatic Height Adjust
480 V, 3 PH Electrics
NOTES:
Inspect in Plant Under Power
Features:
Bystronic 9-Axis CNC Control
Programmable Ram Depth (Y1,Y2)
6-Axis CNC Back Gauge (X,X1,R,R1,Z1,Z2)
CNC Crowning
Bystronic RF-A Hydraulic Upper Clamping
Wila Manual Lower Clamping
Front Support Arms
Electric Foot Switch Control
Fast Bend Safety System With Automatic Height Adjust
