| Tonnage | 138 T | 125.192 t |
| Type | 'HYD' | 'HYD' |
| Overall Length | 9.83' | 3 m |
| Between Housings | 8.83' | 2.7 m |
| Stroke | 5.91" | 150.11 mm |
SPECIFICATIONS:
Tonnage: 138 Ton
Maximum Bending Length: 118"
Distance Between Housings: 106"
Stroke Of Ram: 5.91"
Open Height: 16.54"
Throat Depth: 15.76"
Main Motor: 15 HP
Approximate Dimensions: 154" L x 96" H x 59" W
Approximate Shipping Weight: 19,400 Lbs.
Equipped With:

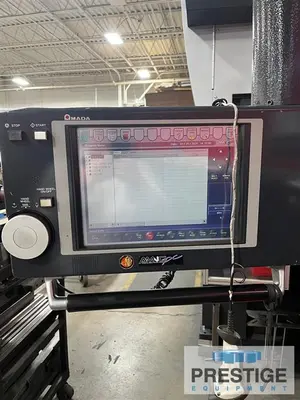

Amada AMNC-PC 7-Axis CNC Controller (Touch Screen)
D1,D2, Ram Depth, L1,L2 Back Gauge (3" Taper Max.)
Z Vertical Finger, Y1,Y2 Horizontal Finger
Bed Crowning Control
Electric Foot Switch & Full Length Tredal Controls
Upper Ram Tool Holders
NOTE:
Inspect in Plant Under Power
Features:
Amada AMNC-PC 7-Axis CNC Controller (Touch Screen)
D1,D2, Ram Depth, L1,L2 Back Gauge (3" Taper Max.)
Z Vertical Finger, Y1,Y2 Horizontal Finger
Bed Crowning Control
Electric Foot Switch & Full Length Tredal Controls
Upper Ram Tool Holders
