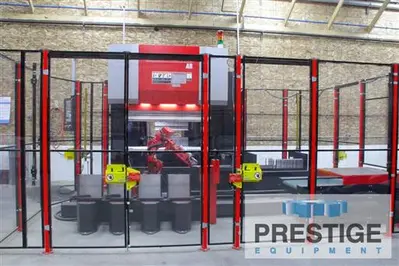

USED 2017 AMADA EG 6013 AR

CAPACITY:
Maximum Tonnage Capacity: 67 Ton
Maximum Bending Length: 53.1"
Stroke Length: 6"
Open Height: 16.5"
Approach Speed: 8.7"/sec.
Bend Speed: 1"/sec.
Return Speed: 8.7"/sec.
Floor Space: 211" L x 154" Wide x 105" High
Weight of Brake: 8,200 Lbs.

ROBOT:

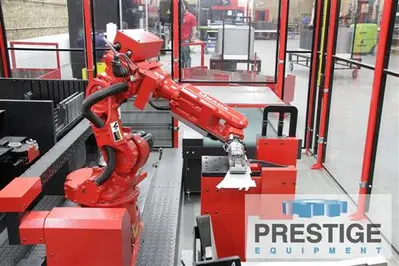

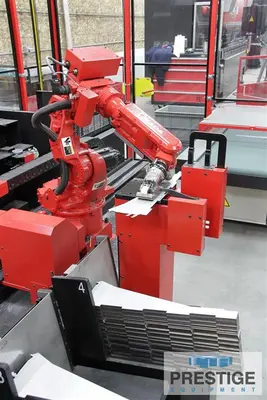

Axis Configuration: 6-Axis
Carriage Axis: 120"
Max. Part Weight: 22 Lbs.
Maximum Reach P-Point: 39.25"
Tool Holder Length: 49.2"
Max. Tool Length: 31.5"
Number of Tools: 10

Equipped With:
AMNC 3i CNC Control with Vertical 18.5" Multi-Touch Display
Dual Electric Servo Power Drive
Automatic Tool Changer
Yaskawa MH6S-10 High Precision 7-Axis Bending Robot
Potentiometer Backgauge with Side Gauge System
High-Rigidity Frame for Large Open Height and Stroke
3 Gripper Station, Seamless Tool Change to Production
Load/Unload to Drop Box or Conveyor
Tool Package

NOTE:
Inspect in Plant Under Power, Low Hours, Excellent Condition
Hours, 4,581 Total, 3,961 Run Time

Features:
AMNC 3i CNC Control with Vertical 18.5" Multi-Touch Display
Dual Electric Servo Power Drive
Automatic Tool Changer
Yaskawa MH6S-10 High Precision 7-Axis Bending Robot
Tool Package
