| Tonnage | 88 T | 79.832 t |
| Type | HYD | HYD |
| Overall Length | 6.72' | 2 m |
| Stroke | 5.9" | 149.86 mm |
| # Axis | 5 | 5 |
CAPACITY:
Press Force: 88 Ton
Overall Length: 80.70"
Maximum Stroke: 5.90
Throat Depth: 24"
Open Height: 21.65"
Rapid Approach Speed: 354.33 IPM
Working Speed: 59.05 IPM
Return Speed: 354.33 IPM
Approximate Machine Weight: 16,500 Lbs.
Equipped With:

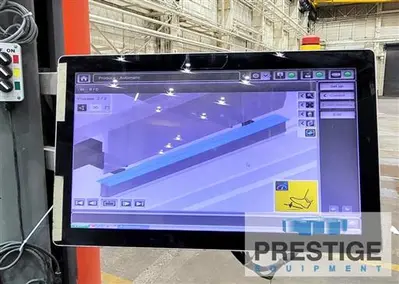

Byvision CNC Controller

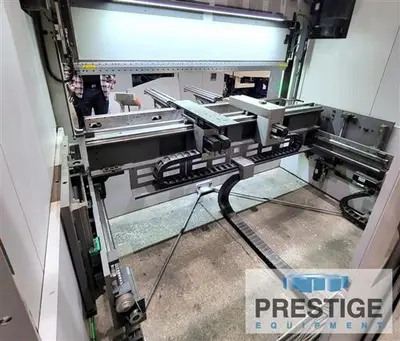

5-Axis Back Gauge
Hydraulic Upper and Lower Clamping
Wila New Standard Clamping
(2) Front Support Arms
Pedestal with Electric Foot Switch
Features:
Byvision CNC Controller
5-Axis Back Gauge
Hydraulic Upper and Lower Clamping
Wila New Standard Clamping
(2) Front Support Arms
Pedestal with Electric Foot Switch
