| Tonnage | 110 T | 99.79 t |
| Type | HYD | HYD |
| Overall Length | 9.85' | 3 m |
| Between Housings | 8.38' | 2.6 m |
| Stroke | 3.94" | 100.08 mm |
CAPACITY:
Tonnage: 110 Ton
Overall Length of Bed & Ram: 118.2"
Distance Between Housings: 100.5"
Stroke Of Ram: 3.94"
Open Height: 14.58"
Throat Depth: 15.76"
Main Motor: 10 HP
Approximate Weight: 14,200 Lbs
Equipped With:

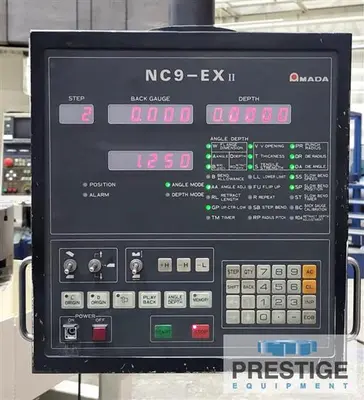

NC9EX-II 3-Axis CNC Controller
Two Speed Hydraulic Power Unit
Adjustable Stroke
Flush Floor Mounted
Upper Punch Holders

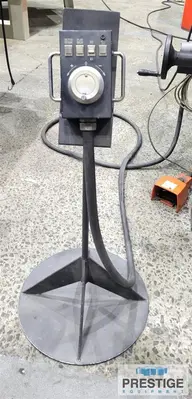

Full Length Foot Treadle
NOTE:
Inspect In Our Philadelphia PA Warehouse
Features:
NC9EX-II 3-Axis CNC Controller
Two Speed Hydraulic Power Unit
Adjustable Stroke
