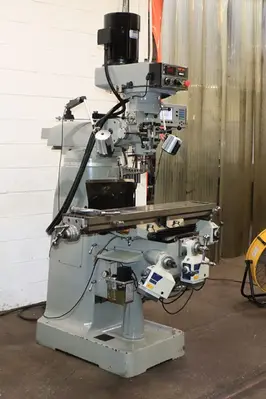

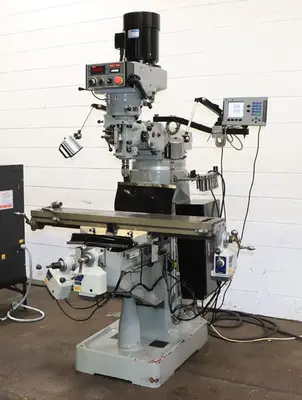

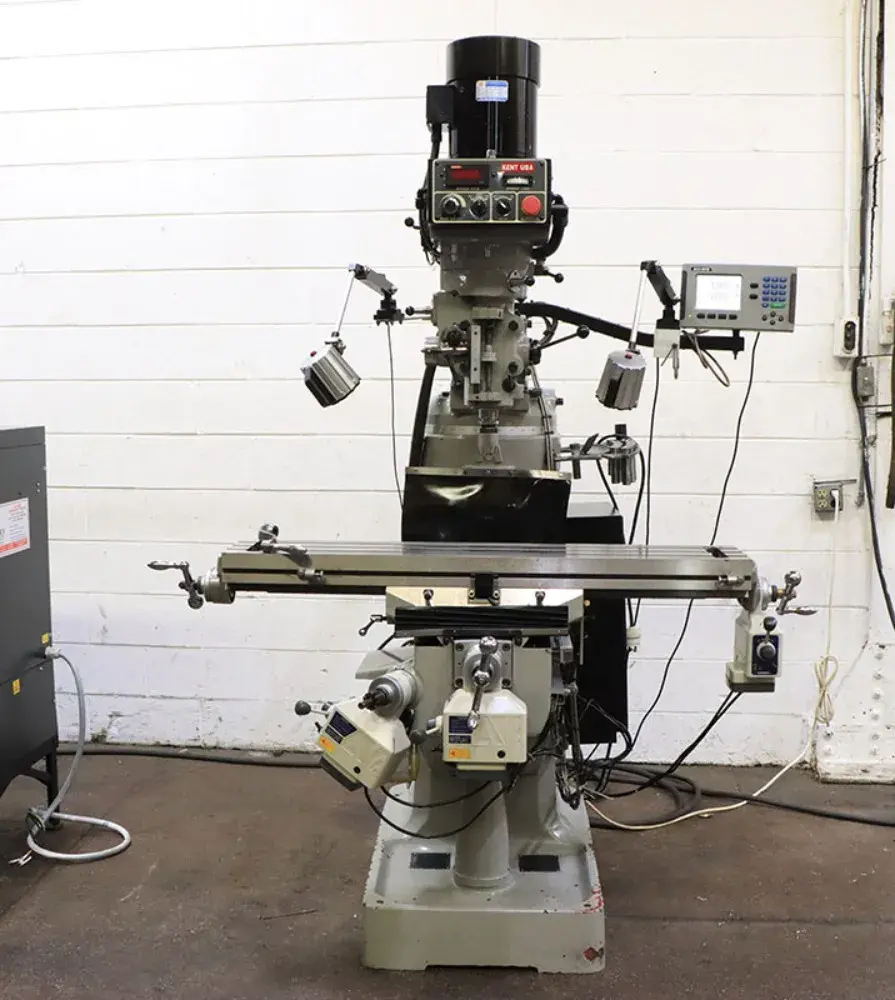

USED 2014 KENT KTM3VSF
Overview

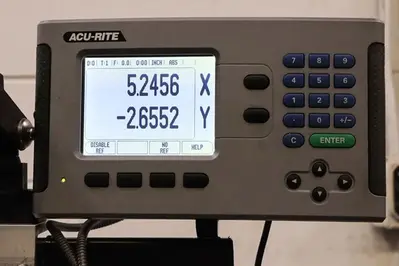

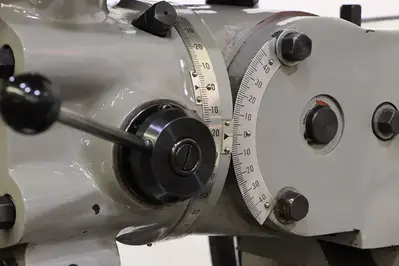

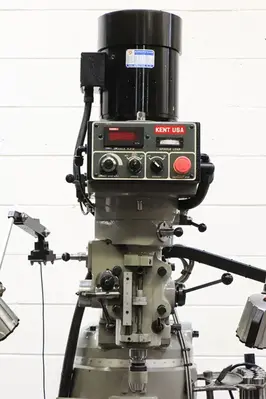

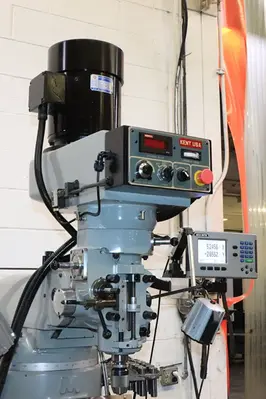

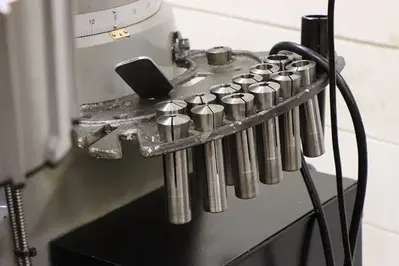

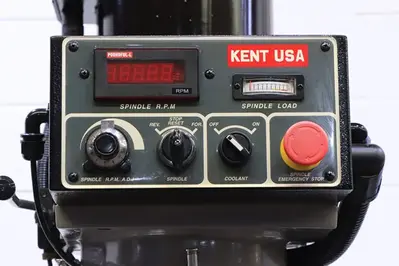

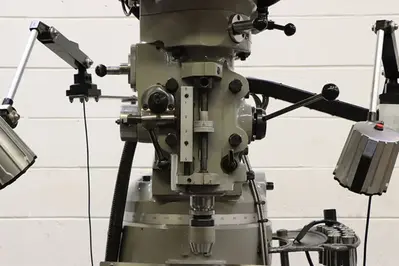

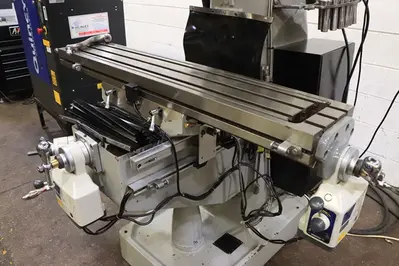

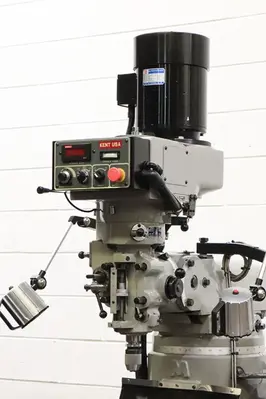

Item details: TABLE WORKING SURFACE . 9" X 49" NUMBER OF T-SLOTS (WIDTH) . 3 (5/8") MAXIMUM TABLE LOAD CAPACITY . 750 LBS RANGE: LONGITUDINAL, MANUAL (X) 35" CROSS (Y) . 12" VERTICAL, KNEE . 15" QUILL (Z) . 5" RAM TRAVEL . 14.5" HEAD TILT, LEFT AND RIGHT . 90 DEGREES HEAD TILT, FRONT TO REAR, EACH WAY . 45 DEGREES TURRET ROTATION . 360 DEGREES (3) POWER QUILL FEEDS. .0015, .003, .006 I.P.R. QUILL DIAMETER . 3-3/8" INFINITELY VARIABLE SPINDLE SPEEDS . 60 - 4,500 RPM SPINDLE TAPER . R-8 MAXIMUM COLLET CAPACITY . 3/4" APPRROXIMATE DIMENSIONS . 75" x 74" x 90"H APPROXIMATE WEIGHT . 2,600 LBS. EQUIPPED WITH: AC FREQUENCY INVERTER SPINDLE DRIVE ACU-RITE TWO-AXIS DIGITAL READOUT ALIGN POWER FEED FOR LONGITUDINAL TABLE TRAVEL ALIGN POWER FEED FOR CROSS TABLE TRAVEL ALIGN POWER FEED FOR KNEE VERTICAL TRAVEL HARDENED AND GROUND DOVETAIL WAYS FOR X & Y AXES MEEHANITE CASTING WORKLIGHT ONE-SHOT LUBRICATION SYSTEM 3 HORSE POWER SPINDLE DRIVE MOTOR
Arrival date: 09-21-2026
Specs
Dimensions L x W x H, inches: Unavailable
Weight: 1 lb.
Capacity: 9" X 49"
Electrical: -
Available quantity: 1
