USED 1980 HARDINGE HLVEM

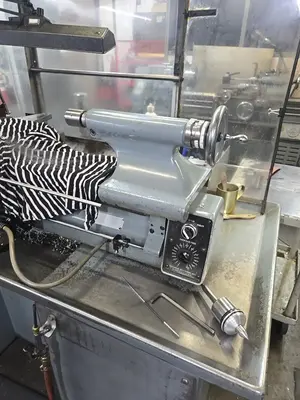

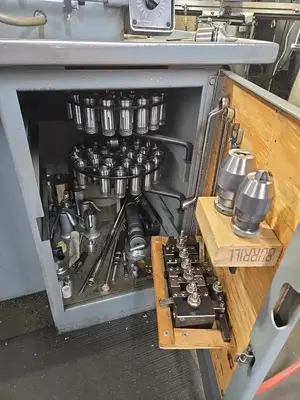

Item details: SPINDLE CONSTRUCTION . HARDINGE BALL BEARING SPINDLE NOSE . HARDINGE TAPERED SPINDLE CAPACITY: WITH ROUND TYPE 5C COLLETS . 1-1/16" WITH STEP CHUCKS . 1-1/16" TO 6" WITH JAW CHUCKS . 5" WITH EXPANDING COLLETS . 3" VARIABLE SPINDLE SPEEDS . 125 - 3,000 R.P.M. HOLE THROUGH SPINDLE . 1-1/4" SWING OVER BED . 11" SWING OVER CARRIAGE . 9" SWING OVER CROSS SLIDE . 6" DISTANCE BETWEEN CENTERS . 18" COMPOUND SLIDE TRAVEL . 3" CARRIAGE POWER FEED RANGE . 5/16 - 7 I.P.M. CROSS SLIDE POWER FEED RANGE . 3/16 - 4 I.P.M. TAILSTOCK SPINDLE DIAMETER . 1-3/8" TAILSTOCK SPINDLE TAPER . #2 MT INCH THREADING RANGE IN GEARBOX (36) . 11 - 108 T.P.I. METRIC THREADING RANGE IN GEARBOX (36) 0.275 - 2.7 MM APPROXIMATE WEIGHT . 1,700 LBS. EQUIPPED WITH: - DUAL GEARBOX FOR PRECISION ENGLISH OR METRIC THREAD CUTTING - DUAL READING INCH/METRIC DIAL FOR COMPOUND AND TAILSTOCK - HARDINGE BALL BEARING QUICK ACTING 5C COLLET CLOSER - ASSORTMENT OF 5C COLLETS - ALORIS QUICK CHANGE TOOLPOST WITH HOLDERS - ALBRECHT DRILL CHUCK FOR TAILSTOCK - LIVE CENTER FOR TAILSTOCK - SELF-CONTAINED COOLANT SYSTEM - 0.5 - 1 HORSE POWER TWO-SPEED MAIN DRIVE MOTOR
Arrival date: 09-21-2026
