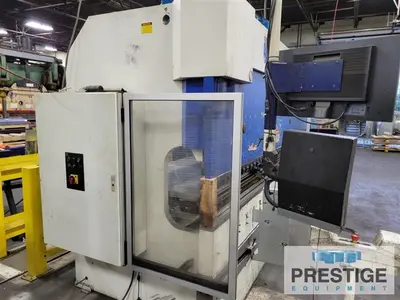

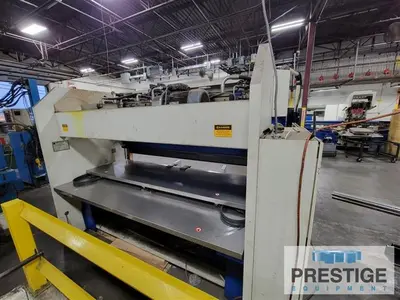

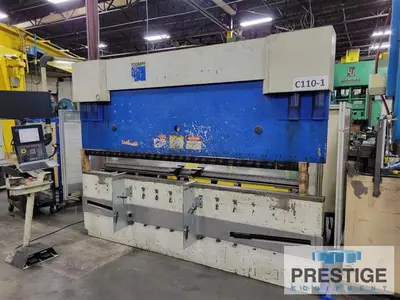

USED 2002 TRUMPF TRUMABEND C110
Overview
Specifications
| Tonnage | 121 T | 109.769 t |
|---|---|---|
| Type | 'HYD' | 'HYD' |
| Overall Length | 10.17' | 3.1 m |
| Between Housings | 8.82' | 2.7 m |
| Stroke | 7.87" | 199.9 mm |
CAPACITY:
Tonnage Capacity: 121 Tons
Maximum Bending Length: 122"
Distance Between Housings: 105.9"
Stroke Length: 7.87"
Open Height: 13.4"
Throat Depth: 16.5"
Travel In X-Axis: 19.69"
Travel In R-Axis: 13.4"
Travel Speed in X-Axis: 827 IPM
Travel Speed in R-Axis: 236 IPM
Travel Speed Y-Axis Approach: 236 IPM
Travel Speed Y-Axis Press: 19 IPM
Travel Speed Y-Axis Return: 189 IPM
Drive Motor: 10 HP
Approximate Shipping Weight: 16,940 Lbs.
Approximate Dimensions: 134" x 65" x 95" H
Equipped With:

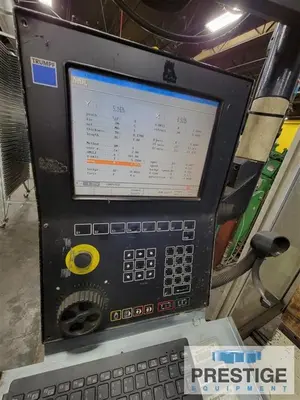

Delem 6-Axis Graphic CNC Control
(4) Cylinder Ram Drive
(4) Axis Back Gauge, X,R,Z1 and Z2
Electric Foot Switch Controls
(2) Sheet Supports
NOTE:
Inspect In Plant Under Power
Features:
Delem 6-Axis Graphic CNC Control
(4) Cylinder Ram Drive
(4) Axis Back Gauge, X,R,Z1 and Z2
Electric Foot Switch Controls
(2) Sheet Supports
