USED TR ELECTRONIC ZI-58

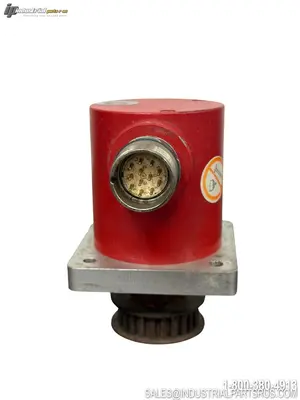

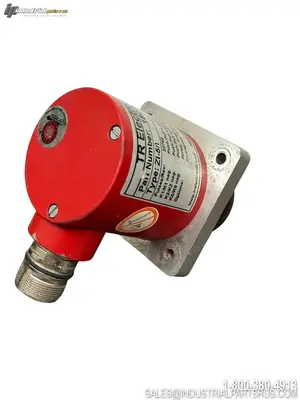

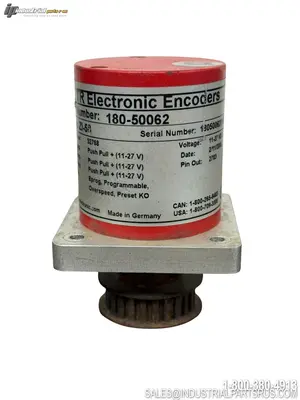

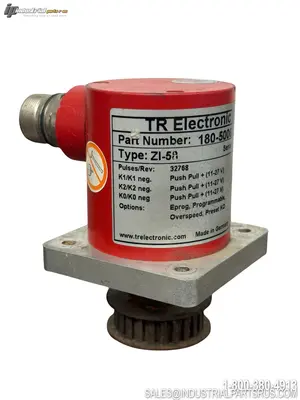

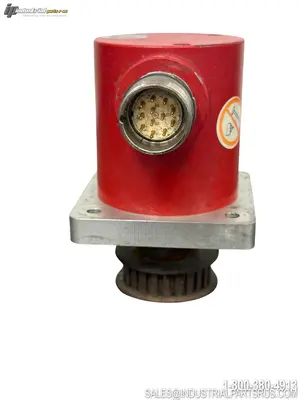

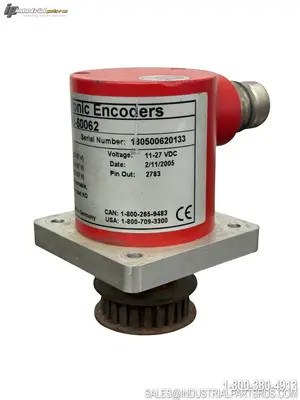

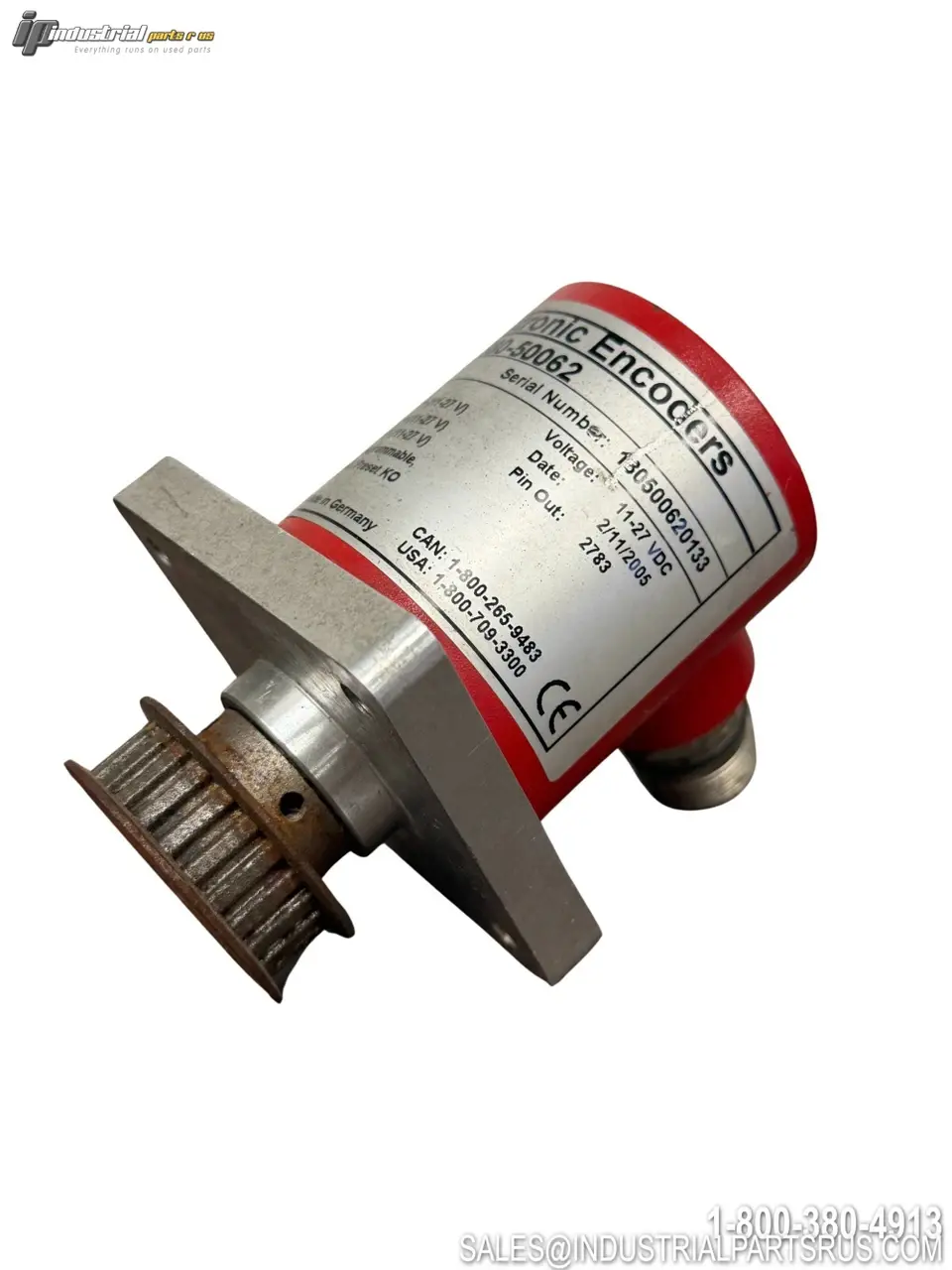

The TR Electronic 180-50062 is a ZI-58 incremental rotary encoder designed for industrial position and motion feedback applications. This encoder is rated for 32,768 pulses per revolution and operates from an 11–27 VDC supply. The nameplate identifies Push-Pull outputs for the K1/K1 neg., K2/K2 neg., and K0/K0 neg. signal channels. It also features EPROG programmability, overspeed functionality, and preset K0. The unit has a flange mounting plate, side-mounted circular electrical connector, and an attached timing pulley as pictured.
Specification
Value
Brand
TR Electronic
Part Number
180-50062
Type
ZI-58
Product Type
Incremental Rotary Encoder
Resolution
32,768 Pulses / Revolution
Supply Voltage
11–27 VDC
K1 / K1 Neg. Output
Push-Pull + (11–27 V)
K2 / K2 Neg. Output
Push-Pull + (11–27 V)
K0 / K0 Neg. Output
Push-Pull + (11–27 V)
Programming
EPROG Programmable
Additional Functions
Overspeed, Preset K0
Pin Out
2783
Electrical Connection
Side-Mounted Circular Connector
Mounting
Flange Mount
Date
2/11/2005
Country of Manufacture
Germany
Included
Encoder with attached mounting plate and timing pulley as pictured
We warranty all items for 30 days from date of purchase.
