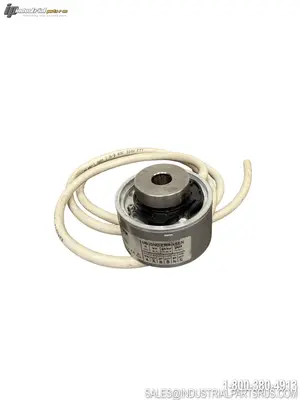

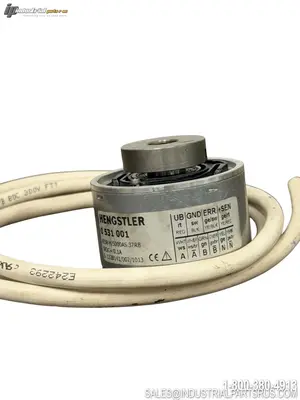

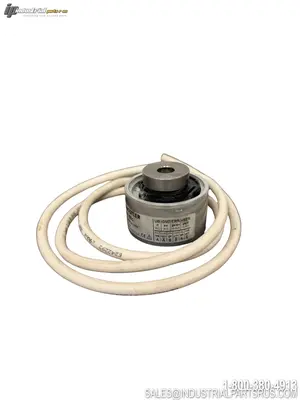

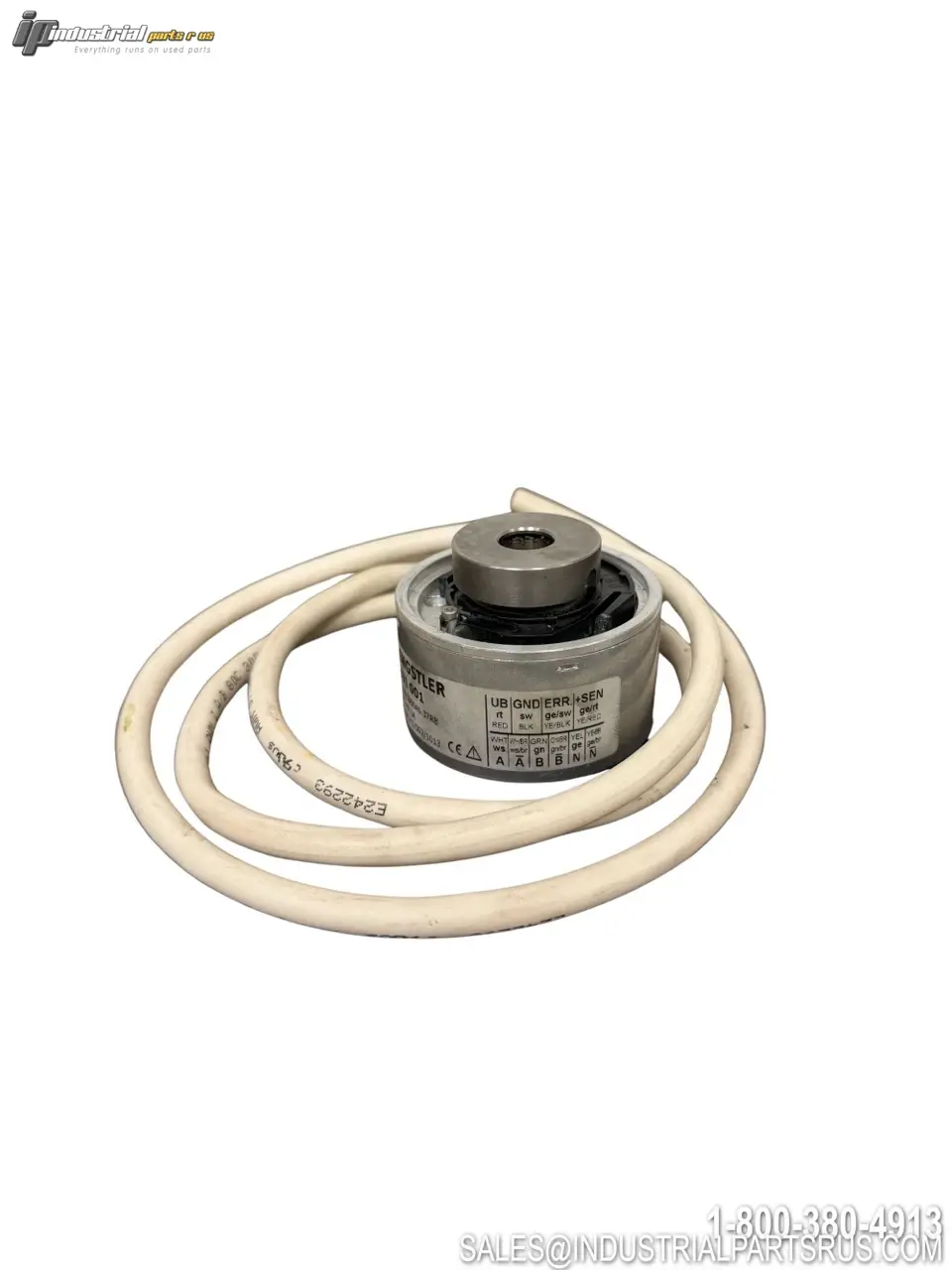

USED HENGSTLER RI58-H/5000AS.37RB

The Hengstler RI58-H/5000AS.37RB is an industrial incremental rotary encoder from the ICURO RI58 family featuring a 58mm housing diameter and a 12mm through-hollow shaft with synchro flange mounting. It delivers 5,000 pulses per revolution via RS422 differential output with Alarm signal, powered by 5VDC, and connects via a radial PVC cable. This encoder is well-suited for demanding applications including machine tools, CNC axes, packaging machinery, motors and drives, injection moulding machines, and sawing machines.
Specification
Value
Brand
Hengstler
Model / Part Number
RI58-H/5000AS.37RB
Series
ICURO RI58-H
Encoder Type
Incremental
Pulses Per Revolution (PPR)
5,000
Supply Voltage
DC 5V
Current (no load)
0.1A (typ.)
Output Signal Type
RS422 + Alarm
Output Channels
A, B, N + complementary (A̅, B̅, N̅) + Alarm
Flange Type
Synchro Flange (S.37)
Shaft Type
Hollow (through-hollow)
Shaft / Bore Diameter
12 mm
Housing Diameter
58 mm
Protection Class (shaft)
IP64
Connection Type
PVC Cable, Radial
Standard Cable Length
1.5 m
Max Operating Speed
3,000 RPM
Housing Material
Aluminum
Shaft Material
Stainless Steel
Shaft Bore Tolerance
H7 (0 ... +0.018 mm)
Cable Bending Radius (flexible)
≥ 100 mm
Cable Bending Radius (fixed)
≥ 40 mm
Certifications
CE, cULus (UL Listed), RoHS
Manufacturer
Hengstler GmbH
Manufacturer Location
Aldingen, Germany
We warranty all items for 30 days from date of purchase.
