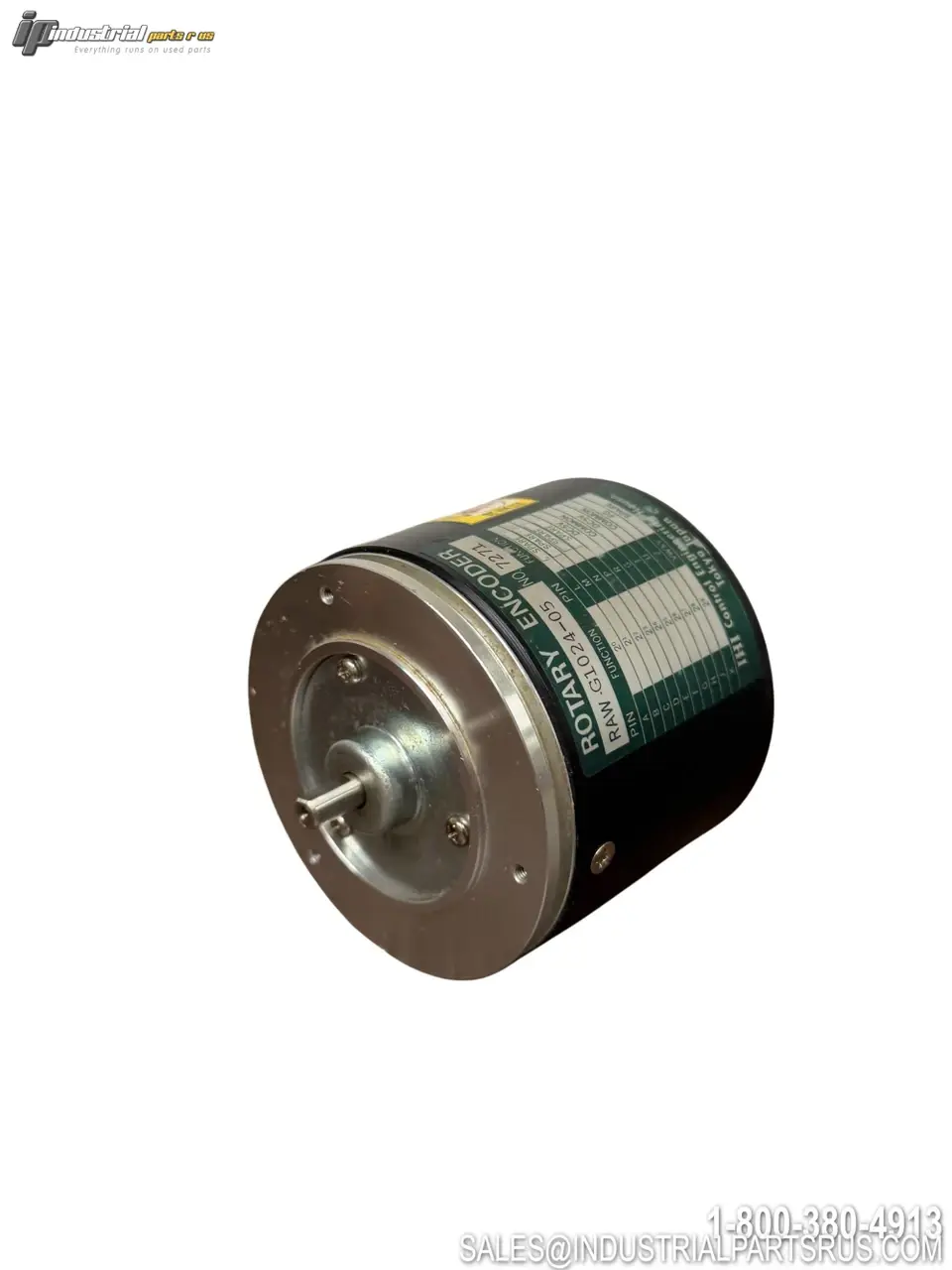

USED IHI RAW-G1024-05

The IHI Control Engineering RAW-G1024-05 is an industrial rotary encoder manufactured by IHI Control Engineering House (IHI 制御エンジニアリング), a Japanese precision instrumentation company. This optical incremental encoder provides 1024 pulses per revolution (PPR) resolution with quadrature (A/B/Z) output and Line Driver (RS-422) signal type, designed for use in industrial automation, motion control, robotics, and servo feedback applications. The part number structure decodes as: RAW-G series body, 1024 PPR resolution, and 05 denoting 5V supply voltage.
Specification
Value
Brand
IHI Control Engineering
Model / Part Number
RAW-G1024-05
Series
RAW-G
Product Type
Rotary Encoder
Encoding Type
Incremental
Sensing Technology
Optical
Pulses Per Revolution (PPR)
1024 PPR
Output Type
Line Driver (RS-422)
Contact Form
Quadrature (A/B/Z)
Supply Voltage
5V DC (indicated by -05 suffix)
Current Type
DC
Actuator Type
Shaft
Termination Type
Connector
Mounting Type
Flange Mount
Shield
Shielded
Manufacturer
IHI Control Engineering House
Origin
Japan
Application
Industrial Automation, Motion Control, Robotics, Servo Feedback
Detailed Electrical Specs
See product label / contact IHI Control Engineering for full datasheet
We warranty all items for 30 days from date of purchase.
